• Superior
    Quality of Light

    Soft glare-free light for pleasant appreciation of characterful faces and pretty objects. For relaxed communication and concentrated screen-based work. Room-filling light – like that from a floor-to-ceiling window – for intense illumination of ceilings, walls and work surfaces. Soft shadows and dynamic light create a unique experience.

  • Superior
    Quality of Light

    Soft glare-free light for pleasant appreciation of characterful faces and pretty objects. For relaxed communication and concentrated screen-based work. Room-filling light – like that from a floor-to-ceiling window – for intense illumination of ceilings, walls and work surfaces. Soft shadows and dynamic light create a unique experience.

  • Superior
    Quality of Light

    Soft glare-free light for pleasant appreciation of characterful faces and pretty objects. For relaxed communication and concentrated screen-based work. Room-filling light – like that from a floor-to-ceiling window – for intense illumination of ceilings, walls and work surfaces. Soft shadows and dynamic light create a unique experience.

  • Aesthetic
    Exciting

    The almost magical metamorphosis of the transparent optics into a light-emitting surface which bathes the room in light of unexpected fullness gives rise to aesthetic tension.

    Without any visible power supply each Lateralo Plus provides an incredible amount of light – from 6000 to 9000 lm, in two sizes:
    340 ×1176 ×14 mm and
    340×1455×14 mm.

  • Aesthetic
    Exciting

    The almost magical metamorphosis of the transparent optics into a light-emitting surface which bathes the room in light of unexpected fullness gives rise to aesthetic tension.

    Without any visible power supply each Lateralo Plus provides an incredible amount of light – from 6000 to 9000 lm, in two sizes:
    340 ×1176 ×14 mm and
    340×1455×14 mm.

  • Aesthetic
    Exciting

    The almost magical metamorphosis of the transparent optics into a light-emitting surface which bathes the room in light of unexpected fullness gives rise to aesthetic tension.

    Without any visible power supply each Lateralo Plus provides an incredible amount of light – from 6000 to 9000 lm, in two sizes:
    340 ×1176 ×14 mm and
    340×1455×14 mm.

  • Aesthetic
    Exciting

    The almost magical metamorphosis of the transparent optics into a light-emitting surface which bathes the room in light of unexpected fullness gives rise to aesthetic tension.

    Without any visible power supply each Lateralo Plus provides an incredible amount of light – from 6000 to 9000 lm, in two sizes:
    340 ×1176 ×14 mm and
    340×1455×14 mm.

  • Magical:
    First Transparency –
    Then Light

  • Magical:
    First Transparency –
    Then Light

  • Innovative Microprisms
    Further improved

    The Binary Light Guide System from TRILUX

    Lateralo Plus offers impressive, innovative and intelligent two-level networking of the latest prism technology.

  • Innovative Microprisms
    Further improved

    The Binary Light Guide System from TRILUX

    Lateralo Plus offers impressive, innovative and intelligent two-level networking of the latest prism technology.

  • Innovative Microprisms
    Further improved

    The Binary Light Guide System from TRILUX

    Lateralo Plus offers impressive, innovative and intelligent two-level networking of the latest prism technology.

  • From Function
    to poetry

    On Lateralo products the functional elements are enriched with sensual components, providing the inspiration for aesthetic experiences which lead to emotional identification with the product.

    The effect of the white or colored shining lifghtframe, which holds the optics and the LED system, turns the luminaire into a sensual object. In conjunction with the sunny homogenous light from the ultra low-profile disk, the frame projects the poetry of light into the room.

    bild 1
  • From Function
    to poetry

    On Lateralo products the functional elements are enriched with sensual components, providing the inspiration for aesthetic experiences which lead to emotional identification with the product.

    The effect of the white or colored shining lifghtframe, which holds the optics and the LED system, turns the luminaire into a sensual object. In conjunction with the sunny homogenous light from the ultra low-profile disk, the frame projects the poetry of light into the room.

    bild 1
  • Floating
    Elegance

    The precise lateral line of light at the lower edge of the profile emphasizes the sleek design of this elegant luminaire. There are no intrusive cables to distract from the aesthetics of the light-emitting surface and its minimalist structure. The Lateralo luminaire floats.

Lateralo
Plus

Ultra low-profile
LED pendant luminaire with the
highly efficient
Binary Light Guide System

Light color 840 = 4000 K
Color rendering RA >80
Other color temperatures available on request

Light frame radiant white
Other colors for the housing and light frame available on request

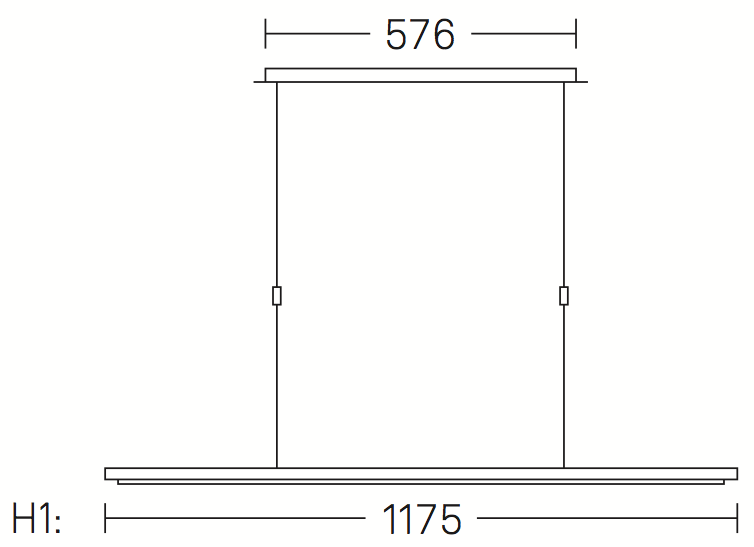

Lateralo Plus H1
338×1175×14mm

Housing colorProduct referencelmTRILUX Order Code
WhiteLateraloP H1 BLGS 6000-830 ETDD 01 *6400TOC 64 879 51
WhiteLateraloP H1 BLGS 6000-840 ETDD 01 *6400TOC 63 487 51
WhiteLateraloP H1 BLGS 7500-830 ETDD 018000TOC 64 880 51
WhiteLateraloP H1 BLGS 7500-840 ETDD 018000TOC 63 650 51
WhiteLateraloP H1 BLGS 6000-840 ETDD + AM2 01 **6400TOC 63 643 51
SilverLateraloP H1 BLGS 6000-830 ETDD 03 *6400TOC 63 636 51
SilverLateraloP H1 BLGS 6000-840 ETDD 03 *6400TOC 63 488 51
SilverLateraloP H1 BLGS 7500-830 ETDD 038000TOC 64 881 51
SilverLateraloP H1 BLGS 7500-840 ETDD 038000TOC 63 651 51

**ActiLume versions with daylight /presence sensor with visible sensor cable limited luminance L= 3000 cd/m² further ActiLume versions on request

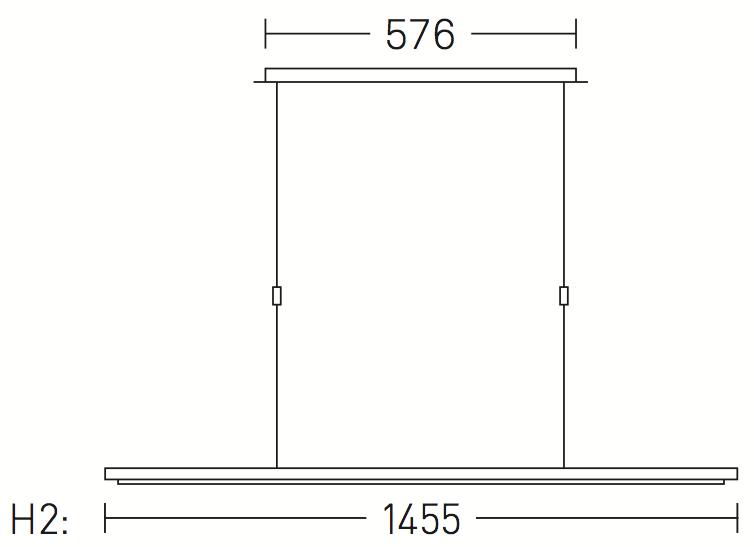

Lateralo Plus H2
338×1455×14mm

Housing colorProduct referencelmTRILUX Order Code
WhiteLateraloP H2 BLGS 7500-830 ETDD 01 *8000TOC 63 637 51
WhiteLateraloP H2 BLGS 7500-840 ETDD 01 *8000TOC 63 489 51
WhiteLateraloP H2 BLGS 9000-830 ETDD 019600TOC 64 882 51
WhiteLateraloP H2 BLGS 9000-840 ETDD 019600TOC 63 652 51
SilverLateraloP H2 BLGS 7500-830 ETDD 03 *8000TOC 63 638 51
SilverLateraloP H2 BLGS 7500-840 ETDD 03 *8000TOC 63 490 51
SilverLateraloP H2 BLGS 9000-830 ETDD 039600TOC 64 883 51
SilverLateraloP H2 BLGS 9000-840 ETDD 039600TOC 63 653 51

*Versions with limited luminance L= 3000 cd/m for VDU workstations

INSTALLATION ACCESSORIES
For H1 and H2

Product referenceDescriptionTRILUX Order Code
LateraloP CAccessories for flush mounting the ceiling rose in sawn ceilingsTOC 63 491 00
LateraloP MP M84Accessories for reinforcement of module plates in Module 625 ceilingsTOC 63 492 00
LateraloP MP M73Accessories for reinforcement of module plates in Module 600 ceilingsTOC 63 493 00

Direct / indirect distribution of light 50/50

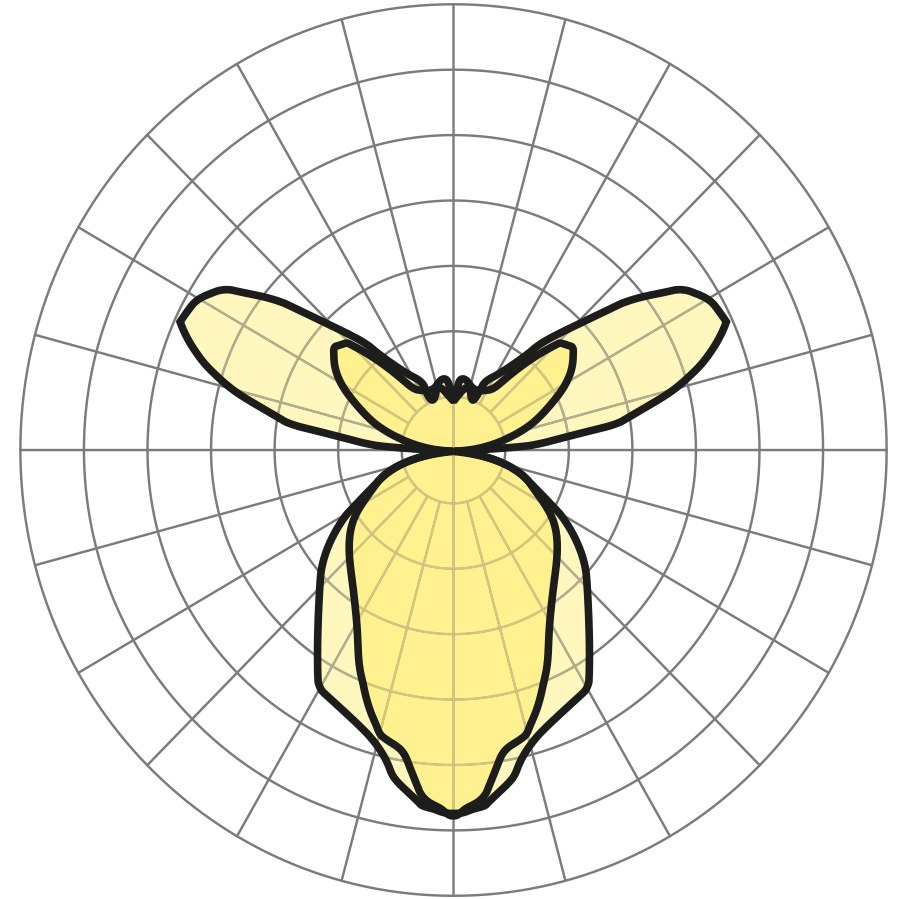

LVK LateraloP H1 LED6000-840

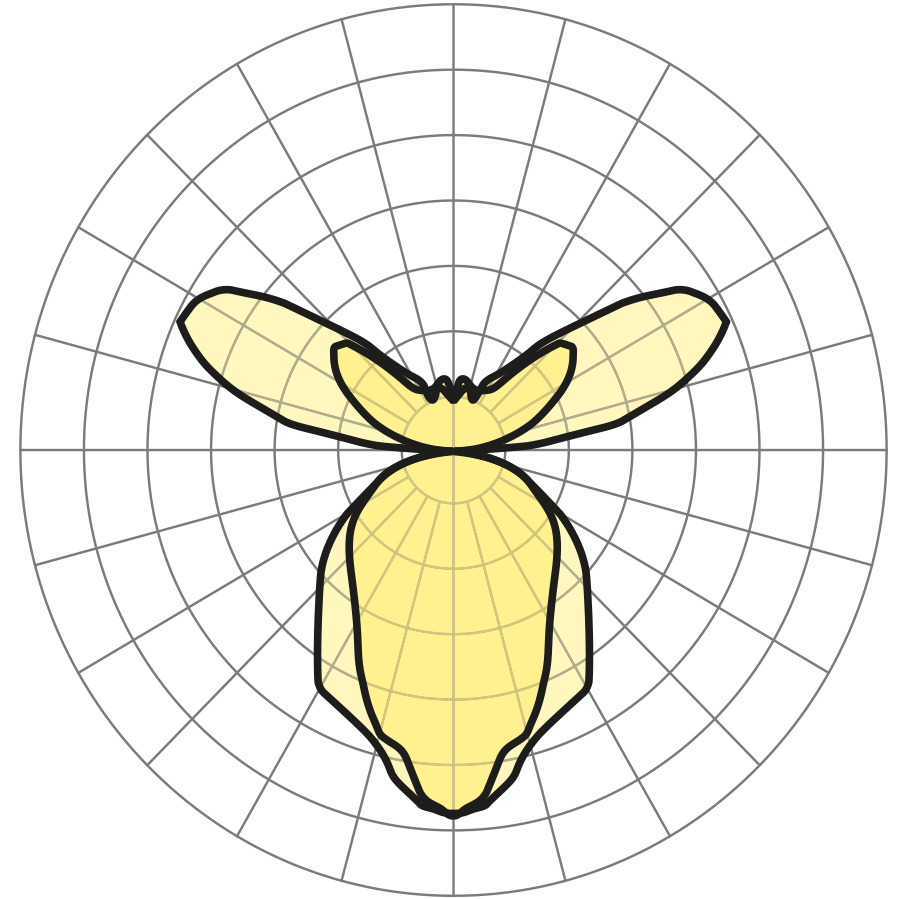

LVK LateraloP H2 LED7500-840

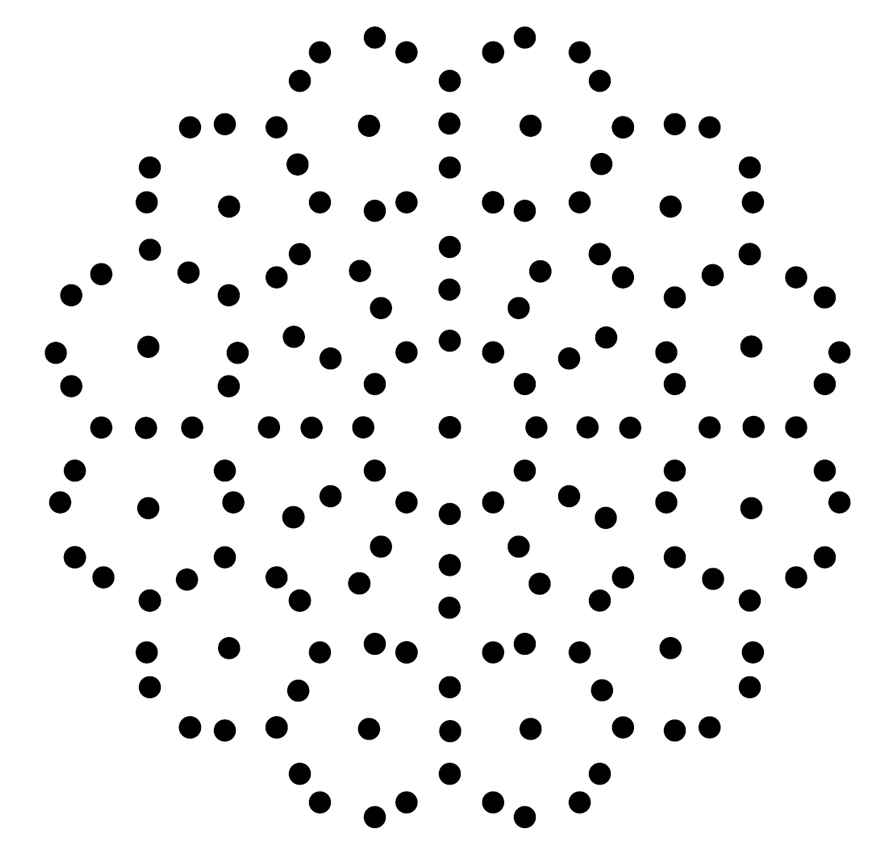

BINARY LIGHT GUIDE SYSTEM FROM TRILUX

BINARY Light Guide System®

Lateralo Plus offers impressive, innovative and intelligent two-level networking of the latest prism technology. Homogenous emission from the light surface and aesthetic dynamic light are the result of bilateral edge injection of LED light into two light guide panels with corresponding light guide points. Compared with a single emission sur- face, the light is more efficient, more intense and more capable of filling a room (>110 lm/W available luminous flux). The optimized 50/50 ratio between direct and indirect light and the balanced luminance create a comfortable atmosphere.

The indirect component allows objects and faces to appear in their best light with pleasing soft shadows. Broader than average distribution of the intense indirect light has an extraordinarily positive effect on rooms with low ceilings or where walls need to be illuminated uniformly in the vertical direction.

The pleasant soft direct light resembles that of the sun and is ideal for screen-based workstations, offering glare-free uniform and motivating light with high illuminance levels for work surfaces.

The Binary Light Guide System not only provides excellent quality of light; it also has a charming appearance all of its own. The light points on the light-emitting surface create a three-dimensional organic look.
