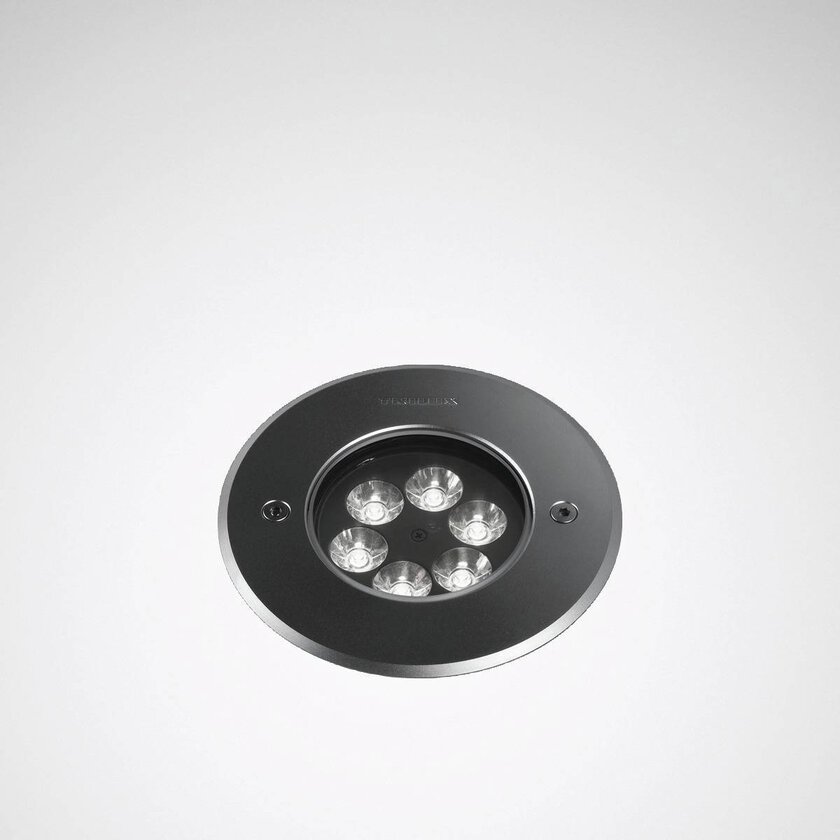

Lutera 100

8511RMS1L/800-green 1G1 ET

TOC: 6489940
Luminaire colour: RAL9005 Jet black

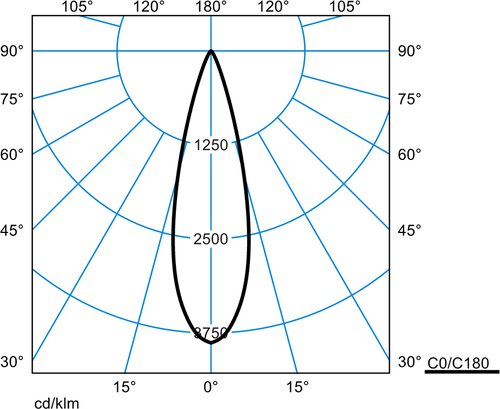

Light distribution curve: rota.asym. medium wide (RM)
Light emission: direct
Rated luminous flux: 800 lm
Connected load: 14 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 57 lm/W
Colour rendering index: > 0
Ingress Protection (IP) rating: IP68
Protection class: II

TOC: 6489940
Luminaire colour: RAL9005 Jet black
Light distribution curve: rota.asym. medium wide (RM)
Light emission: direct
Rated luminous flux: 800 lm
Connected load: 14 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 57 lm/W
Colour rendering index: > 0
Ingress Protection (IP) rating: IP68
Protection class: II
Impact resistance (IK): IK10
Hot wire resistance: 650 °C
Mounting type: Ground recessed
Installation dimensions: Ø 140 x 80 mm
Dimensions: Ø 152 x 82 mm
Weight: 1,3 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Name	Description	Weight
08510D rep.sealing 4331400	Replacement gasket.	0,1 kg	Add to watchlist Add to product comparison Downloads
08510PR Stainl steel cover circular 4331600	Stainless steel cover plate, circular.	0,4 kg	Add to watchlist Add to product comparison Downloads
08510PQ Stainl steel cover square 4331700	Stainless steel cover plate, square.	0,5 kg	Add to watchlist Add to product comparison Downloads

3 from 8 accessories
