8521RBS3L/1200-830 1G1 ET 05, 6379440

TOC 6379440
EAN 4018242316540
Luminous efficacy 75 lm/W
Luminaire luminous flux 1200 lm
Connected load 16,00 W
Colour temperature 3000 K
Degree of protection IP68
Colour black
Weight 3,8 kg
  9

Product description

Luminaire type
Ground-recessed spotlight for accent lighting, walkable and driveable.

Applications
Pedestrian zones, Arcades, Passages, Paths in parks and green areas, Residential facilities, Stairs, Access areas, Car parks, Light around the house, Accent lighting.

Mounting methods
for ground recessing. On-site, a foundation suitable for the load with adequate drainage must be ensured.

Optical system

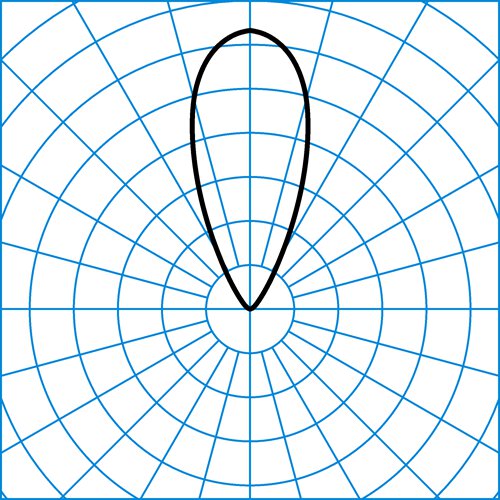

With rotationally symmetrical wide light distribution. Optical system with lamp unit rotatable through +/- 15°, lockable in 5° steps. beam angle 50°.

LED system
LED system with 9 LEDs. Luminaire luminous flux 1200 lm, connected load 16,00 W, Power Faktor λ > 0,9, luminous efficiency of luminaire 75 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Further LED light colours available on request. Mean rated service life L80(tq 25 °C) = 50,000 h.

Luminaire body
Spotlight housing and cover ring of die-cast aluminium, colour deep black, similar to RAL 9005, powder-coated. (RAL 9005). Cover ring is permanently fixed with locking screws and threaded inserts of stainless steel. Cover of 15 mm thick, hardened glass, clear. Can be rolled over at walking pace to 2000 kg. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP68, impact resistance level in accordance with IEC 62262: IK10. Weight: 3,8 kg.

Electrical connection
Wired ready for connection. With connection cable fed outwards, sealed with appropriate protection rating. Inner connection compartment sealed with epoxy resin.

Electrical version
With electronic transformer, switchable. The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). (ACmin= , ACmax= 264 V). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.

Application note:
The ground-recessed spotlight must be completed with a round or square stainless steel cover plate.
Please order ground recessing bowl separately as accessory.

On request and for an additional charge the luminaire is also available as an ETDD version (digitally dimmable, DALI).

TOC 6379440

Tender

Tender text with leading brand

8521RBS3L/1200-830 1G1 ET 05
Ground-recessed spotlight for accent lighting, walkable and driveable. for ground recessing. On-site, a foundation suitable for the load with adequate drainage must be ensured. With rotationally symmetrical wide light distribution. Optical system with lamp unit rotatable through +/- 15°, lockable in 5° steps. beam angle 50°. LED system with 9 LEDs. Luminaire luminous flux 1200 lm, connected load 16,00 W, luminous efficiency of luminaire 75 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Further LED light colours available on request. Mean rated service life L80(tq 25 °C) = 50,000 h. Spotlight housing and cover ring of die-cast aluminium, colour deep black, similar to RAL 9005, powder-coated. (RAL 9005). Cover ring is permanently fixed with locking screws and threaded inserts of stainless steel. Cover of 15 mm thick, hardened glass, clear. Can be rolled over at walking pace to 2000 kg. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP68, impact resistance level in accordance with IEC 62262: IK10. Weight: 3,8 kg. Wired ready for connection. With connection cable fed outwards, sealed with appropriate protection rating. Inner connection compartment sealed with epoxy resin. With electronic transformer, switchable. The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). (ACmin= , ACmax= 264 V). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
TRILUX Order code 6379440

Copy text



Tender text without leading brand

Ground-recessed spotlight for accent lighting, walkable and driveable.
for ground recessing.
Optical system: LED lenses
Beam angle: narrow-wide
Distribution geometry: symmetric
Luminous intensity distribution: direct
Reflector material: Non-laminated safety glass, PMMA
Mounting location: Outdoor floor with cut-out opening
Suitable for 230V/DC DC voltage
Mean rated service life L80(tq 25 °C) = 50,000 h.
Rated luminous flux: 1200 lm
Power Faktor λ > 0,9,
Colour rendering index: Ra > 80
Light colour: warm white
Colour temperature: 3000 K
Colour locus tolerance (initial MacAdam) ≤ 3 SDCM
Cover ring is permanently fixed with locking screws and threaded inserts of stainless steel. Cover of 15 mm thick, hardened glass, clear. Can be rolled over at walking pace to 2000 kg.
IP rating (DIN EN 60529): IP68
Weight: 3.8 kg.
