Acuro

Acuro LED1000ww ET 01

TOC: 6064140
Luminaire colour: RAL9016 Traffic white
Light distribution curve: Lambertian (L)
Light emission: direct / indirect
Rated luminous flux: 950 lm
Connected load: 8 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 119 lm/W
Colour temperature: 3000 K
Colour rendering index: > 80
Glare limitation: 21 UGR_C0
16.6 UGR_C90

TOC: 6064140
Luminaire colour: RAL9016 Traffic white
Light distribution curve: Lambertian (L)
Light emission: direct / indirect
Rated luminous flux: 950 lm
Connected load: 8 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 119 lm/W
Colour temperature: 3000 K
Colour rendering index: > 80
Glare limitation: 21 UGR_C0
16.6 UGR_C90
Ingress Protection (IP) rating: IP40
Protection rating of lamp compartment: -
Protection rating on room side: IP40
Protection class: I
Impact resistance (IK): IK02
Hot wire resistance: 650 °C
Shape: rectangular
Mounting type: Surface-mounting

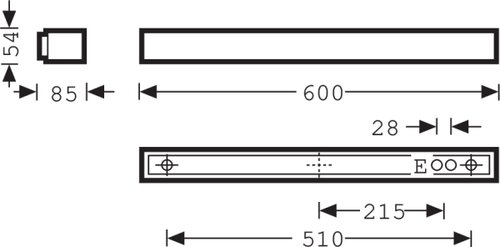

Dimensions: 600 x 54 x 85 mm
Weight: 1,4 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

End caps

Name	Description	Weight
Acuro ZKS 04 6049400	End caps of plastic, chromed Tool-free mounting. 1 pair.	0,096 kg	Add to watchlist Add to product comparison Downloads
