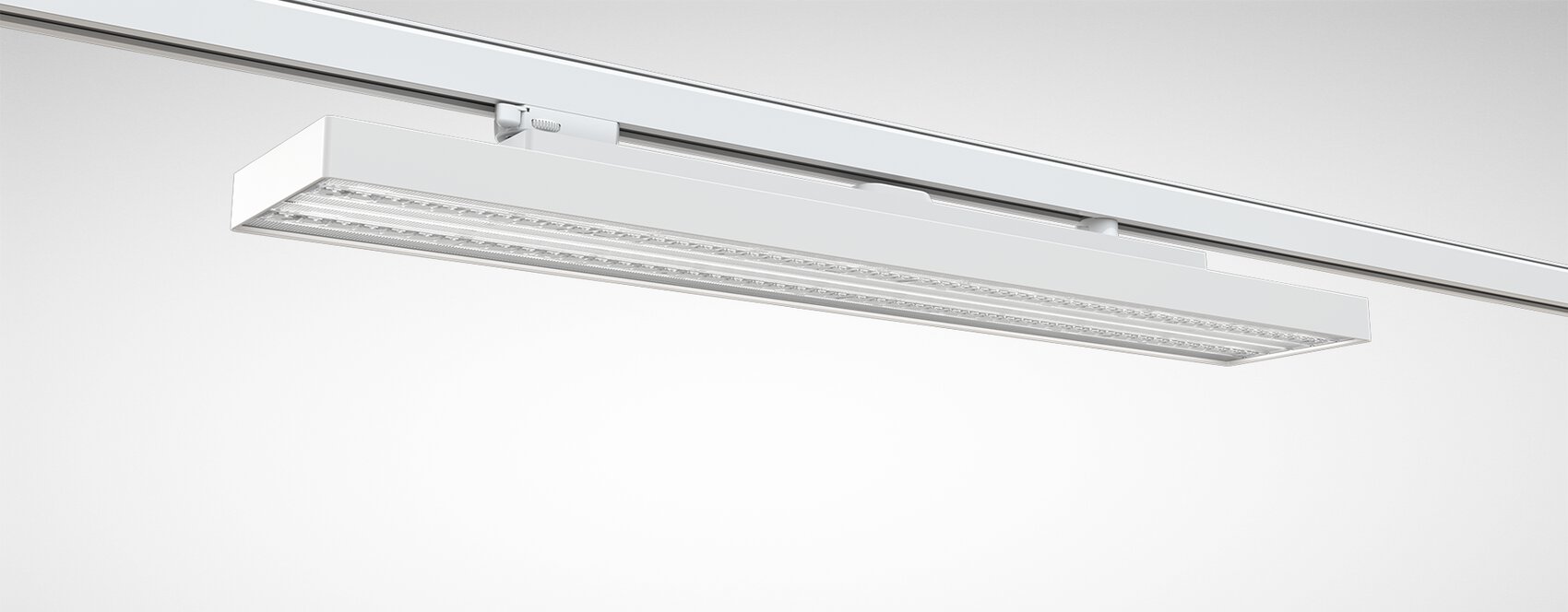

Lightpanel

Configurable

The new Lightpanel: Maximum efficiency in a simple design

Configure now

Whether for general lighting, merchandise or aisles, the latest version of the familiar lighting tool is more than ever an alternative to classic trunking and ideal for open, transparent architectures. The Lightpanel, with a discreet design and wide range of variants, achieves up to 170 lm/W. Thanks to the latest optics and state of the art LED technology the Lightpanel provides uniform general or vertical shelf lighting.

Experience the Lightpanel series

Configure your product

Name	Rated luminous flux	Connected load	Colour temperature	Luminous efficacy	Light distribution
LPNT 3P2 L-DAW 65-830 N02 ET 01 9842940	6110 lm	37 W	3000 K	165 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 65-830 N02 ET 05 9843140	6110 lm	37 W	3000 K	165 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 65-840 N04 ET 01 9843340	6600 lm	37 W	4000 K	178 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 65-840 N04 ET 05 9843540	6600 lm	37 W	4000 K	178 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 65-930 M70 ET 01 9843740	6160 lm	46 W	3000 K	134 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 65-930 M70 ET 05 9843940	6160 lm	46 W	3000 K	134 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 65-940 N15 ET 01 9844140	6555 lm	41 W	4000 K	160 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 65-940 N15 ET 05 9844340	6555 lm	41 W	4000 K	160 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-830 N02 ET 01 9844540	7520 lm	45 W	3000 K	167 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-830 N02 ET 05 9844740	7520 lm	45 W	3000 K	167 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-830 N02 ETBLE 01 9848163	7520 lm	45 W	3000 K	167 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-830 N02 ETBLE 05 9848363	7520 lm	45 W	3000 K	167 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-830 N02 ETDD 05 9846351	7520 lm	45 W	3000 K	167 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-840 N04 ET 01 9844940	8125 lm	45 W	4000 K	181 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-840 N04 ET 05 9845140	8125 lm	45 W	4000 K	181 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-840 N04 ETBLE 01 9848563	8125 lm	45 W	4000 K	181 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-840 N04 ETBLE 05 9848763	8125 lm	45 W	4000 K	181 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-840 N04 ETDD 05 9846751	8125 lm	45 W	4000 K	181 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-930 M70 ET 01 9845340	7590 lm	59 W	3000 K	129 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-930 M70 ET 05 9845540	7590 lm	59 W	3000 K	129 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-930 M70 ETBLE 01 9848963	7590 lm	59 W	3000 K	129 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-930 M70 ETBLE 05 9849163	7590 lm	59 W	3000 K	129 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-930 M70 ETDD 05 9847151	7590 lm	59 W	3000 K	129 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-940 N15 ET 01 9845740	8080 lm	51 W	4000 K	158 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
LPNT 3P2 L-DAW 80-940 N15 ET 05 9845940	8080 lm	51 W	4000 K	158 lm/W	direct/double asymmetric/double asymmetric	Add to watchlistAdd to product comparisonDownloads
