Lightpanel NT

LPNT 3P2 L-DAW 80-830 M71 ETBLE 01

TOC: 9848163
Luminaire colour: RAL9016 Traffic white

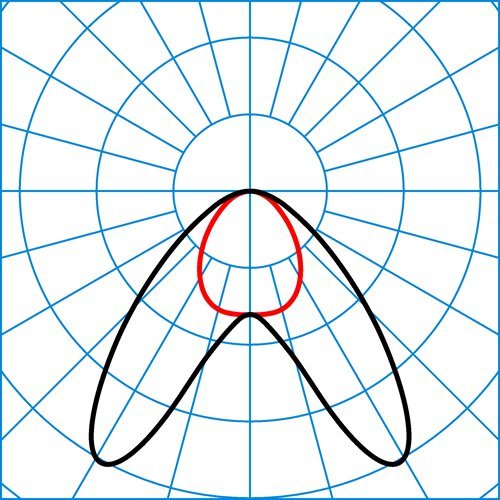

Light distribution curve: Double asymmetric Wide (DAW)
Light emission: direct
Rated luminous flux: 7605 lm
Connected load: 48 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 158 lm/W
Colour temperature: 3000 K
Colour rendering index: > 80
Glare limitation: 26.2 UGR_C0
24 UGR_C90

TOC: 9848163
Luminaire colour: RAL9016 Traffic white
Light distribution curve: Double asymmetric Wide (DAW)
Light emission: direct
Rated luminous flux: 7605 lm
Connected load: 48 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 158 lm/W
Colour temperature: 3000 K
Colour rendering index: > 80
Glare limitation: 26.2 UGR_C0
24 UGR_C90
Ingress Protection (IP) rating: IP20
Protection rating on room side: IP20
Protection class: I
Impact resistance (IK): IK00
Hot wire resistance: 650 °C
Shape: rectangular
Dimensions: 741 x 129 x 68 mm
Weight: 2,1 kg
Emergency light available: No
Light management system: Casambi
