Publisca P1

Publisca P1W-RBT/2600-740 3G1S ETDD

TOC: 6850351
Luminaire colour: DB703 micaceous iron oxide

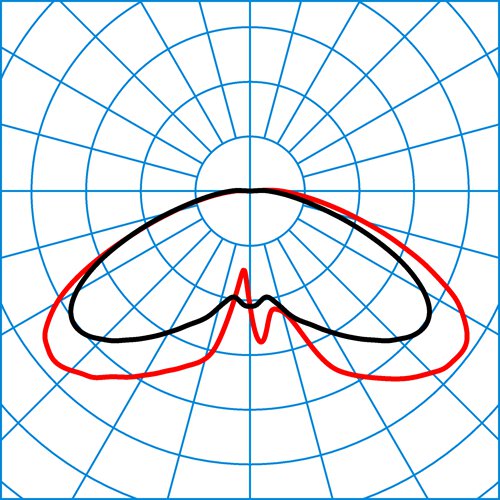

Light distribution curve: rotationally sym. wide (RB6L)
Light emission: direct
Rated luminous flux: 2600 lm
Connected load: 24 - 25 W
Service life: LCLO (35 °C) = 100,000 h
Luminous efficacy: 108 - 104 lm/W
Colour temperature: 4000 K
Colour rendering index: > 70
Protection rating of lamp compartment: IP66

TOC: 6850351
Luminaire colour: DB703 micaceous iron oxide
Light distribution curve: rotationally sym. wide (RB6L)
Light emission: direct
Rated luminous flux: 2600 lm
Connected load: 24 - 25 W
Service life: LCLO (35 °C) = 100,000 h
Luminous efficacy: 108 - 104 lm/W
Colour temperature: 4000 K
Colour rendering index: > 70
Protection rating of lamp compartment: IP66
Protection rating: IP23
Protection class: II
Impact resistance (IK): IK08
Hot wire resistance: 960 °C
Shape: around
Mounting type: Mounting bracket
Dimensions: 496 x 380 x 571 mm
Weight: 8,6 kg
Emergency light available: No
Mounting height H1: 5000 mm
Surface treatment: Powder coating
Material housing: Aluminium

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Name	Description	Weight
0970/60 Reduction Piece 2223400	Reduction piece of stainless steel. Post spigot Ø 60 mm.	0,102 kg	Add to watchlist Add to product comparison Downloads
MLT ZAH p4 6818500	Rear shielding for MLT IQ lens systems.	0,005 kg	Add to watchlist Add to product comparison Downloads
Publisca ZP1D D580 26 6738300	Canopy for outdoor luminaire Publisca P1, Ø 580 mm.	1,96 kg	Add to watchlist Add to product comparison Downloads

3 from 4 accessories
