Ondo

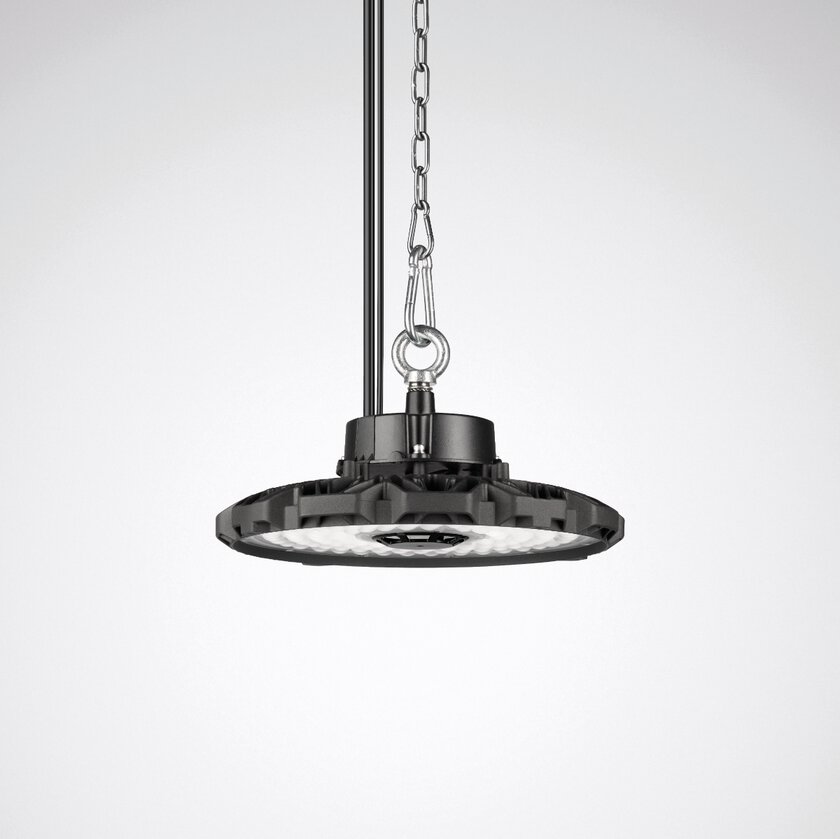

Ondo G3 LW 30000-840 ETDD

TOC: 8427351
Luminaire colour: RAL9005 Jet black
Light distribution curve: Wide (W)
Light emission: direct
Rated luminous flux: 30000 lm
Connected load: 200 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 150 lm/W
Colour temperature: 4000 K
Colour rendering index: > 80
Glare limitation: 26.3 UGR_C0
26.3 UGR_C90

TOC: 8427351
Luminaire colour: RAL9005 Jet black
Light distribution curve: Wide (W)
Light emission: direct
Rated luminous flux: 30000 lm
Connected load: 200 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 150 lm/W
Colour temperature: 4000 K
Colour rendering index: > 80
Glare limitation: 26.3 UGR_C0
26.3 UGR_C90
Protection rating: IP65
Protection class: I
Impact resistance (IK): IK08
Hot wire resistance: 650 °C

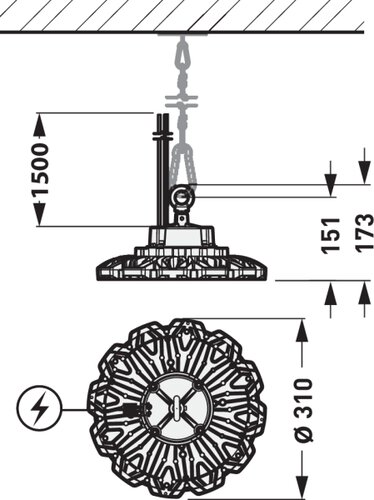

Dimensions: Ø 310 x 173 mm
Weight: 1,9 kg
Emergency light available: No
Material housing: Aluminium

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

This product is eligible for subsidy

For more information, please contact TRILUX support at Middleeast@trilux.com
No responsibility is taken for the correctness of this information. The applicant is responsible for verifying compliance with the requirements of the funding program.

BMWK - BEG (GER)
CEE BAT-EQ-127 (FR)

Lighting technology

Select light distribution

Light calculator

No downloads available for this product

Ondo G3 LW 30000-840 ETDD

TOC

8427351

Luminaire colour

RAL9005 Jet black

Light distribution curve

Wide (W)

Light emission

direct

Rated luminous flux

30000 lm

Connected load

200 W

Service life

L80 (25 °C) = 50,000 h

Luminous efficacy

150 lm/W

Colour temperature

4000 K

Colour rendering index

> 80

Glare limitation

26.3 UGR_C0
26.3 UGR_C90

TOC: 8427351
Luminaire colour: RAL9005 Jet black
Light distribution curve: Wide (W)
Light emission: direct
Rated luminous flux: 30000 lm
Connected load: 200 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 150 lm/W
Colour temperature: 4000 K
Colour rendering index: > 80
Glare limitation: 26.3 UGR_C0
26.3 UGR_C90
Protection rating: IP65
Protection class: I
Impact resistance (IK): IK08
Hot wire resistance: 650 °C
Dimensions: Ø 310 x 173 mm
Weight: 1,9 kg
Emergency light available: No
Material housing: Aluminium

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

This product is eligible for subsidy

BMWK - BEG (GER)
CEE BAT-EQ-127 (FR)

Accessories list

Link chains

Name	Description	Weight
E04 Kette glzvz (20m) 2343400	Chain bright zinc-plated (20 m).	4,48 kg	Add to watchlistAdd to product comparisonDownloads

Fixing accessories

Name	Description	Weight
Z1DP 3K 6588700	Ceiling fixing plate with 3 spring hooks.	0,311 kg	Add to watchlistAdd to product comparisonDownloads
