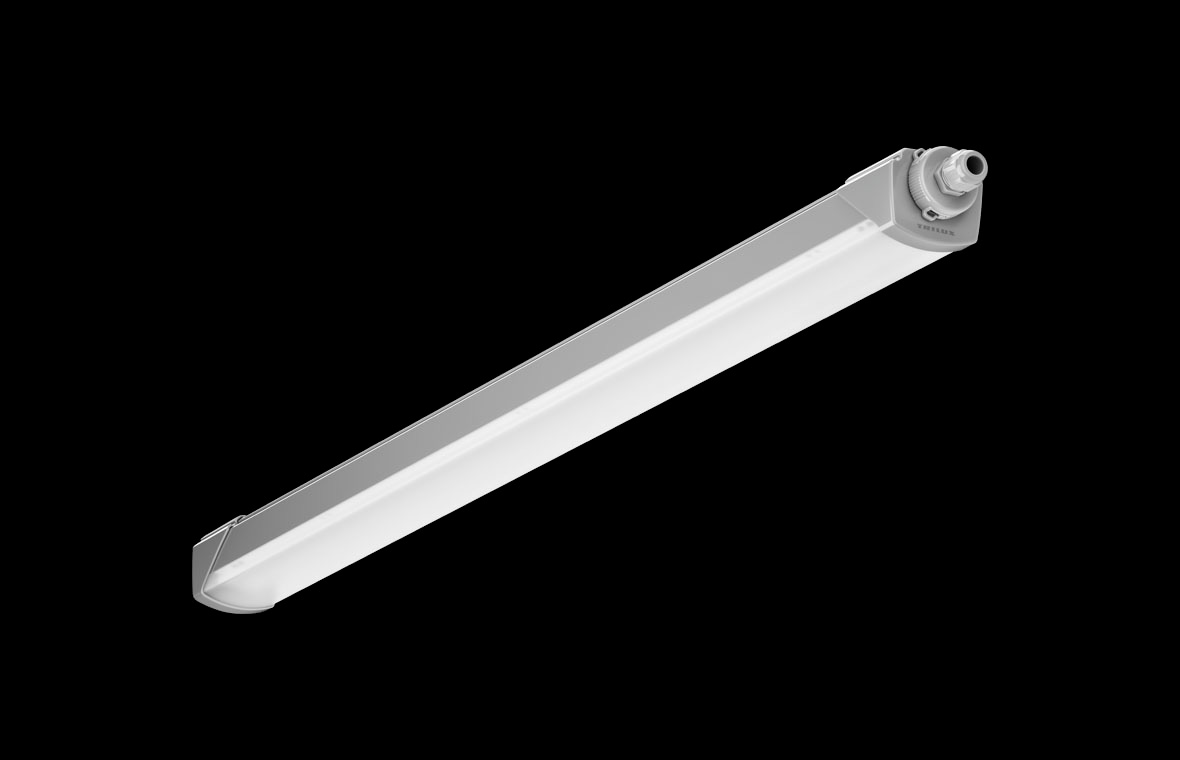

Deveo Fit LED

A robust weather-proof entry-level LED luminaire

The challenge

  1. economic criteria
  2. increasing demands in the entry-level segment
  3. application areas with gaseous or solvent-containing atmospheres

The solution

  1. easy and quick installation and exchangeability of many conventional weatherproof luminaires
  2. basic solution with low investment and operating costs
  3. gas-proof solution for challenging areas

Advantages during installation

Rapid installation

Whether with new installations or refurbishments, the luminaire is flexibly and quickly mounted thanks to slidable mounting clips. Installation effort is also reduced thanks to the intuitively convenient rapid connection system with comfortable bayonet connection. Several Deveo Fit LED luminaires can be connected in series with the version with integrated through-wiring.

An ideal refurbishment solution

With its slidable mounting clips Deveo Fit LED can be individually modified to existing fixing points, making the luminaire a time-saving and cost-saving 1:1 LED refurbishment solution for the most common, conventional weather-proof luminaires. This flexibility is extended because the luminaire is suitable for wall, ceiling and suspended mounting.

A reliable weather-proof luminaire for those new to LED

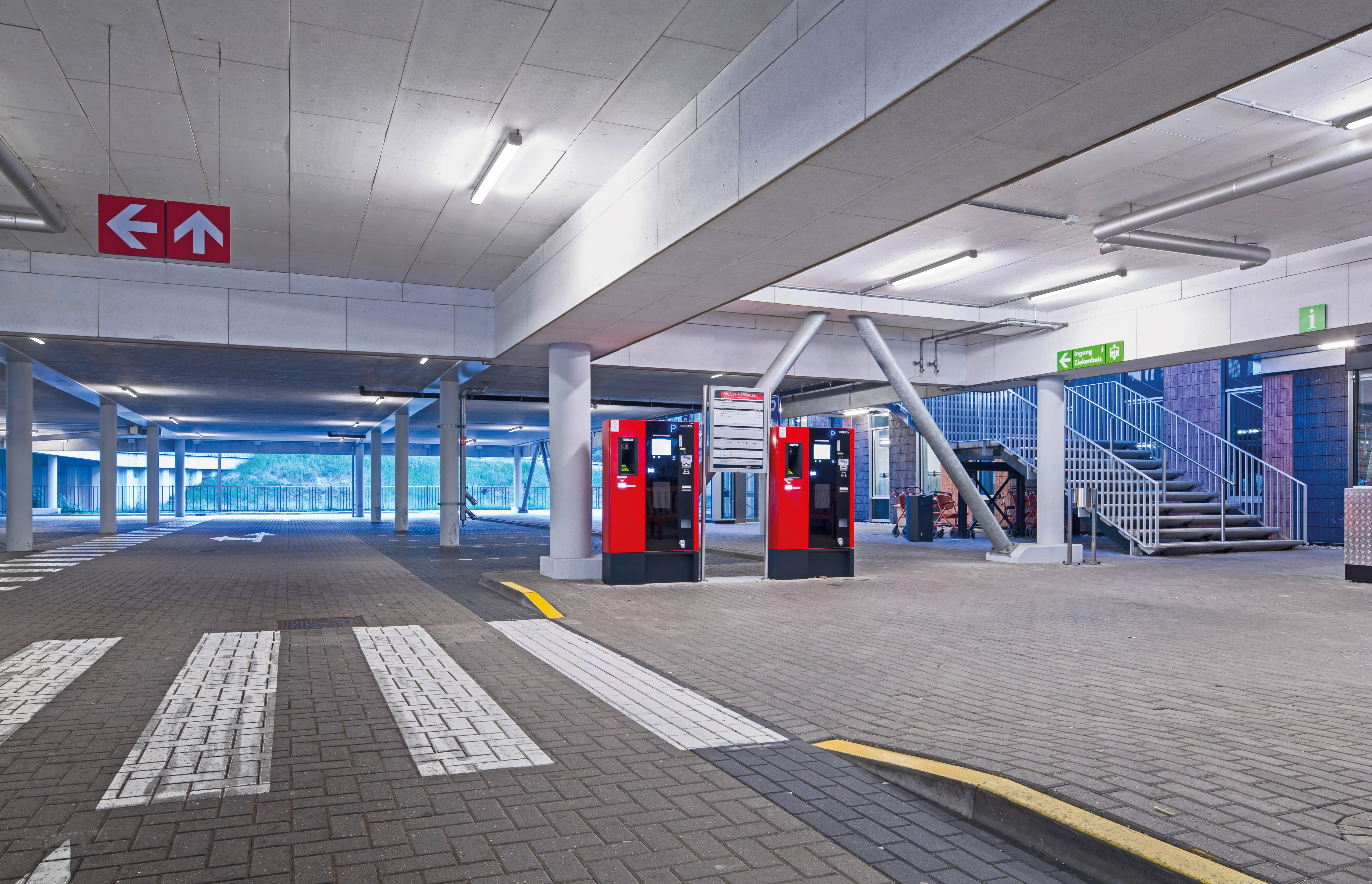

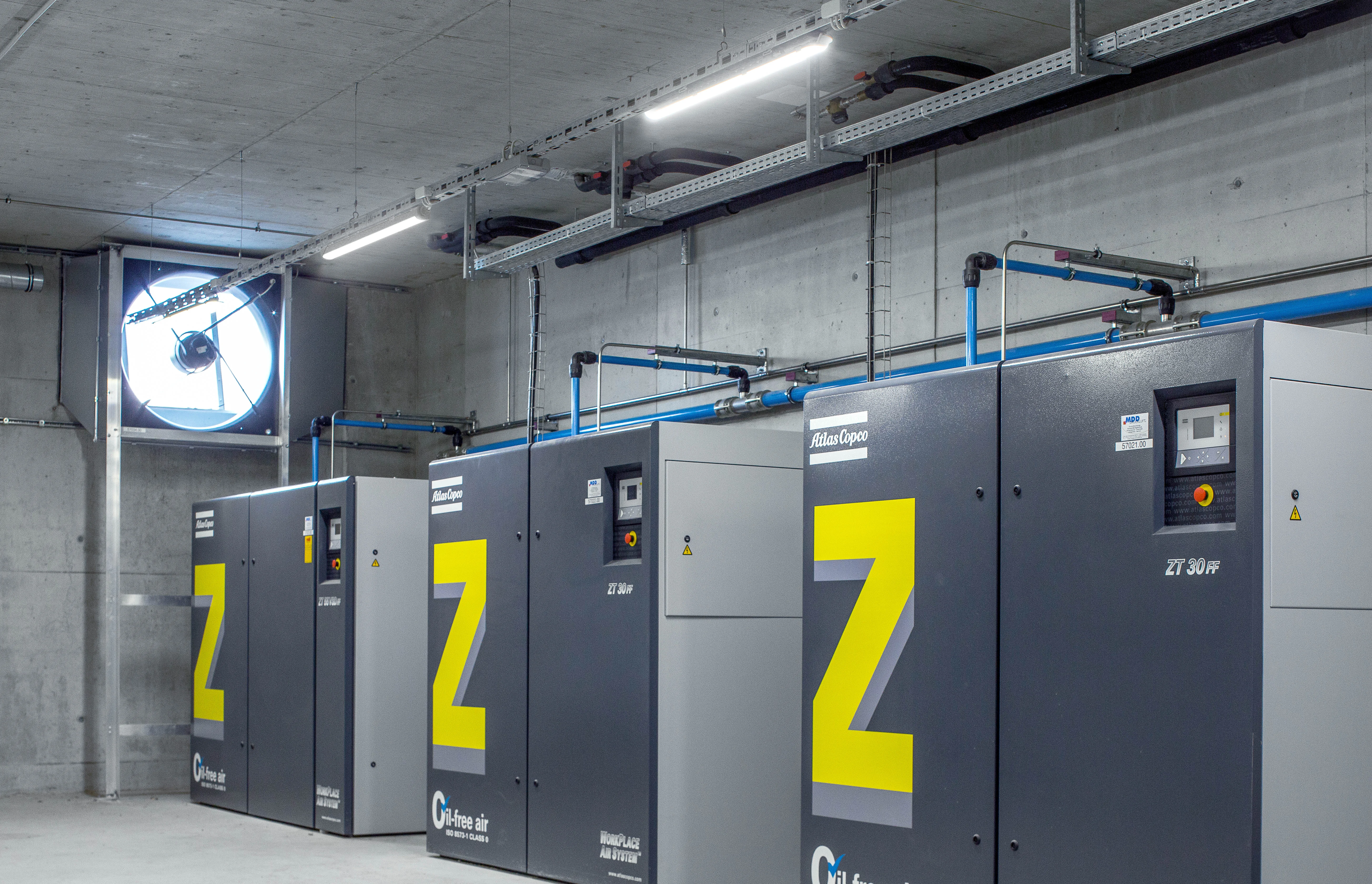

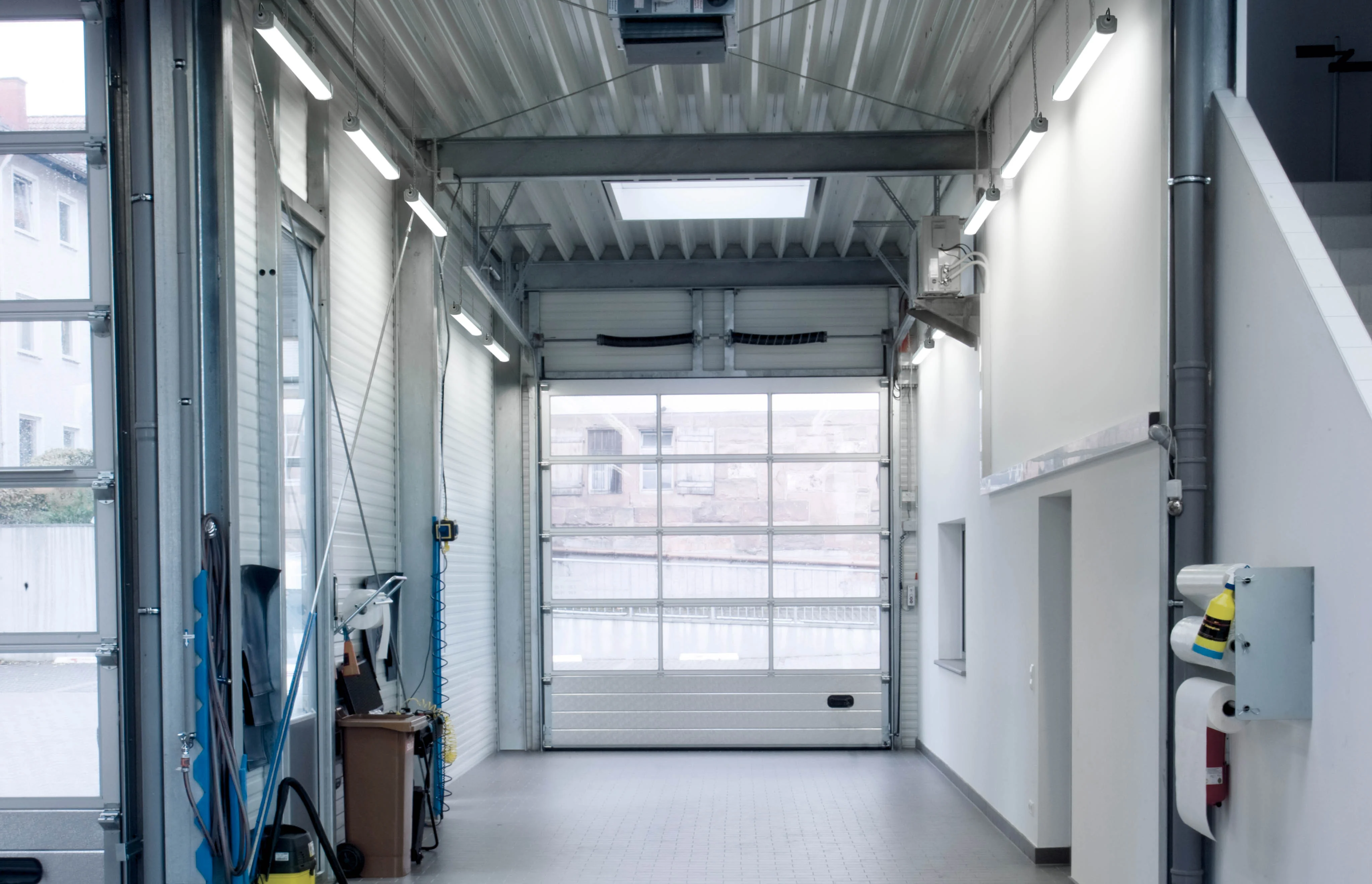

The Deveo Fit LED weather-proof luminaire is an ideal luminaire for basic requirements: it scores points with a balanced price/performance ratio, is simply installed saving time and is made of robust, reliable materials. Whether in car parks, production areas or canopied outdoor areas – Deveo Fit LED provides reliable and efficient light in all situations.

Advantages in operation

Rapid payback

Deveo Fit LED features a balanced price/performance ratio: with energy efficiency of up to 115 lm/W it significantly reduces operating costs compared to conventional lighting solutions by up to 60 percent. This means the low purchase costs are paid back rapidly. As such, Deveo Fit LED is the ideal luminaire for those new to LED.

A reliable, robust lighting solution

The robust weather-proof luminaire is made of single-part extrusion profile consisting of impact-resistant, UV-stable polycarbonate with sealed end caps and IP66 protection. This enables the luminaire to withstand especially dusty and humid conditions, providing optimum illumination in the long run.

Gas-proof variants for special applications

The gas-proof versions of the Deveo Fit LED are the ideal solution for areas where fumes, gases or solvents are challenging the lighting system. The extrusion profile made of PMMA is sealed with the optics and thus withstands a wide range of chemical influences in industry and factory farming.

Quality made in europe

The Deveo Fit LED convinces with proven TRILUX product quality. The moisture-proof luminaire is manufactured at the Spanish TRILUX site in Zaragoza.

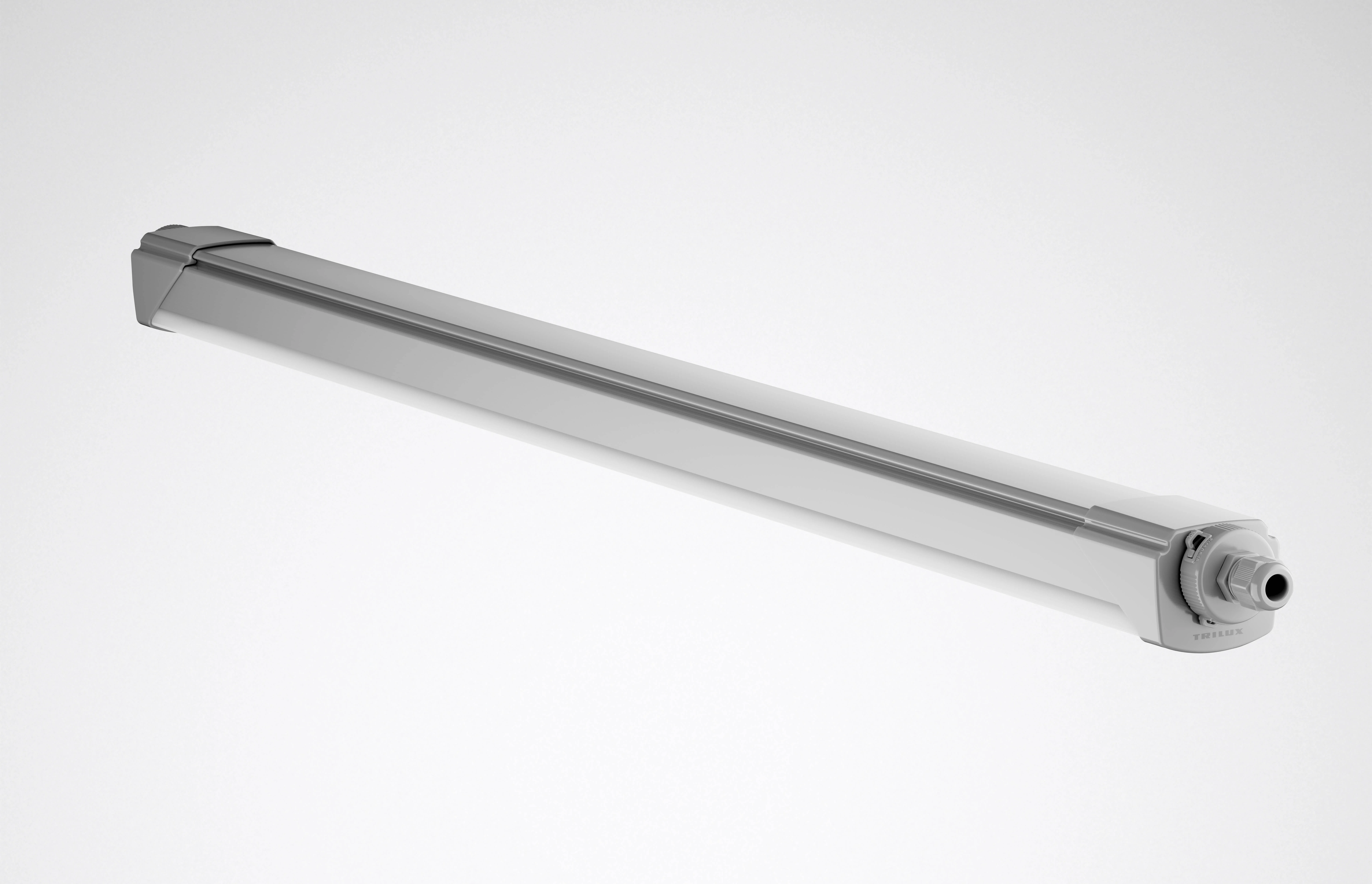

The single-part extruded profile of impact-resistant, UV-stable polycarbonate makes the Deveo Fit LED a robust lighting solution.

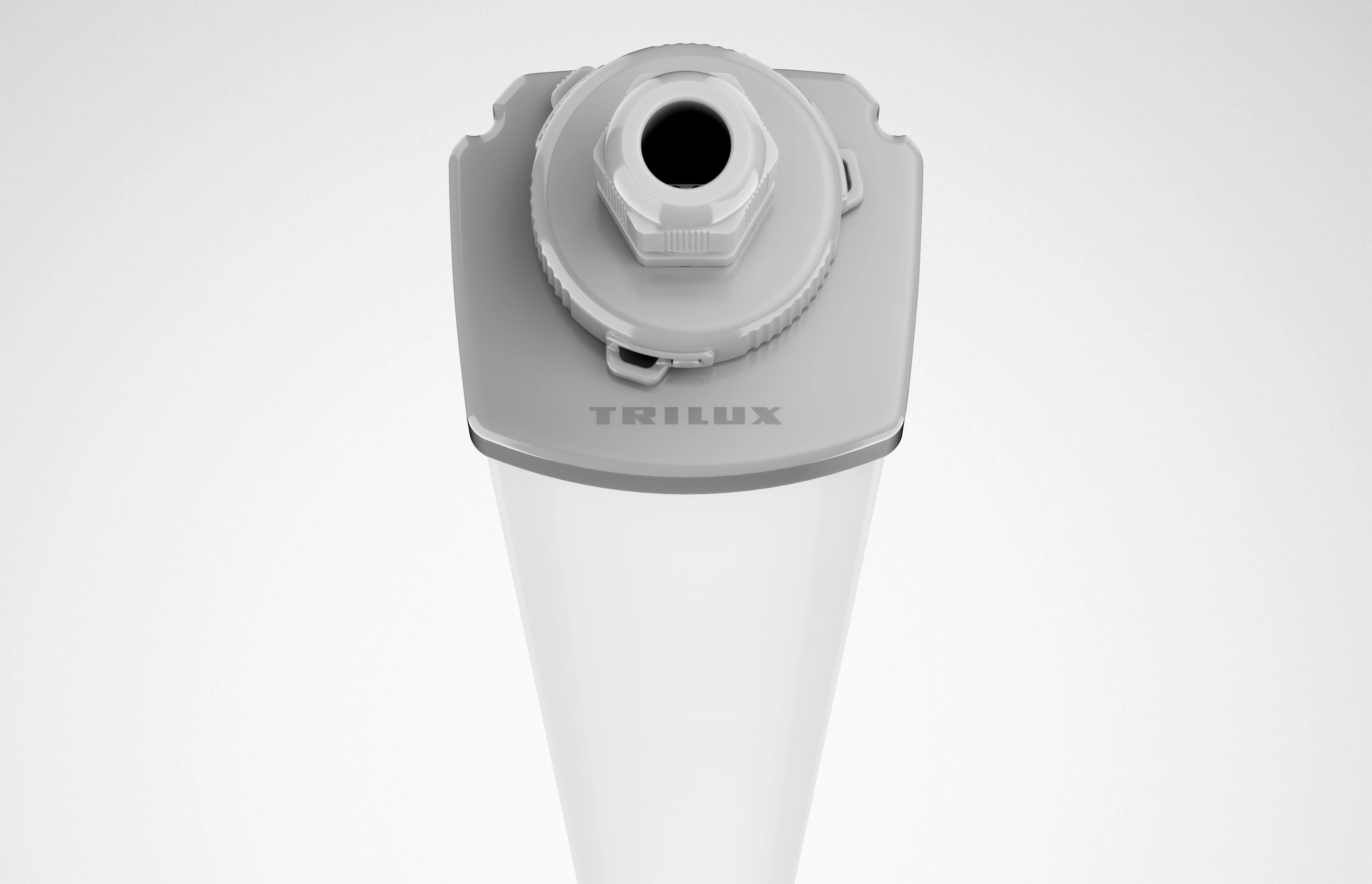

Quick and simple installation is enabled thanks to slidable mounting clips, an intuitive rapid connection system and integrated through-wiring. A common range of applications is possible thanks to three mounting options, three lumen packages and three selectable lengths.

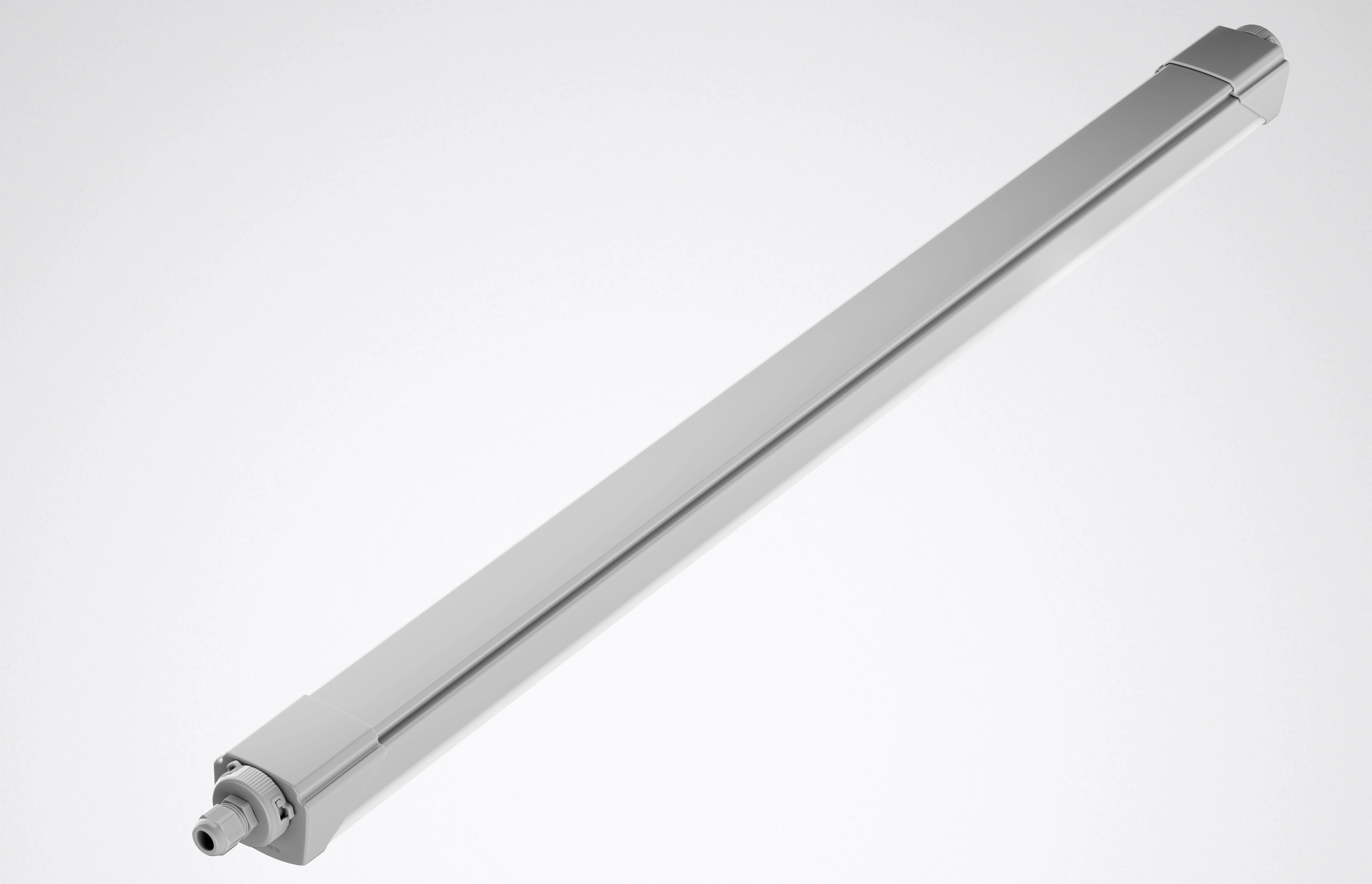

PMMA-variants for application areas with atmospheres with gases and fumes.

Technical features

Energy efficiency to 115 lm/W
Lumen packages from 2,100 to 6,000 lumens
Service life 50,000 h of tg 25 ˚C
Lengths 600, 1,200 and 1.,00 mm
Installation Slidable mounting clips, integrated through-wiring and intuitive rapid connection system with comfortable bayonet connection
Materials Single-part extruded profile of impact-resistant, UV-stable polycarbonate, gas-proof versions for areas with ammonia or sulphur-containing atmospheres
Protection rating IP66
