9301K

9301K AB2L-LR/3500-730 4G1S ET

TOC: 6908540
Luminaire colour: RAL9005 Jet black

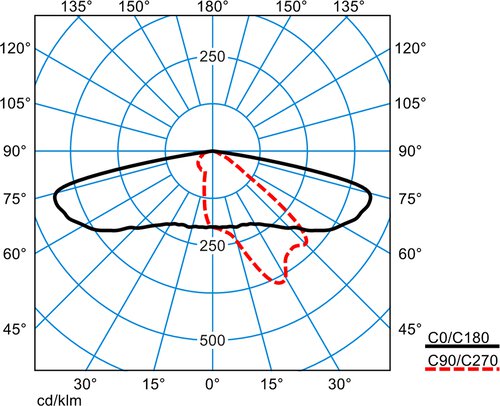

Light distribution curve: asymmetric wide (AB2L)
Light emission: direct
Rated luminous flux: 3500 lm
Connected load: 29 - 30 W
Service life: L80 (25 °C) = 100,000 h
Luminous efficacy: 121 - 117 lm/W
Colour temperature: 3000 K
Colour rendering index: > 70
Ingress Protection (IP) rating: IP23

TOC: 6908540
Luminaire colour: RAL9005 Jet black
Light distribution curve: asymmetric wide (AB2L)
Light emission: direct
Rated luminous flux: 3500 lm
Connected load: 29 - 30 W
Service life: L80 (25 °C) = 100,000 h
Luminous efficacy: 121 - 117 lm/W
Colour temperature: 3000 K
Colour rendering index: > 70
Ingress Protection (IP) rating: IP23
Protection class: II
Impact resistance (IK): IK10
Hot wire resistance: 0 °C
Mounting type: Mounting bracket
Dimensions: Ø 604 x 325 mm
Weight: 4,8 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

This product is eligible for subsidy

For more information, please contact TRILUX support at morawski@trilux.com.pl
No responsibility is taken for the correctness of this information. The applicant is responsible for verifying compliance with the requirements of the funding program.

CEE BAT-EQ-127 (FR)

Accessories list

Name	Description	Weight
09300K/2/76-II 6020500	Twin arm bracket.	9,2 kg	Add to watchlist Add to product comparison Downloads
09300K-WB 6020600	Wall mounting for post-top luminaire 9301K···.	6,225 kg	Add to watchlist Add to product comparison Downloads
09300K/1/76 fstr 6020400	Single mounting bracket.	5,9 kg	Add to watchlist Add to product comparison Downloads

3 from 6 accessories
