985

9851 AB2L/3200-730 4G1S ET

TOC: 6724440
Luminaire colour: RAL9005 Jet black

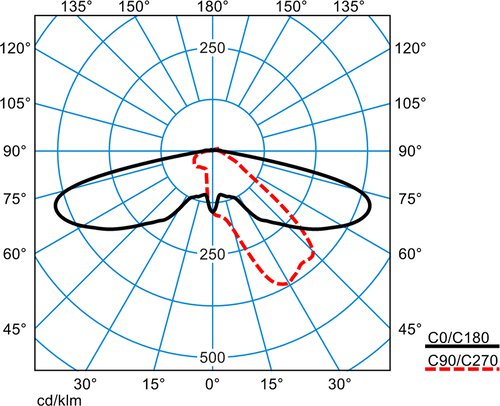

Light distribution curve: asymmetric wide (AB2L)
Light emission: direct
Rated luminous flux: 3200 lm
Connected load: 26 - 27 W
Service life: LCLO (25 °C) = 100,000 h
Luminous efficacy: 123 - 119 lm/W
Colour temperature: 3000 K
Colour rendering index: > 70
Ingress Protection (IP) rating: IP23

TOC: 6724440
Luminaire colour: RAL9005 Jet black
Light distribution curve: asymmetric wide (AB2L)
Light emission: direct
Rated luminous flux: 3200 lm
Connected load: 26 - 27 W
Service life: LCLO (25 °C) = 100,000 h
Luminous efficacy: 123 - 119 lm/W
Colour temperature: 3000 K
Colour rendering index: > 70
Ingress Protection (IP) rating: IP23
Protection class: II
Impact resistance (IK): IK04
Hot wire resistance: 0 °C
Mounting type: Mounting bracket

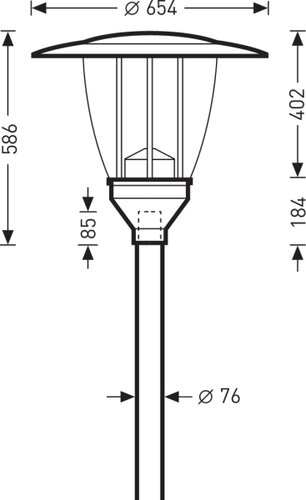

Dimensions: Ø 654 x 586 mm
Weight: 11,3 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Name	Description	Weight
09800EB Release Bracket 2223800	Release bracket for 98-series luminaires.	0,045 kg	Add to watchlist Add to product comparison Downloads
09800/2/76-II Pole Bracket f 2Luminaires 2223600	Twin arm bracket. Outer colour deep black, similar to RAL 9005.	14 kg	Add to watchlist Add to product comparison Downloads
09800/3/76-II post-top 2223700	Triple mast mounting element. Outer colour deep black, similar to RAL 9005.	20,3 kg	Add to watchlist Add to product comparison Downloads

3 from 9 accessories
