Altigo

Altigo G2 120 WO RB17L/3800-830 1G1P

TOC: 6972850
Luminaire colour: DB703 micaceous iron oxide

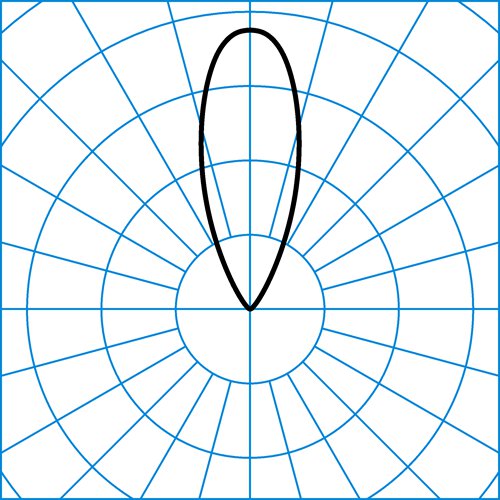

Light distribution curve: rotationally sym. wide (RB)
Light emission: direct
Rated luminous flux: 3800 lm
Connected load: 36 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 106 lm/W
Colour temperature: 3000 K
Colour rendering index: > 80
Ingress Protection (IP) rating: IP67

TOC: 6972850
Luminaire colour: DB703 micaceous iron oxide
Light distribution curve: rotationally sym. wide (RB)
Light emission: direct
Rated luminous flux: 3800 lm
Connected load: 36 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 106 lm/W
Colour temperature: 3000 K
Colour rendering index: > 80
Ingress Protection (IP) rating: IP67
Protection class: III
Impact resistance (IK): IK05
Hot wire resistance: 650 °C
Shape: rectangular
Mounting type: Ground recessed
Installation dimensions: 1220 x 39 mm
Dimensions: 1220 x 43 x 32 mm
Weight: 2 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Name	Description	Weight
Altigo G2 BE 120 6968200	Dimensions (L x W): 1262 mm x 59 mm, height 46 mm.	1 kg	Add to watchlist Add to product comparison Downloads
Altigo G2 Mini Connector IP68 6968300	Rapid connection system IP68,	0,03 kg	Add to watchlist Add to product comparison Downloads
Altigo G2 Micro Connector IP68 6968400	Rapid connection system IP68,	0,02 kg	Add to watchlist Add to product comparison Downloads

3 from 9 accessories

Photometric accessories

Name	Description	Weight
VE IP66 24V DC 60W ET 7511640	External 60 W control gear unit IP66.	0,42 kg	Add to watchlist Add to product comparison Downloads
VE IP66 24V DC 130W ET 7511740	External 130 W control gear unit IP66.	0,45 kg	Add to watchlist Add to product comparison Downloads
VE IP66 24V DC 100W ET 7512140	External 100 W control gear unit IP66.	0,8 kg	Add to watchlist Add to product comparison Downloads

3 from 4 accessories
