New

ceSymbol

protectionClassSymbol

Cuvia 40

SOLARSYSTEM-HSW 1030 - Cuvia40 SB3L2-730

TOC: 6000326350
Luminaire colour: DB703 micaceous iron oxide

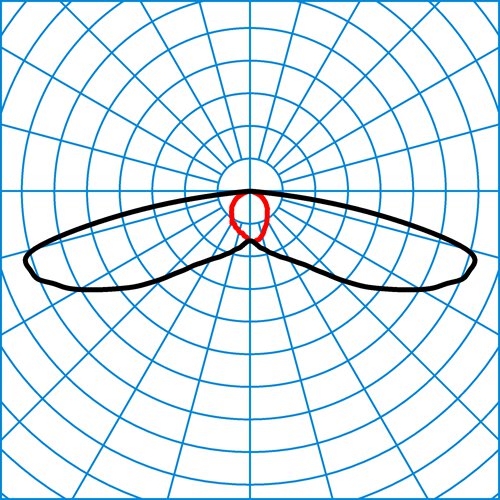

Light distribution curve: symmetric wide (SB3L)
Light emission: direct
Rated luminous flux: 900 lm
Connected load: 9 W
Service life: L80 (25 °C) = 100,000 h
Luminous efficacy: 100 lm/W
Colour temperature: 3000 K
Colour rendering index: > 70
Ingress Protection (IP) rating: IP66

TOC: 6000326350
Luminaire colour: DB703 micaceous iron oxide
Light distribution curve: symmetric wide (SB3L)
Light emission: direct
Rated luminous flux: 900 lm
Connected load: 9 W
Service life: L80 (25 °C) = 100,000 h
Luminous efficacy: 100 lm/W
Colour temperature: 3000 K
Colour rendering index: > 70
Ingress Protection (IP) rating: IP66
Protection rating of lamp compartment: -
Protection class: III
Impact resistance (IK): IK09
Hot wire resistance: 650 °C
Mounting type: Mounting bracket
Weight: 27 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Shieldings

Name	Description	Weight
MLT ZAH p4 6818500	Rear shielding for MLT IQ lens systems.	0,005 kg	Add to watchlist Add to product comparison Downloads
MLT ZAS G4 p4 7851000	Lateral shielding for MLT IQ lens systems. Accessories for retrofitting in technical and decorative outdoor luminaires with lens optics ABxL, AMxL, SB3L, RBxL.	0,005 kg	Add to watchlist Add to product comparison Downloads
MLT ZAHL Ledil sw p4 8508900	Rear shielding for MLT IQ lens systems.	0,005 kg	Add to watchlist Add to product comparison Downloads

Lighting technology

Select light distribution
