Skeo Circ

Skeo Circ MultiLC WD1 1G1Y ETDD E3

TOC: 7578051
Luminaire colour: RAL9010 Pure white

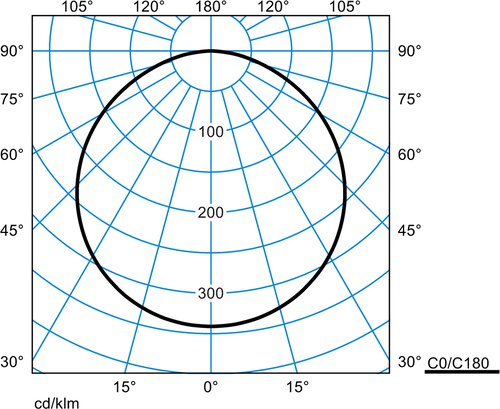

Light distribution curve: rotationally sym. wide (RB)
Light emission: direct
Rated luminous flux: 1700 - 1800 lm
Connected load: 18 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 94 - 100 lm/W
Colour temperature: 3000 - 4000 K
Colour rendering index: > 85
Ingress Protection (IP) rating: IP65

TOC: 7578051
Luminaire colour: RAL9010 Pure white
Light distribution curve: rotationally sym. wide (RB)
Light emission: direct
Rated luminous flux: 1700 - 1800 lm
Connected load: 18 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 94 - 100 lm/W
Colour temperature: 3000 - 4000 K
Colour rendering index: > 85
Ingress Protection (IP) rating: IP65
Protection class: I
Impact resistance (IK): IK10
Hot wire resistance: 650 °C
Mounting type: Surface-mounting
Dimensions: Ø 265 x 75 mm
Weight: 1,8 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Name	Description	Weight
Skeo Circ WD1 ZHF 7159600	Luminaire cover in the form of a sealed cover of the upper light emission surface with vertical centre strut.	1,8 kg	Add to watchlist Add to product comparison Downloads
Skeo Circ WD1 ZCF 7159800	Luminaire cover with protective grid consisting of 2 horizontal and 2 vertical struts.	1,8 kg	Add to watchlist Add to product comparison Downloads
Skeo Circ WD1 ZHF E3 7850300	Luminaire cover in the form of a sealed cover of the upper light emission surface with vertical centre strut.	1,8 kg	Add to watchlist Add to product comparison Downloads

3 from 4 accessories

Lighting technology

Select light distribution
