Building design, construction, management: thanks to Building Information Modelling (BIM), all relevant data can now be centrally recorded, visualized and correlated. The software-supported method goes beyond the basic data of the building. It also processes the building components, materials and built-in components used - such as luminaires. This allows precise planning of even complex projects and has already made BIM the standard in many countries. In Germany, the use of BIM in public tenders will become mandatory from 2020.
The detailed building coordination model is enriched with information throughout the planning process by all project participants and thus supports better planning, execution and building operation. In this way, it can be determined at an early stage whether the project can be implemented realistically and efficiently in terms of construction, time, material and cost planning. The focus is always on one central objective: to make construction projects economical, resource-efficient and sustainable through integral planning processes.
The BIM planning method enables all those involved in construction to work together cooperatively on the basis of digital 3D specialist models that contain all building information in the form of data for all purposes. Planning, simulation, visualization, calculation and tendering, are digitally processed for the construction and operation of the property and thus transparent for all parties involved.
TRILUX has been actively involved with BIM since 2011 and is involved in the standardization work of national and international committees.
TRILUX provides luminaire models for download in REVIT format for the BIM method.
TRILUX data sets include the luminous intensity distribution curve (LVK) and approx.30 product characteristics. Movable, adjustable models such as track spotlights are also mapped.
TRILUX makes full use of the possibilities of Revit data sets. This provides the planner with optimum quality and dimension for the BIM application.
TRILUX provides BIM luminaire models for its luminaire portfolio in REVIT-Family-files (*.rfa) and in REVIT-Single-files format (*.rfa). These contain many technical parameters, some of which, such as pendant lengths, can also be set user-specifically. Please store the *.txt files in the same directory as the *.rfa files when using the family files.
BIM luminaire models indoor lighting
BIM luminaire models outdoor lighting
No, BIM is not software, BIM is a software-supported planning method in the building process. For different BIM use cases, such as planning, simulation, visualization, calculation and tendering, a software application is required. Very important, at the beginning of the BIM process, the software and IT structure to be used must be determined in the client information requirements (AIA).
An important question, and one that must be clarified at the beginning of any BIM project, because the selection and use of the "BIM" software and ultimately the data exchange format between the project participants is based on this.
"Closed" BIM:
(*e.g. *.rfa, *.rvt, *.gsm)
"Open" BIM
A digital twin represents the digital image of a physical object and is thus made accessible to the digital world, including geometry and alphanumeric features (attributes) via software application for further usage purposes. In the construction project, a building is managed and updated as a digital twin from planning to the end of its life cycle. For this purpose, this provides complete and accurate information to enable better decisions and interventions in the physical building project.
How an object or component is positioned in the building model depends on how it is initially defined and on which surface orientation is referred to in the building. TRILUX provides "Face-based Revit files"“ as standard. This means that a luminaire planning model based on this can be directly assigned to this selected face in a building (independent of the floor) with the help of a direct face selection (wall, floor, ceiling, ...). Luminaire planning models as "Level-based Revit files" are positioned in a building when used at level "0", regardless of the floor in which the luminaire planning model is inserted. The final position of the luminaire in the building must then be assigned to the selected surfaces in an additional step in Revit.
A BIM use case includes all possible scenarios that can occur when a stakeholder, e.g. the investor, tries to achieve a certain technical goal.
Two examples:
The abbreviation CDE stands for Common Date Environment and creates a common, virtual data environment (DIN EN ISO 19650, VDI 2552 Sheet 5) as a workspace for storing and organizing data and specialist models in the BIM process. For collaborative & interdisciplinary work, a cloud-based CDE platform offers all participants project access through communication options, document storage, traceability of activities, overview of the planning status and thus maximum transparency. With the future transition to the BIM maturity level in Level 3, the CDE (iBIM) is to be used as a real-time application related to a single building model.
CDE Applications:
LoD stands for „Level of Detail“, „Level of Development“ or also „Level of Definition“.
The level of detail or degree of completion provides information about the required geometric modelling accuracy of components. In English-speaking countries, the acronym LoD is usually used. The requirement for the LoD can change depending on the project phases (from coarse to fine). A scaling can be represented in these characteristics from LoD 100, LoD 200, LoD 300, LoD 400, to LoD 500.
LoI stands for „Level of Information“ LoG stands for „Level of Geometry“
To describe the information content separately according to geometric and alphanumeric model information, the acronyms LoG and LoI are also used in this context. The LOI describes the degree of information of an object that is recorded in the building model or in a BIM database. As the project progresses, this accuracy will typically continue to increase. The LoI describes the information density of an object, which can consist of alphanumeric or supplementary documents (such as user instructions). The assignment of which LoI is used when should be regulated in the specifications; if necessary, this can be done down to attribute level. A scaling can be represented in these characteristics from LoI/LoG 100, LoI/LoG 200, LoI/LoG 300, LoI/LoG 400, to LoI/LoG 500.
LoIN stands for „Level of information needed“
The concept of LoIN or information requirements depth replaces the previous concept of LoD and LoI (DIN EN 17412-1: 2021-06 and ISO 19650-1:2019-08). It is divided into geometric and alphanumeric information requirements including additionally required attached documentation. LoIN considers the holistic information management, which takes into account the entire building life cycle and is limited to the basic required information.
IFC stands for "Industry Foundation Classes" and is an open standard format that, like PDF or HTML, can be freely used by everyone. IFC files contain geometry data that define the appearance of objects, but also important component information data, such as energy values, fire protection, usage, manufacturer data, and the like.
IFC is developed and further developed under the leadership of buildingSMART. The most widely used version is IFC2x3, and since the current version IFC4 is an official ISO standard.
IFC is an important building block in openBIM. The project participants can exchange data with it if their software application supports the import and export of IFC. IFC luminaire models currently still require a rebuilt space for transport / exchange, which is why no luminaire models are provided in IFC format.
Instead of accumulating information anew each time during the planning of different trades, as in conventional planning methods, the data is continuously built up over the entire project period. Extremely high data quality is achieved because they all go back to a common database and are constantly synchronized.
TRILUX BIM luminaire models are multidimensional and contain relevant data and information on product properties:
REVIT files BIM are available in two versions:

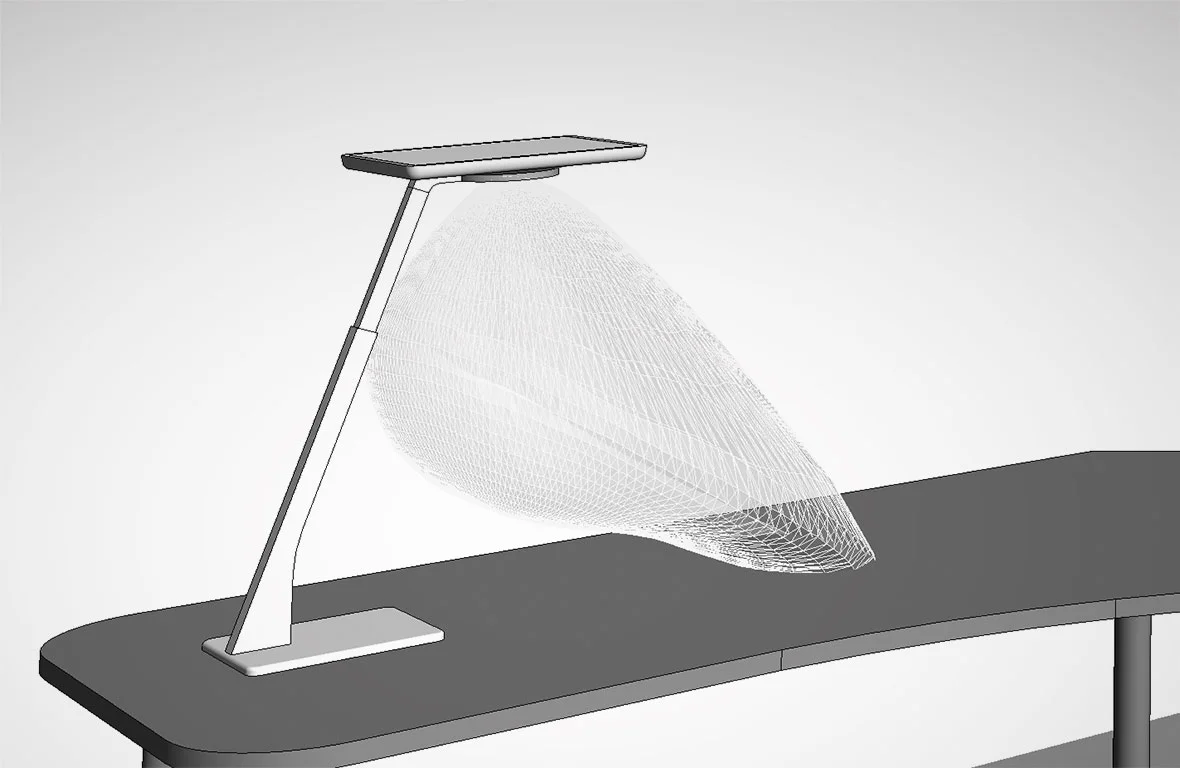

Lighting visualizations are possible by means of high detail, light distribution curve and light color

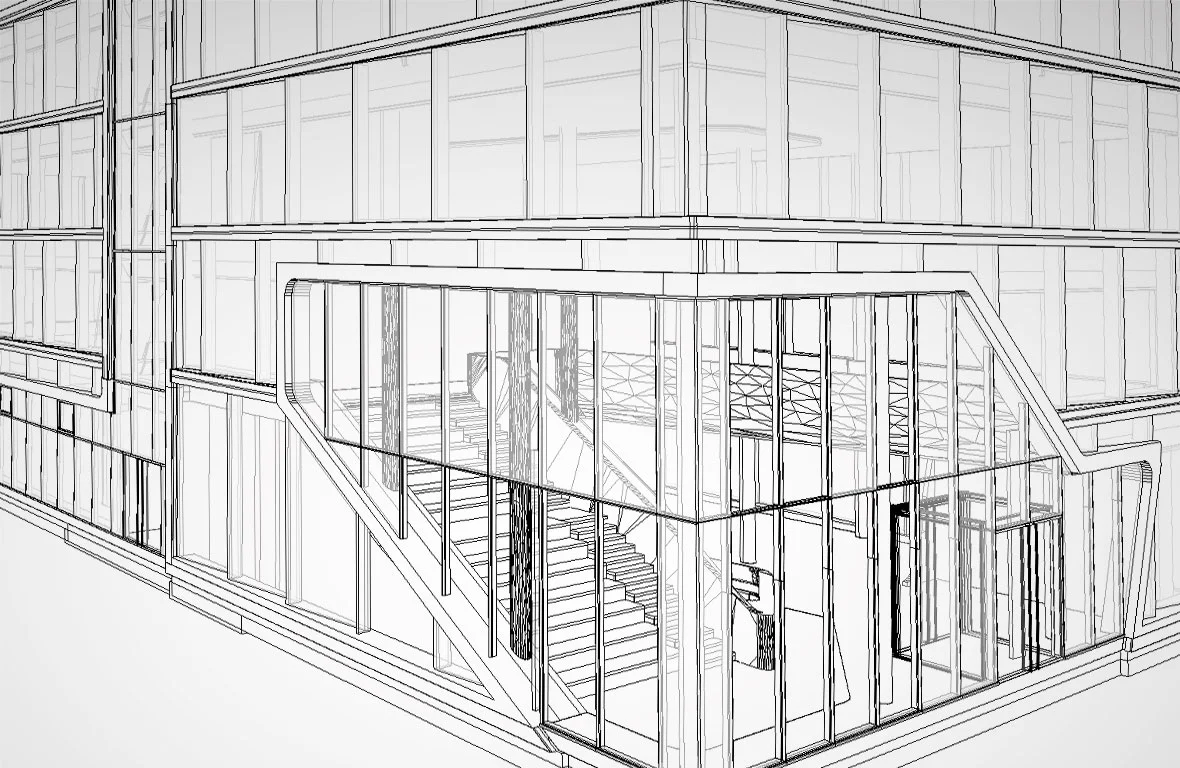

In the highly informative building models, not only all parts of the building structure, but also all other objects (lights, furniture, electrical accessories, special equipment, etc.) are recorded with their properties and networked with each other. The particular benefit of BIM is the constant availability of all relevant information on the status of the building project. For example, bills of materials can be output at any time and automatically updated when components are replaced or changed. Likewise, the current status of actual and planned costs as well as the updated schedule can be called up at any time.
