TRILUX 8841 LED and 8851 LED
Powerful with style
The challenge
Designing decorative or prestigious outdoor areas provides buildings with a visual framework, whether decorative for a park-style look or a more sober design. Luminaires have the task of setting optical accents both during the day and at night. This however only succeeds if the luminaires can be diversely used despite a uniform overall design that is expressive enough not to become boring. As a matter of course the quality of light has to be a match.
The solution
The 8841 and 8851 LED product range convinces with a characteristically concise appearance and a diversity with luminaire versions. The luminaire is available as a bollard, short bollard and wall luminaire. Divers wide light distributions and various lumen packages provide maximum visual comfort.
Variety of luminaire heads

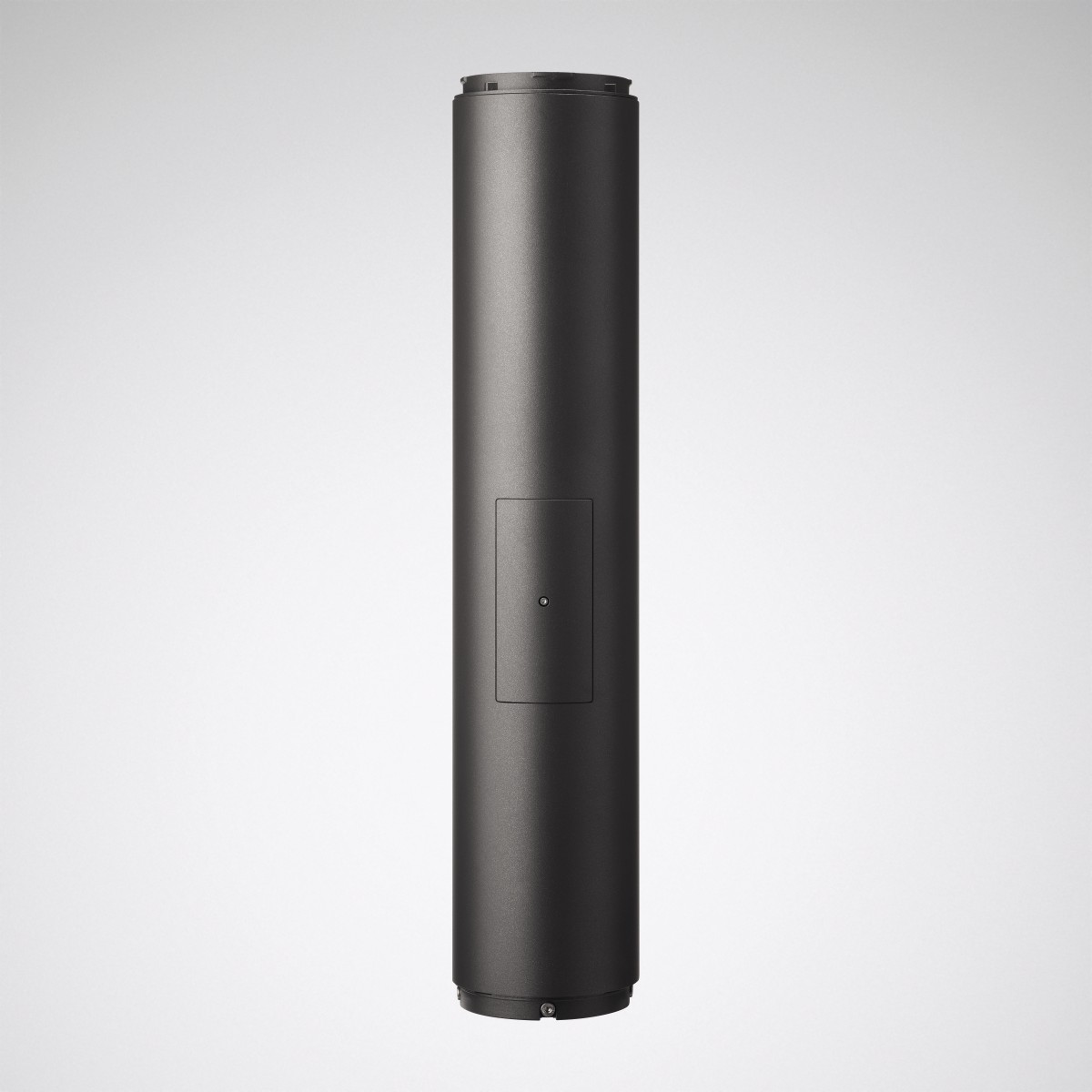

Variety of stand pipes
Planning aids
for path lighting
According to standard 3.000 K
| Path width (m) | Light point distance (m) | Location behind pavement | Ēm (lx) | Emin (lx) |
| 1,0 | 8,0 | 0 m | 25,09 | 1,16 |
| 1,5 | 8,0 | 0 m | 19,76 | 1,07 |
| 2,0 | 7,5 | 0 m | 17,43 | 1,18 |
| 2,5 | 7,0 | 0 m | 16,48 | 1,20 |
| 3,0 | 6,5 | 0 m | 15,90 | 1,14 |
| 3,5 | 6,0 | 0 m | 15,20 | 1,02 |
| 4,0 | 5,0 | 0 m | 15,89 | 1,04 |
Orientation lighting 4.000 K
| Path width (m) | Light point distance (m) | Location behind pavement | Ēm (lx) | Emin (lx) |
| 1,0 | 10,5 | 0 m | 21,54 | 0,40 |
| 1,5 | 10,5 | 0 m | 16,80 | 0,38 |
| 2,0 | 10,0 | 0 m | 14,56 | 0,43 |
| 2,5 | 10,0 | 0 m | 12,59 | 0,38 |
| 3,0 | 9,5 | 0 m | 11,22 | 0,40 |
| 3,5 | 9,0 | 0 m | 10,13 | 0,39 |
| 4,0 | 8,0 | 0 m | 9,89 | 0,43 |
SUPERIOR LIGHTING TECHNOLOGY
Thanks to innovative photometrics, a bollard distance of up to 14 meters is possible between two luminaires.
VANDAL-PROOF
Additional vandalism protection is provided by an optional supporting column with continuous underground support
EFFICIENT THANKS TO MITIQ
MLTIQ-Technology ensures optimal light effects with minimum energy costs
