E-Line Pro

TRILUX 8841 LED

Powerful with style

The challenge

Designing decorative or prestigious outdoor areas provides buildings with a visual framework, whether decorative for a park-style look or a more sober design. Luminaires have the task of setting optical accents both during the day and at night. This however only succeeds if the luminaires can be diversely used despite a uniform overall design that is expressive enough not to become boring. As a matter of course the quality of light has to be a match.

The solution

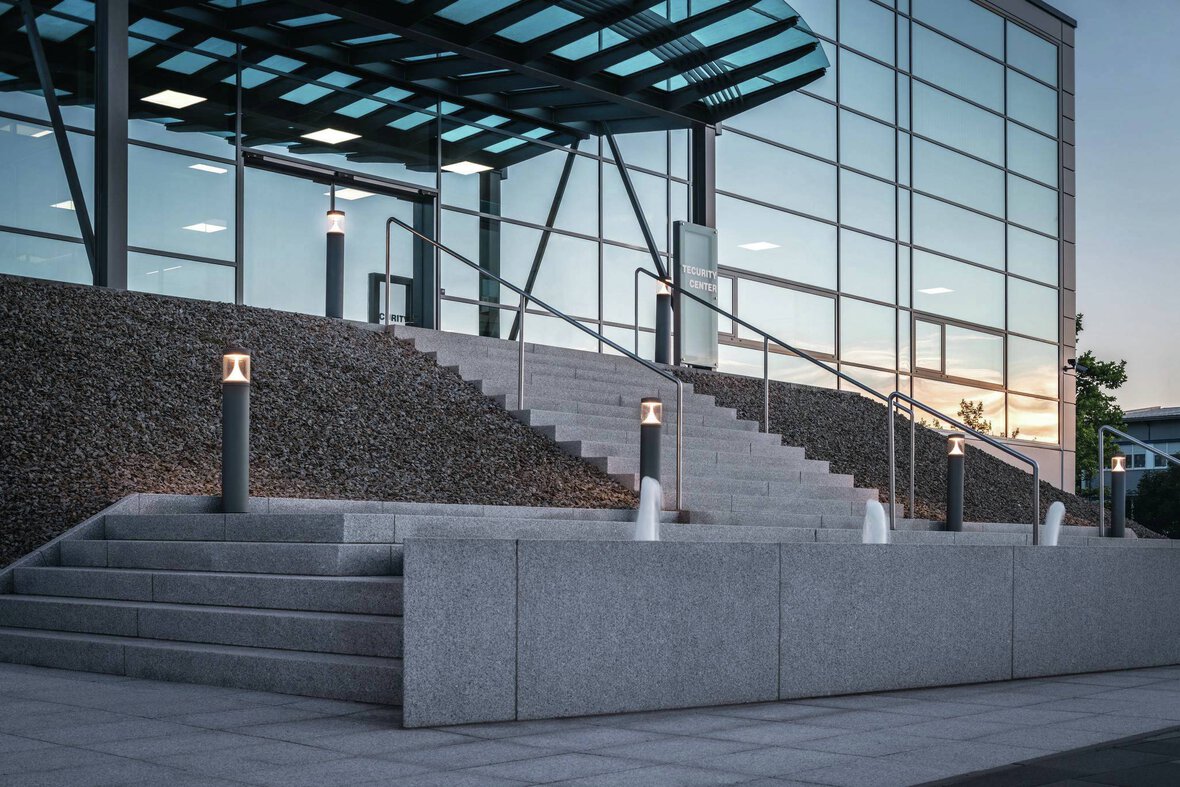

The 8841 LED product range convinces with a characteristically concise appearance and a diversity with luminaire versions. The luminaire is available as a bollard, short bollard and wall luminaire. Divers wide light distributions and various lumen packages provide maximum visual comfort.

Planning aids

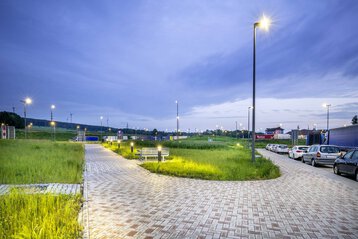

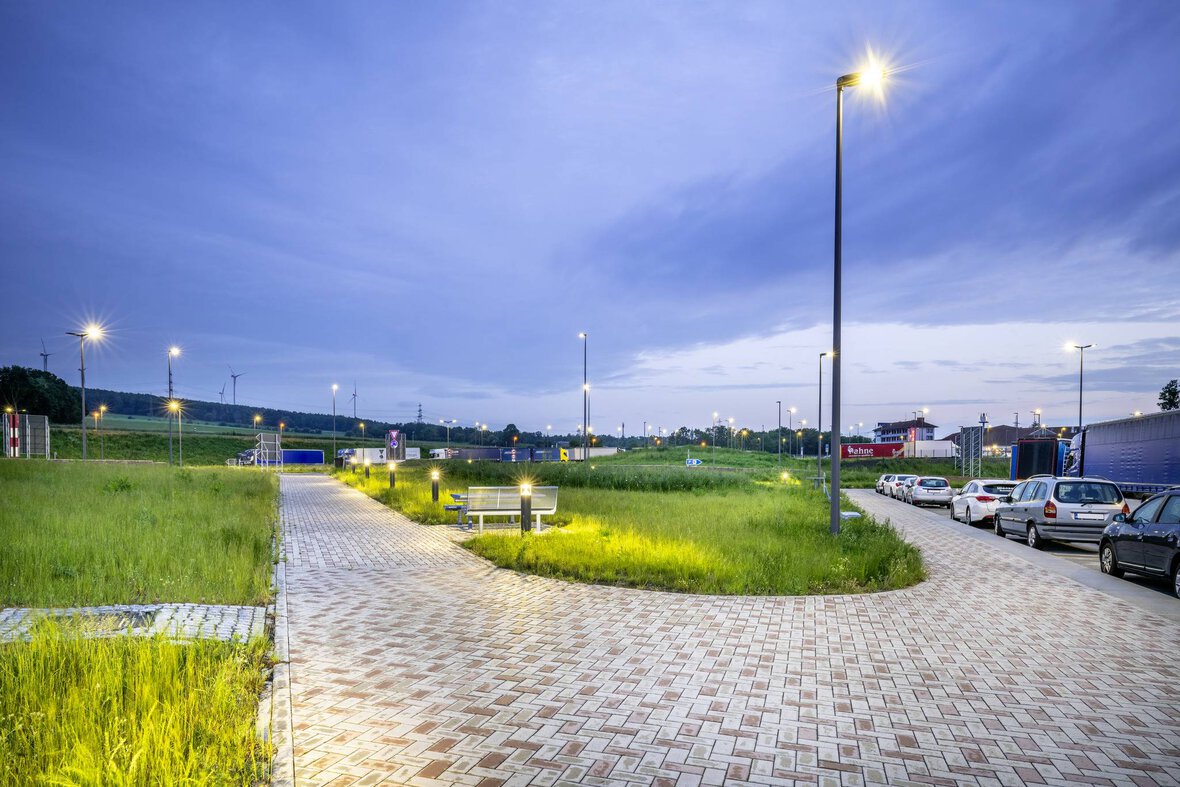

 for path lighting

According to standard 3.000 K

Path width (m) Light point distance (m) Location behind pavement Ēm (lx) Emin (lx)
1,0 8,0 0 m 25,09 1,16
1,5 8,0 0 m 19,76 1,07
2,0 7,5 0 m 17,43 1,18
2,5 7,0 0 m 16,48 1,20
3,0 6,5 0 m 15,90 1,14
3,5 6,0 0 m 15,20 1,02
4,0 5,0 0 m 15,89 1,04

Orientation lighting 4.000 K

Path width (m) Light point distance (m) Location behind pavement Ēm (lx) Emin (lx)
1,0 10,5 0 m 21,54 0,40
1,5 10,5 0 m 16,80 0,38
2,0 10,0 0 m 14,56 0,43
2,5 10,0 0 m 12,59 0,38
3,0 9,5 0 m 11,22 0,40
3,5 9,0 0 m 10,13 0,39
4,0 8,0 0 m 9,89 0,43

SUPERIOR LIGHTING TECHNOLOGY

Thanks to innovative photometrics, a bollard distance of up to 14 meters is possible between two luminaires.

Radiantly different - 180° shading

180° shading ensures that the light is only emitted forwards, preventing unwanted light from reaching neighboring houses or objects. Thanks to 180° shading, the proportion of light emitted to the rear is 0%.

EFFICIENT THANKS TO MITIQ

MLTIQ-Technology ensures optimal light effects with minimum energy costs

More over MLTIQ

VANDAL-PROOF

Additional vandalism protection is provided by an optional supporting column with continuous underground support

8841 LED
