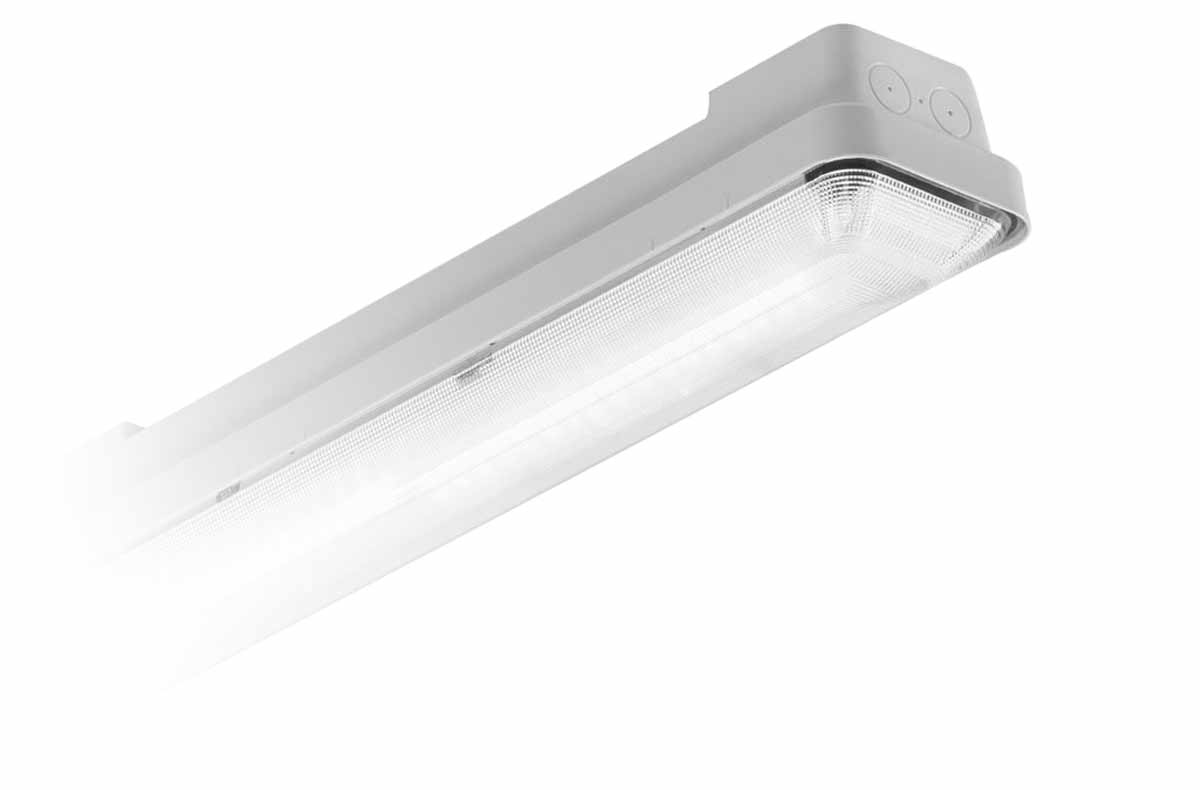

Aragon Fit LED
pro-level efficiency, quality and intelligence
- economic criteria
- increasing demands posed to quality of light, functionality, design and connectivity
- special requirements in multi-storey car parks
- significant improvements in quality of light and efficiency
- lightning-fast refurbishment thanks to well thought-out installation and packaging concept
- optics set system with a broad selection and a large number of variants for tailor-made solutions
(1) can be combined with the LiveLink light management system (2) can be combined with sensors, (3) swarm function: networking to intelligent luminaire groups 4) cloud services such as monitoring services, predictive maintenance
(1) high energy efficiency of ≤170 lm/W, as HE version up to 180 lm/W (2) long service life of L80 50,000 h tq 35 ºC or L80 70,000 h tq 25°C, with the HE version featuring a service life of L80 100.000 h tq 25°C
Advantages in lighting design
Allow me: Your specialist for challenging environments

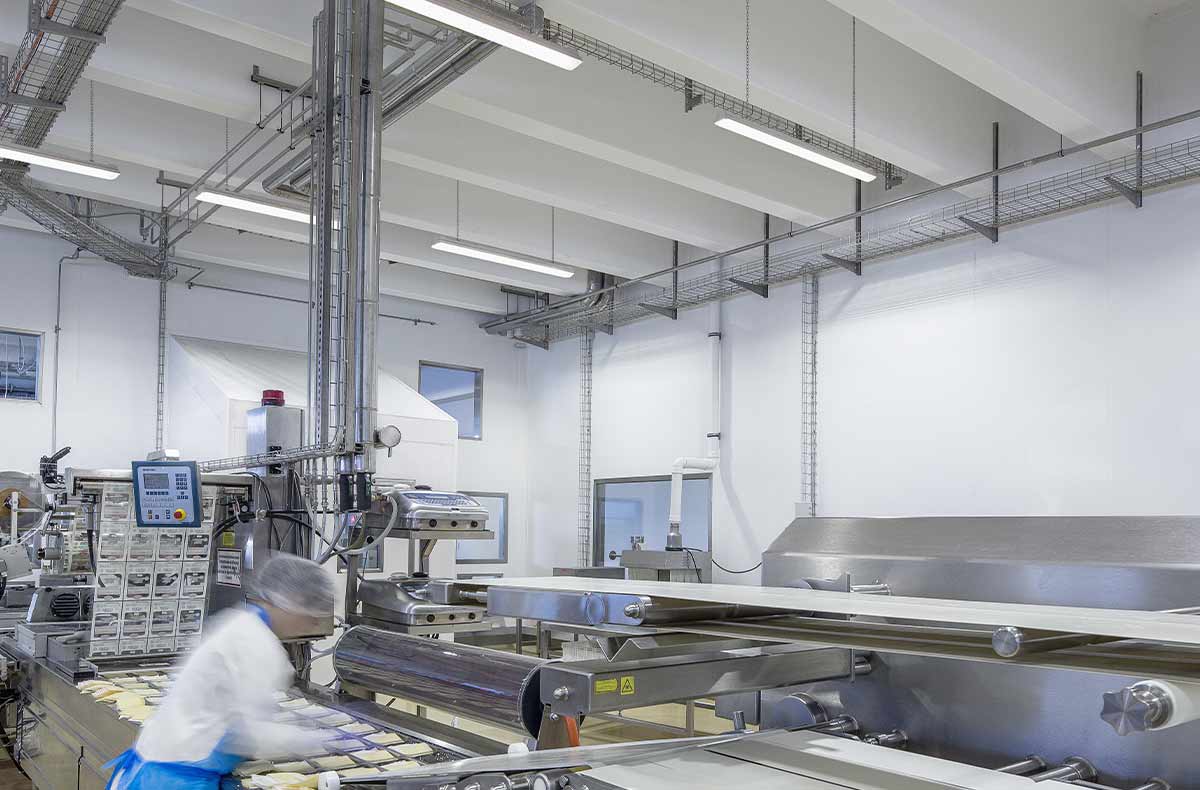

Aragon Fit LED was designed specifically for use in challenging surroundings. The luminaire is ideal e.g. for illuminating car parks, damp rooms in the food industry, canopied outdoor areas and areas with an adverse atmosphere. For areas of application where e.g. chemical cleaning agents are used, the luminaire is also available as an especially resistant CR version (chemical-resistant) made of polyamide.
Wide modular range of optics – always the right light distribution
Thanks to a wide selection of special optics and lumen packages, various applications can now be illuminated even better. Five optics are available, ranging from narrow to extremely wide distribution. There is also an asymmetric optic – perfect e.g. for payment areas or illuminating signs and posters in multi-storey car parks. An intuitively used comparison calculator minimises the effort involved in selecting and calculating the optimum number of luminaires.
A new luminaire for new standards
Interchangeable components – less effort, more flexibility and sustainability
Thanks to the modular design, individual components of the luminaires can be quickly and easily exchanged. This enables particularly simple, low-cost maintenance and makes Aragon Fit LED extremely flexible: if the lighting requirements change – e. g. due to a change in use of the room – only the corresponding components need to be exchanged. The result: lower costs and greater sustainability.
Swivelling wall mounting – completely new possibilities
Aragon Fit LED is available with a swivelling bracket for wall mounting as an option to the classic ceiling mounting. This opens up new application possibilities, because areas that are challenging in terms of lighting design, such as stairwells, can thus be illuminated even more precisely.
SOF – special solutions in sight
Higher efficiency or longer service life? Special emergency light modules? Or intelligent IoT applications such as beacons or Wi-Fi repeaters? No problem at all: due to the high vertical range of manufacture, TRILUX can also manufacture weather-proof luminaires according to individual specifications if required. Quick, simple and safe.
Benefits during installation

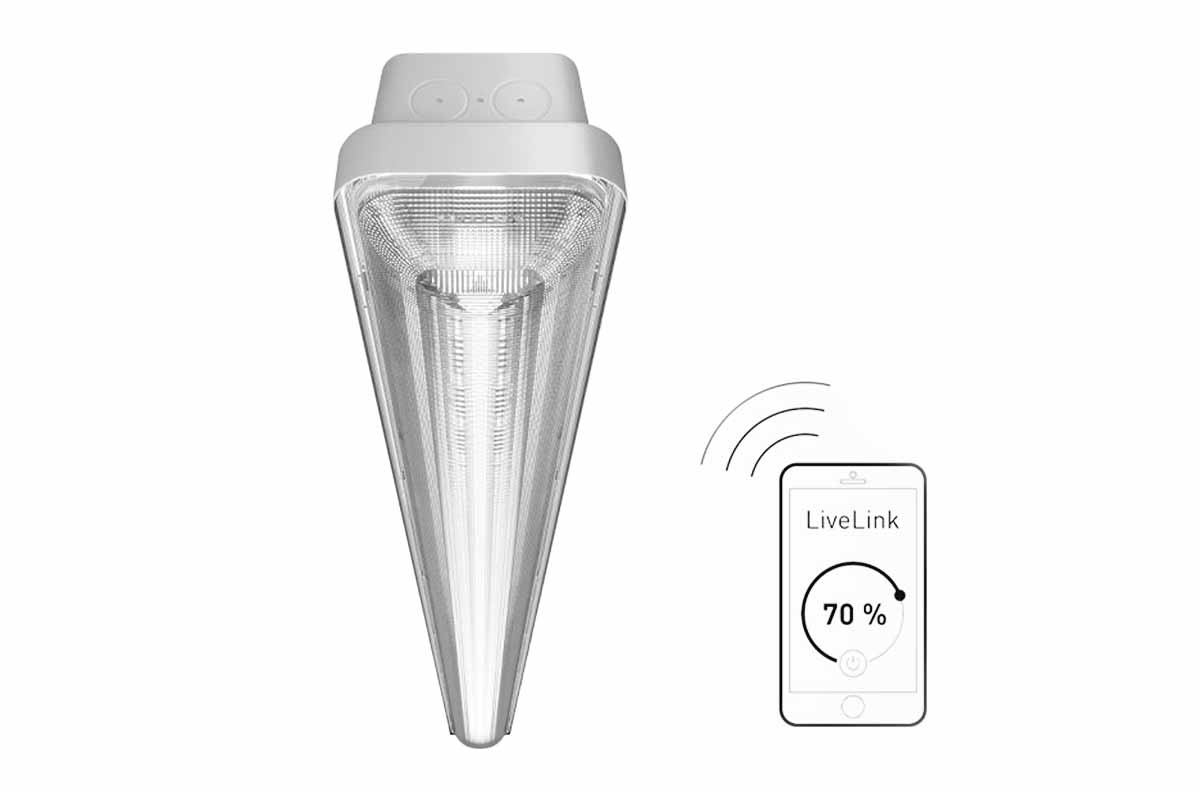

If there are no control lines – dimming by radio refurbishment
Dimmable DALI luminaires require five-core control lines. If only three-core cables are installed in damp rooms, radio refurbishment via LiveLink SwarmSens is the alternative. In this way, the Aragon Fit LED can simply receive the control signals via radio without the need for complex conversion measures
Clipless mounting – fast and easy
Time is money. For this reason, the luminaire is supplied completely pre-assembled and can be mounted to the ceiling by the installer in a single step. Intelligent: clip-free mounting accelerates the installation process by up to 33 percent. This is also a visual gain, because the appearance is not affected by clips.
Packaging optimised – more time and less waste
On request, Aragon Fit LED can be delivered to the construction site in packaging-optimised containers. You can choose between a box of 15 or a pallet of 63, which are packed completely free of styrofoam. This accelerates mounting by up to 50 percent and reduces the amount of rubbish generated by up to 68 percent.
Multi-lumen – luminous flux adjusted on site
The Aragon Fit LED lumen packages can be flexibly adjusted on the control gear unit. This offers maximum flexibility for on-site installation. It also simplifies ordering and warehousing because only one variant needs to be stocked.
Advantages in operation
HE version – unprecedented efficiency in weather-proof luminaires
As a high-efficiency version (HE), Aragon Fit LED achieves an unprecedented energy efficiency of up to 180 lm/W. Simultaneously, the service life was extended to 100,000 h. The result: maximum reliability with uniquely low operating costs.
Outstanding quality of light
Aragon Fit LED scores points with its excellent quality of light. The light is pleasantly free of glare and with CRI90 ensures natural colour rendering – important, e.g., when used in the food industry.
A temperature specialist – created for extremes
For use in extreme temperatures, Aragon Fit LED is optionally available as an LT (low temperature) version for cold stores and as an HT (high temperature) version for particularly hot environments, e.g. in production halls or under hall roofs.
Dimmability – required, delivered
With dimmable sensor-controlled luminaires, energy consumption can be minimised – an option that was previously unused in many damp rooms due to the lack of control cables. This is a gap covered by Aragon Fit LED thanks to the radio refurbishment.
SWARM FUNCTION WITH LIVELINK: LIGHT THAT LEADS ME
With LiveLink SwarmSens, luminaires can be networked easily and uncomplicatedly via radio. The high-frequency sensor integrated in the luminaire helps save energy and only switches the lighting on when it is needed.
Thanks to the intelligent networking of the luminaires, the light runs ahead intelligently and provides orientation
Network-capable – predictive maintenance
On request, the luminaires can be networked via LiveLink and integrated into the cloud. This enables particularly convenient control and monitoring of the lighting system, as well as services such as predictive maintenance.
Saving energy with control of small groups
Small groups, big advantage: with LiveLink, the luminaires can be combined into small groups. This enables very precise and energy-saving control via sensors: if a presence sensor detects a person then only the connected DALI group is activated, but not all luminaires in the room.
More safety and comfort – indirect light, direct benefits
The Aragon Fit LED variant with a translucent housing has an indirect light component of 15 percent. This not only increases safety and comfort. The brightening of the ceiling also brings more style into the rooms.
Flexibility – everything modified and exchanged in a flash
Optic, control gear unit, gear tray, sensors – thanks to the modular design, all components can be replaced quickly and flexibly even after the mounting process. This makes maintenance easier, offers maximum flexibility e.g. when the room is used differently, and is particularly sustainable.
CR version – masters even increased chemical exposure
Be it food or heavy industry: in some areas, there is particular chemical contamination, e.g. with oils or lubricants, which can present a challenge for the luminaire material. Also, with particular hygiene requirements, for instance when cleaning with aggressive chemical cleaning agents, material quality is essential. For precisely these environments, the luminaire is available as a CR version (chemical-resistant): Housing and diffuser are made of polyamide, which retains its material quality even with long-term use in challenging environments.
From consulting to maintenance – all from a single source
As a full-service provider, TRILUX is the central contact for lighting. With the broadly diversified and modular service portfolio, customers can place their entire process into the hands of TRILUX – and continue to concentrate on their core areas of expertise. Tailor-made special solutions are also available.
Winning in efficiency and service life
Its energy efficiency of up to 180 lm/W and a long service life (HE: L80 100,000 h tq 25 ºC; L80 70,000 h tq 25°C) make Aragon Fit LED highly economically attractive.
Wide kit of optics
Aragon Fit LED provides tailor-made light in damp rooms thanks to its wide modular kit of five application-specific optical systems.
Flexible adjustment of luminous flux
The luminous flux can be flexibly modified on the luminaire's control gear unit. This simplifies and accelerates ordering and warehousing.
Quick and easy mounting
Intelligent details such as closing the luminaire without clips and optimised packaging ensure fast, uncomplicated mounting.
Refurbishment possibility – wireless networking
If there are no DALI control lines, Aragon Fit LED can also be easily networked by radio and controlled via sensors and the LiveLink light management system. This enables rapid refurbishment without interfering with the building structure. LiveLink SwarmSens not only helps to save energy. By networking the luminaires, the light runs ahead intelligently.
Easy exchange of components
Thanks to the modular design, all components, including the optics, can be exchanged with minimum effort. This makes maintenance work easier, and increases flexibility if the room use changes for example.
|Energy efficiency||up to 180 lm/W|
|Lumen packages||2.300 lm - 13.000 lm|
|Service life||HE: L80 100.000 h tq 25°CL80 70.000 h tq 25°CSpecial LT/HT variants: -40° to +50°|
|Colour rendering / colour temperatures||Ra > 80/ Ra> 904.000 K6.500 KHCL: optional|
|Light distribution||P-W (wide distribution), P-N (narrow distribution), P-VW (very wide distribution), P-XW (extremely wide distribution), P-AW (asymmetric distribution)|
|Electrical version||ET, ETDD, Mulitlumen, CLO optional|
|Protection rating / safety class||IP 66PMMA: IK03PC: IK08CR (Polyamid): IK07|
|Sensor technology||HFS, HFSB / HFSX|
|Control||Swarm intelligenceLiveLink: control, monitoring + Special LiveLink Wi-Fi radio refurbishment solution|
|Luminaire colour||Light grey, similar to RAL 7035 / translucent|
