Jovie 50

Jovie50-AB2L2S2-22-740-ET-CAB-26

TOC: 9002209020
Luminaire colour: DB703 micaceous iron oxide

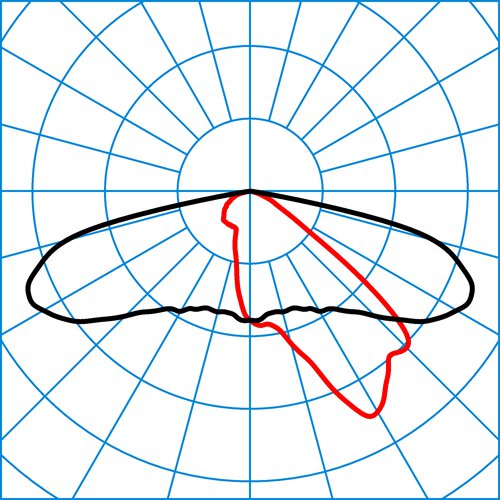

Light distribution curve: asymmetric wide (AB2L)
Light emission: direct
Rated luminous flux: 2200 lm
Connected load: 17 - 18 W
Service life: LCLO (25 °C) = 100,000 h
Luminous efficacy: 129 - 122 lm/W
Colour temperature: 4000 K
Colour rendering index: > 70
Protection rating: IP66

TOC: 9002209020
Luminaire colour: DB703 micaceous iron oxide
Light distribution curve: asymmetric wide (AB2L)
Light emission: direct
Rated luminous flux: 2200 lm
Connected load: 17 - 18 W
Service life: LCLO (25 °C) = 100,000 h
Luminous efficacy: 129 - 122 lm/W
Colour temperature: 4000 K
Colour rendering index: > 70
Protection rating: IP66
Protection class: II
Impact resistance (IK): IK09
Hot wire resistance: 650 °C
Shape: rectangular
Mounting type: Mastansatz, Mounting bracket
Dimensions: 450 x 202 x 80 mm
Weight: 4,2 kg
Emergency light available: No
Light management system: Smart Lighting Ready (SLR)
Mounting height H1: 8000 mm
Surface treatment: Powder coating
Material housing: Aluminium

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

This product is eligible for subsidy

For more information, please contact TRILUX support at sales@trilux.co.uk
No responsibility is taken for the correctness of this information. The applicant is responsible for verifying compliance with the requirements of the funding program.

CEE BAR-EQ110 (FR)

Lighting technology

Select light distribution

No downloads available for this product

Jovie50-AB2L2S2-22-740-ET-CAB-26

TOC

9002209020

Luminaire colour

DB703 micaceous iron oxide

Light distribution curve

asymmetric wide (AB2L)

Light emission

direct

Rated luminous flux

2200 lm

Connected load

17 - 18 W

Service life

LCLO (25 °C) = 100,000 h

Luminous efficacy

129 - 122 lm/W

Colour temperature

4000 K

Colour rendering index

> 70

Protection rating

IP66

TOC: 9002209020
Luminaire colour: DB703 micaceous iron oxide
Light distribution curve: asymmetric wide (AB2L)
Light emission: direct
Rated luminous flux: 2200 lm
Connected load: 17 - 18 W
Service life: LCLO (25 °C) = 100,000 h
Luminous efficacy: 129 - 122 lm/W
Colour temperature: 4000 K
Colour rendering index: > 70
Protection rating: IP66
Protection class: II
Impact resistance (IK): IK09
Hot wire resistance: 650 °C
Shape: rectangular
Mounting type: Mastansatz, Mounting bracket
Dimensions: 450 x 202 x 80 mm
Weight: 4,2 kg
Emergency light available: No
Light management system: Smart Lighting Ready (SLR)
Mounting height H1: 8000 mm
Surface treatment: Powder coating
Material housing: Aluminium

This product is eligible for subsidy

CEE BAR-EQ110 (FR)

Accessories list

Name	Description	Weight
0970/60 Reduction Piece 2223400	Reduction piece of stainless steel. Post spigot Ø 60 mm.	0,102 kg	Add to watchlist Add to product comparison Downloads
0802KÜ/2 junction box 2218100	Junction box.	0,5 kg	Add to watchlist Add to product comparison Downloads
0802KÜ/3 junction box 2218200	Junction box.	0,8 kg	Add to watchlist Add to product comparison Downloads
