9821 RB6L/3800-730 4G1S ET, 6718540

TOC 6718540
EAN 4018242349876
Luminous efficacy (maximum) 112 lm/W
Luminaire luminous flux 3800 lm
Connected load 34,00 W
Colour temperature 3000 K
Degree of protection IP65
Colour black
Weight 11,0 kg
  6 7 5 9

Product description

Luminaire type
Decorative LED indirect luminaire for post-top mounting. With an intelligent label for quick access to luminaire information by means of QR code.

Applications
Residential roads, Collection roads, Pedestrian zones, Arcades, Passages, Paths in parks and green areas, Residential facilities, Stairways, Access areas, Car parks.

Mounting methods
For post spigot Ø 76 mm. Also suitable for mounting to posts with spigot Ø 60 mm via reduction pieces to be ordered separately. Passender Mast auf Anfrage.

Optical system
Optical system with Multi-Lens Technology. Luminaire optic consists of highly efficient, UV and temperature-resistant lens systems. With rotationally symmetric wide light distribution. Retrofitting a rear / side shield is possible as an accessory to be ordered separately.

LED system
Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). LED system consisting of 4 LED modules. Luminaire luminous flux 3800 lm, connected load 34 W, Power Faktor λ > 0,95, maximum luminous efficiency of luminaire 112 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Further LED light colours available on request. Mean rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Versions with 3-level switch for adjusting various luminous flux options on request.

Luminaire body
Luminaire body of die-cast aluminium, luminaire canopy of corrosion-resistant aluminium, powder-coated highly weather resistant. Colour black (RAL 9005). Sea weather-suitable coating on request. Luminaire top white powder-coated on inside. Cylindrical cover of impact-resistant PMMA, clear. Luminaire cover in lock-in service position can be pushed upwards. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP23, Protection rating of lamp compartment: IP65, impact resistance level in accordance with IEC 62262: IK04. Mast available upon request. Windage area fw 0,470 m². Weight: 11,0 kg.

Electrical version
With electronic control gear unit, switchable The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). With connected 6,000 mm connection cable. With insulated terminal point for earth conductor. Electrical block contains all electric components, can be replaced without tools. Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority.

With Trilux after-sales promise: the luminaire is available for 10 years and spare parts (LED module, control gear unit and optical system) are available for 15 years from date of invoice. The right to make reasonable modifications in the interests of progress is reserved.


Planning information:
The luminaire is compliant to the requirements of EN 60598 and is designed for the effects of wind compliant to EN 1991 (Eurocode) with basic wind velocity of up to 30m/s (corresponding to wind zone 4 in Germany) in terrain category 1. A snow load (up to 1kN/m²) and icing (up to 2 cm) at a mounting height in accordance with the mounting instructions are taken into account. Not considered are exposed locations (e.g. bridges, installation on buildings or directly adjacent to railway tracks). Impact loads are not considered.
Disassembly instructions (PDF) for the product available at: https://www.trilux.com/EcoDesign

TOC 6718540

Tender

Tender text with leading brand

9821 RB6L/3800-730 4G1S ET
Decorative LED indirect luminaire for post-top mounting. With an intelligent label for quick access to luminaire information by means of QR code. For post spigot Ø 76 mm. Also suitable for mounting to posts with spigot Ø 60 mm via reduction pieces to be ordered separately. Passender Mast auf Anfrage. Optical system with Multi-Lens Technology. Luminaire optic consists of highly efficient, UV and temperature-resistant lens systems. With rotationally symmetric wide light distribution. Retrofitting a rear / side shield is possible as an accessory to be ordered separately. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). LED system consisting of 4 LED modules. Luminaire luminous flux 3800 lm, connected load 34 W, maximum luminous efficiency of luminaire 112 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Further LED light colours available on request. Mean rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Versions with 3-level switch for adjusting various luminous flux options on request. Luminaire body of die-cast aluminium, luminaire canopy of corrosion-resistant aluminium, powder-coated highly weather resistant. Colour black (RAL 9005). Sea weather-suitable coating on request. Luminaire top white powder-coated on inside. Cylindrical cover of impact-resistant PMMA, clear. Luminaire cover in lock-in service position can be pushed upwards. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP23, Protection rating of lamp compartment: IP65, impact resistance level in accordance with IEC 62262: IK04. Mast available upon request. Windage area fw 0,470 m2. Weight: 11,0 kg. With electronic control gear unit, switchable The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). With connected 6,000 mm connection cable. With insulated terminal point for earth conductor. Electrical block contains all electric components, can be replaced without tools. Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
TRILUX Order code 6718540

Copy text



Tender text without leading brand

Decorative LED indirect luminaire for post-top mounting.
With an intelligent label for quick access to luminaire information by means of QR code.
For post spigot Ø 76 mm.
With rotationally symmetric wide light distribution.

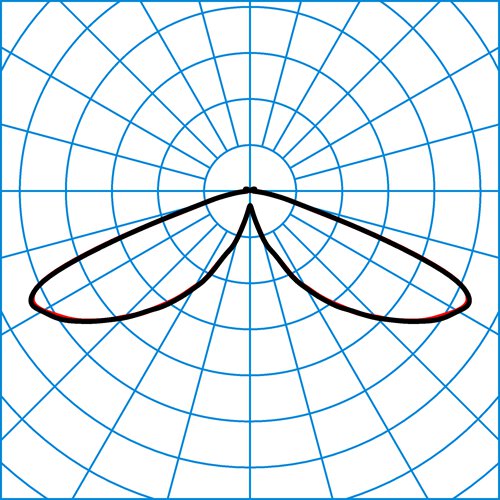

Luminous intensity distribution: direct-indirect
Reflector material: Aluminium
Luminaire body of die-cast aluminium, luminaire canopy of corrosion-resistant aluminium, powder-coated highly weather resistant.
Mounting location: Outdoor masts
With electronic control gear unit, switchable
Control gear unit is replaceable according to ecodesign requirements.
Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV.
Mean rated service life LCLO(tq 25 °C) = 100,000 h.
Light source is replaceable according to ecodesign requirements.
Versions with 3-level switch for adjusting various luminous flux options on request.
Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO).
Luminaire luminous flux 3800 lm,
connected load 34 W,
maximum luminous efficiency of luminaire 112 lm/W.
Power Faktor λ > 0,95,
Colour rendering index: Ra > 70
Light colour: warm white
Colour temperature: 3000 K
Colour locus tolerance (initial MacAdam) ≤ 5 SDCM
Cylindrical cover of impact-resistant PMMA, clear.
IP rating (DIN EN 60529): IP23
Windage area fw: 0.47 m2
Weight: 11.0 kg.
Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
