Lighting management in outdoor areas

The challenge

Which light management system not only provides energy-saving potential via the LED technology – but also the possibilities of current and future Smart City applications?

The solution

  • Interconnection of individual light points via wireless communication to form an intelligent network
  • Installation without structural changes to the existing lighting infrastructure
  • Configuration and control of the lighting network via web-based software with graphical user interface
  • Optimisation of lighting quality, energy efficiency and flexibility through innovative control and analysis options
  • Open interfaces to guarantee the future safety

Your advantages with LiveLink Outdoor

Reduce costs

energy savings of up to 50 % compared to LED lighting without control

Protect the climate and the environment

reduction of greenhouse gas emissions through additional energy savings

Ensure operational efficiency

reduction of control trips, proactive maintenance

Design the infrastructure to be future-safe

enable networking with other Smart City applications

Individual and simple control

Three possible light management solutions

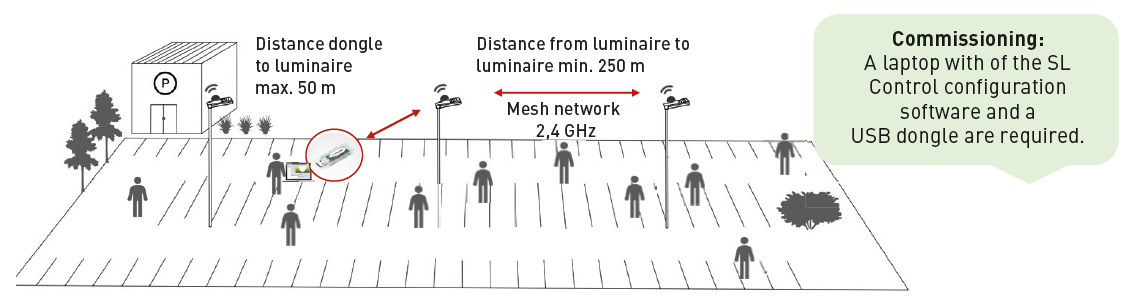

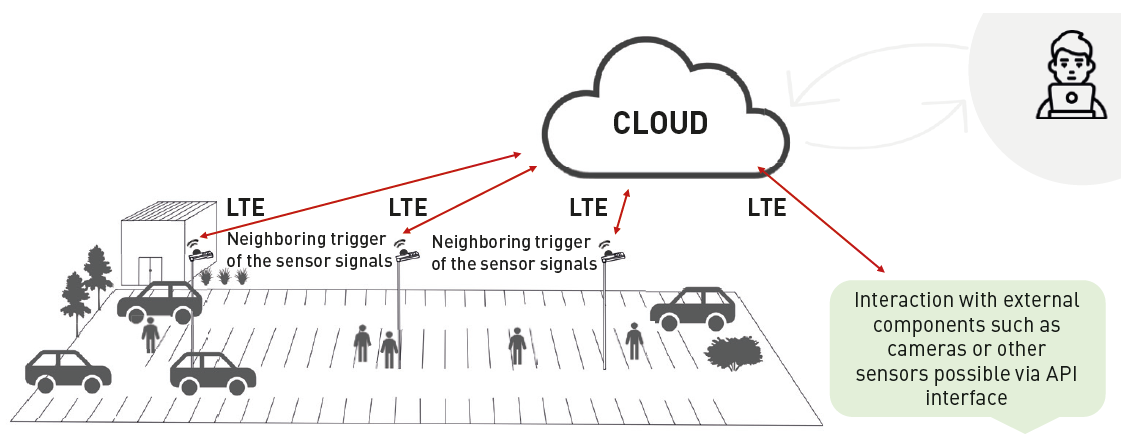

  Sensor single solution Self-regulating system Web-based system
Applications Suitable for single, independent light points Recommended for smaller projects such as br>Industrial and sports facilities, parking lots and roads Recommended for larger projects such as
industrial and sports facilities, locations with high traffic volumes, residential areas and parking lots
Benefits System-independent single solution for individual light points Ideal for small isolated solutions
Low-cost entry-level variant
Protected, individual system
Ideal for pilot installations
Ideal for large installations
Protected, individual system
Data in real time, statistics and analysis options
Control cabinet solution can be integrated
Functions Motion detection and dimming
Configuration of dimming level
Grouping of luminaires
Individual configuration of each luminaire
Grouping of luminaires
Individual configuration of each luminaire
Error message notifications
Configuration, control and monitoring of luminaires

LiveLink Outdoor

Suitable for: Public street lighting, areas (parks, paths and squares) and industrial areas

Livelink Outdoor, the scalable lighting control system, is revolutionizing street lighting in cities with its intelligent solution. It makes managing and controlling entire cities child's play and offers both users and citizens the opportunity to control lighting according to their individual needs. The solution has a modular structure and can be adapted to any project size. It enables self-sufficient configuration for smaller projects on site as well as web-based configuration and control for larger projects.

  • Intelligent additional functions through apps and public access
  • Simple plug and play installation thanks to the Zhaga standard
  • Different operating options - stand-alone or web-based

LiveLink Outdoor (Casambi)

Suitable for: Solutions close to buildings (parking lots, paths and squares), sports facilities as well as IOL (Indoor Outdoor Light applications)

From the control of indoor and outdoor lighting to the lighting design and emotional appeal of sports facilities: every outdoor area requires its own individual lighting solution. LiveLink offers a future-proof solution using wireless Bluetooth® technology that saves time, money and energy. With LiveLink Outdoor, parking lots, paths, squares and sports facilities can be illuminated efficiently. The system enables seamless integration and overall optimization of the lighting concept, including indoor and outdoor lighting.

  • Maximum flexibility: No cabling required thanks to wireless Bluetooth® technology.
  • Comprehensive control solution for both indoor and outdoor use
  • Sustainable and efficient: Reduced energy consumption thanks to intelligent luminaires and automated control.
  • Public lighting
    • etargeted dimming of LED luminaires (configured individually according to time, brightness or movement) reduces energy consumption without sacrificing comfort and safety
    • extends the service life of luminaires and reduces light pollution
    • on-site or web-based control
  • Industrial workshops
    • Safety for areas around industrial halls such as storage and logistics areas or factory roads
    • LiveLink Outdoor is a sophisticated lighting solution that not only provides employees, suppliers, customers and visitors with safety, but also orientation
    • On-site or web-based control
  • Building outdoor lighting and parking lots
    • The luminaires used must impress with the highest quality of light and prove themselves permanently under extreme conditions
    • LiveLink BLE offers a networked and more ecological solution and controls light exactly when it is needed
    • On-site or web-based control
  • Paths and places
    • LiveLink Outdoor controls light for safety and orientation - but only exactly when it is needed
    • On-site or web-based control
  • Sports facilities
    • LiveLink Sport Box for intelligent control of lighting in sports facilities such as tennis courts, sports fields and soccer pitches
    • Configuration and control conveniently via smartphone or tablet using the Casambi app
    • On-site control

LiveLink Outdoor light management in practice

Dortmund's light gets smart

Dortmund implements Germany's largest street lighting project. With 25,000 light points to be converted to LED technology and connected to a light management system by 2023, the Ruhr metropolis takes a further step towards becoming a smart city.

Smart and environmentally friendly through the forest

The TRILUX concept for the rapid cycle path from Stuttgart to Sindelfingen with a length of around eight kilometres finds favour: wirelessly connected smart luminaires that form a self-regulating network – and that guide cyclists safely through the forest thanks to running light.

Light management even simpler in the future

Maximum flexibility for the future

Smart Lighting Ready luminaires from TRILUX are already equipped with a single base or two combined bases standardised according to Zhaga. The Zhaga bases are located above and below the luminaire head. The luminaires can also be easily and effortlessly retrofitted later with a light management system and various sensors. Either singly or combined. This means the luminaires still offer maximum flexibility even after installation and remain state-of-the-art in the future.

LiveLink Outdoor-capable products

Complete overview

All solutions at a glance



LiveLink Outdoor

LiveLink Outdoor (Casambi)


Luminaire controller
Sportbox

Superordinate system properties

Area of application
Public street lighting / industry
Public street lighting

Indoor Outdoor Light / Lighting close to buildings /
Paths and squares / Industry
Sports facilities and building illumination
Type of system
Self-sufficient / web-based
Web-based

Self-sufficient / web-based
Self-sufficient / web-based

System features

Presence detection

Light scenes

Sequences

Animation
-
-

Control of several channels
up to 4
up to 8

up to 8
up to 2
Plug-and-play function

-
Cloud connection

possible
possible
Wireless connection (mesh/radio)
(mesh/radio)
(mesh or radio)

(mesh/radio)
(mesh/radio)
Integrated map view

-
-
Control via push-button

possible
Control via app
-

Control cabinet solutions

-
-
