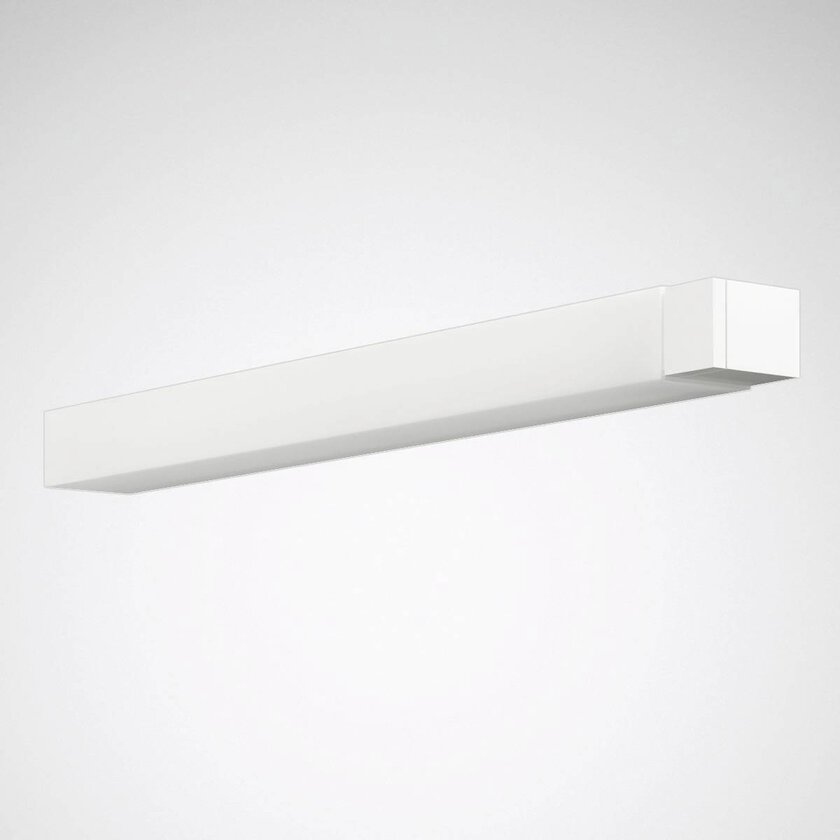

Acuro S LED1000ww ET 01, 6064340

TOC 6064340
EAN 4018242270149
Luminous efficacy (maximum) 119 lm/W
Luminaire luminous flux 950 lm
Connected load 8,00 W
Colour temperature 3000 K
Degree of protection IP40
Colour white
Weight 1,5 kg
  6 5 9
Design Awards

Product description

Luminaire type
Surface-mounted LED luminaires for ceiling and wall mounting.

Supplementary equipment
End cap with integral rocker switch.

Applications
Corridors, waiting zones, Hospitals, Care homes, Patient rooms, Sanitary areas.

Mounting methods
For horizontal or vertical mounting.

Optical system
With PMMA diffuser, opal. Finely structured surface. With Lambertian light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 25.

LED system
Luminaire luminous flux and light color fixed. Luminaire luminous flux 950 lm, connected load 8,00 W, Power Faktor λ > 0,9, luminous efficiency of luminaire 119 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020).

Luminaire body
Luminaire body of extruded aluminium. With integral cable channel on rear for cable routing with offset wall outlets. Surface coated white (RAL 9016). Dimensions (L x W) 638 mm x 54 mm, luminaire height 85 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection rating with wall mounting IP44, protection rating with ceiling mounting IP40. Safety class (EN 61140): I, impact resistance level in accordance with IEC 62262: , testing temperature of wire glow test in accordance with IEC 60695-2-11: {Reference (AttributeDefinition) not found: pattr3832572655998}. Weight: 1,5 kg.

Electrical version
With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority.

With Trilux after-sales promise: the luminaire is available for 10 years and spare parts (LED module, control gear unit and optical system) are available for 15 years from date of invoice. The right to make reasonable modifications in the interests of progress is reserved.


Disassembly instructions (PDF) for the product available at: https://www.trilux.com/EcoDesign

TOC 6064340

Suitable for the following support programs*
BMWK (BMU) (GER)
*No responsibility is taken for the correctness of this information. The applicant is responsible for verifying compliance with the requirements of the funding program.

Tender

Tender text with leading brand

"Acuro S LED1000ww ET 01
Surface-mounted LED luminaires for ceiling and wall mounting. End cap with integral rocker switch. For horizontal or vertical mounting. With PMMA diffuser, opal. Finely structured surface. With Lambertian light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 25. Luminaire luminous flux and light color fixed. Luminaire luminous flux 950 lm, connected load 8,00 W, luminous efficiency of luminaire 119 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of extruded aluminium. With integral cable channel on rear for cable routing with offset wall outlets. Surface coated white (RAL 9016). Dimensions (L x W) 638 mm x 54 mm, luminaire height 85 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection rating with wall mounting IP44, protection rating with ceiling mounting IP40. Safety class (EN 61140): I, impact resistance level in accordance with IEC 62262: , testing temperature of wire glow test in accordance with IEC 60695-2-11: {Reference (AttributeDefinition) not found: pattr3832572655998}. Weight: 1,5 kg. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
TRILUX Order code 6064340"

Copy text



Tender text without leading brand

"Surface-mounted LED luminaires for ceiling and wall mounting.
With Lambertian light distribution.
Luminous intensity distribution: direct-indirect
Luminaire body of extruded aluminium. With integral cable channel on rear for cable routing with offset wall outlets.
Colour of luminaire body: white, (RAL 9016)
Permissible ambient temperature (ta): -20 °C - +25 °C.
Mounting location: Wall without cut-out opening
With electronic control gear unit, switchable
Control gear unit is replaceable according to ecodesign requirements.
Mean rated service life L80(tq 25 °C) = 50,000 h.
Light source is replaceable according to ecodesign requirements.
Luminaire luminous flux and light color fixed.
Luminaire luminous flux 950 lm,
connected load 8,00 W,
luminous efficiency of luminaire 119 lm/W.
Power Faktor λ > 0,9,
Colour rendering index: Ra > 80
Light colour: warm white
Colour temperature: 3000 K
Colour locus tolerance (initial MacAdam) ≤ 3 SDCM
Dimensions (L x W) 638 mm x 54 mm, luminaire height 85 mm.
IP rating (DIN EN 60529): IP40
IP rating on room side: IP40
Weight: 1.5 kg.
Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
"
