InperlaLP C05 HR22 1800-840 ET 01, 6357440

TOC 6357440
EAN 4018242312719
Luminous efficacy (maximum) 113 lm/W
Luminaire luminous flux 1800 lm
Connected load 16,00 W
Colour temperature 4000 K
Degree of protection IP20
Colour white
Weight 1,3 kg
  6 9

Product description

Luminaire type

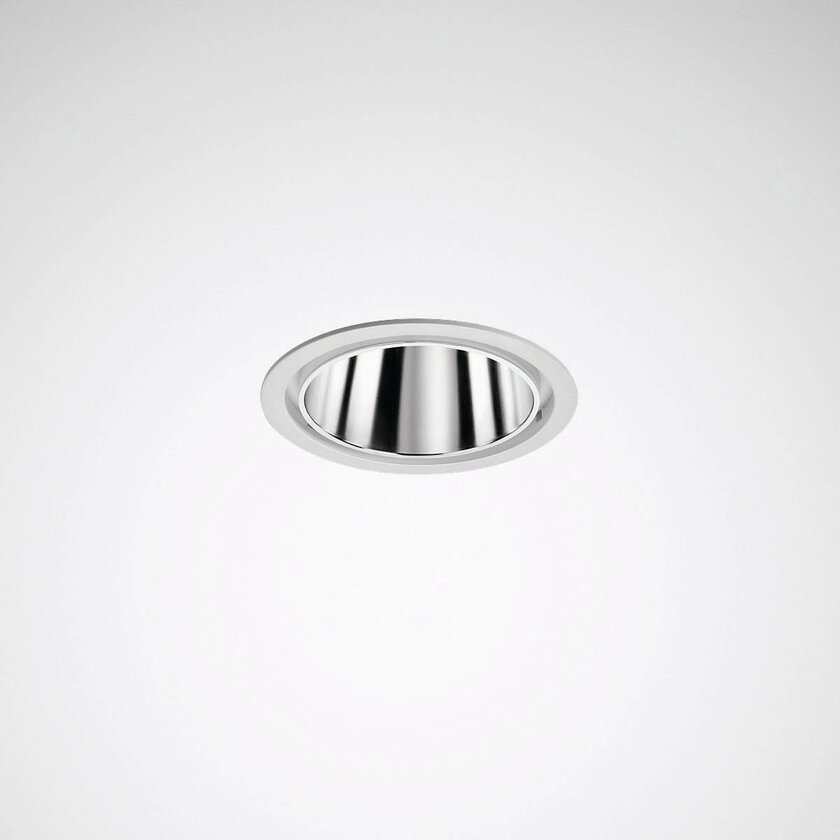

Compact LED downlight with round construction.

Applications
Innovative lighting of sales areas, foyers, corridors, conference rooms, hotels, restaurants and living spaces.

Mounting methods

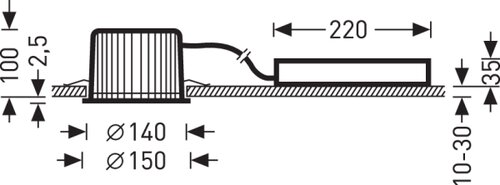

Recessed downlight for cut-out ceiling openings, Installation in cast concrete ceilings via accessories. Tool-free ceiling installation via rapid-mounting springs. Optically and technically matched refurbishment plates for ceiling apertures with larger ceiling cut-out dimensions are available as accessories in various versions. Cut-out opening Ø 140 mm, Recess depth 100 mm. IP54 protection rating on room side in combination with closed decorative cover.

Optical system

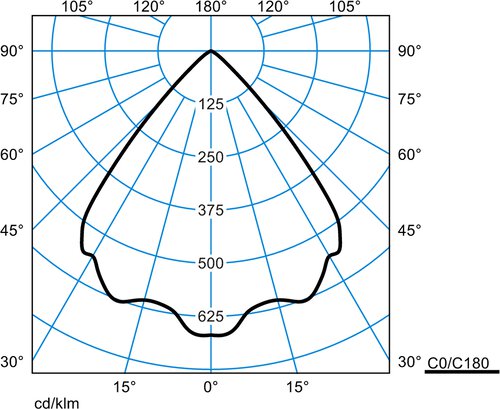

Aluminium reflector highly specular anodised. With symmetric wide light intensity distribution.

LED system
Luminaire luminous flux and light color fixed. Configured with one LED spot module. Luminaire luminous flux 1800 lm, connected load 16 W, Power Faktor λ > 0,9, maximum luminous efficiency of luminaire 113 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 70,000 h, mean rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020).

Luminaire body
Luminaire body of die-cast aluminium. Surface coated white (RAL 9016). External dimensions of ceiling ring Ø 150 mm, luminaire height 103 mm. Luminaire body and heat sink form a compact unit. Permissible ambient temperature (ta): -20 °C - +25 °C. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK06, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 1,3 kg.

Electrical version
With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). With 3-pole terminal to 2.5 mm² for mains connection and further wiring. Switchable. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority.

With Trilux after-sales promise: the luminaire is available for 10 years and spare parts (LED module, control gear unit and optical system) are available for 15 years from date of invoice. The right to make reasonable modifications in the interests of progress is reserved.


Disassembly instructions (PDF) for the product available at: https://www.trilux.com/EcoDesign

TOC 6357440

Suitable for the following support programs*
BMWK (BMU) (GER)
*No responsibility is taken for the correctness of this information. The applicant is responsible for verifying compliance with the requirements of the funding program.

Tender

Tender text with leading brand

InperlaLP C05 HR22 1800-840 ET 01
Compact LED downlight with round construction. Recessed downlight for cut-out ceiling openings, Installation in cast concrete ceilings via accessories. Tool-free ceiling installation via rapid-mounting springs. Optically and technically matched refurbishment plates for ceiling apertures with larger ceiling cut-out dimensions are available as accessories in various versions. Cut-out opening Ø 140 mm, Recess depth 100 mm. IP54 protection rating on room side in combination with closed decorative cover. Aluminium reflector highly specular anodised. With symmetric wide light intensity distribution. Luminaire luminous flux and light color fixed. Configured with one LED spot module. Luminaire luminous flux 1800 lm, connected load 16 W, maximum luminous efficiency of luminaire 113 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 70,000 h, mean rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of die-cast aluminium. Surface coated white (RAL 9016). External dimensions of ceiling ring Ø 150 mm, luminaire height 103 mm. Luminaire body and heat sink form a compact unit. Permissible ambient temperature (ta): -20 °C - +25 °C. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK06, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 1,3 kg. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). With 3-pole terminal to 2.5 mm2 for mains connection and further wiring. Switchable. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
TRILUX Order code 6357440

Copy text



Tender text without leading brand

Compact LED downlight with round construction.
Recessed downlight for cut-out ceiling openings, Installation in cast concrete ceilings via accessories. Tool-free ceiling installation via rapid-mounting springs. Optically and technically matched refurbishment plates for ceiling apertures with larger ceiling cut-out dimensions are available as accessories in various versions.
With symmetric wide light intensity distribution.
Luminous intensity distribution: direct
Reflector material: Miro Silver, PMMA
Luminaire body of die-cast aluminium.
Colour of luminaire body: white, (RAL 9016)
Permissible ambient temperature (ta): -20 °C - +25 °C.
Mounting location: Ceiling with cut-out opening, Ceiling with casting surround, Ceiling with panel system, System ceiling with exposed grid, System ceiling with concealed grid
With electronic control gear unit, switchable
Control gear unit is replaceable according to ecodesign requirements.
Mean rated service life L80(tq 25 °C) = 70,000 h, mean rated service life L85(tq 25 °C) = 50,000 h.
Light source is replaceable according to ecodesign requirements.
Luminaire luminous flux and light color fixed.
Luminaire luminous flux 1800 lm,
connected load 16 W,
maximum luminous efficiency of luminaire 113 lm/W.
Power Faktor λ > 0,9,
Colour rendering index: Ra > 80
Light colour: neutral white
Colour temperature: 4000 K
Colour locus tolerance (initial MacAdam) ≤ 3 SDCM
External dimensions of ceiling ring Ø 150 mm, luminaire height 103 mm.
IP rating (DIN EN 60529): IP20
IP rating on room side: IP20
Weight: 1.3 kg.
Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
