Grado Twin

GradoTW 3P WR-GZ 2x50-840 M43 ET 01

TOC: 9917340
Luminaire colour: RAL9016 Traffic white

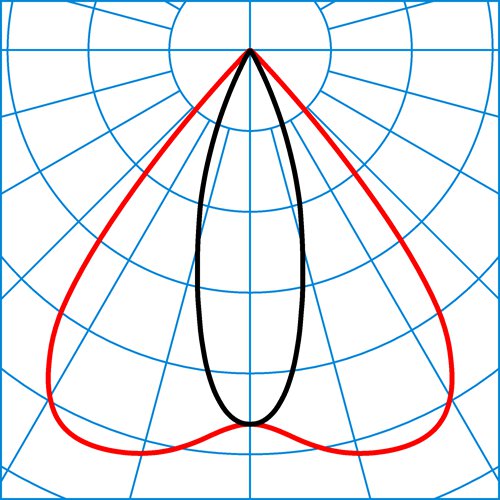

Light distribution curve: Gangzone (GZ)
Light emission: direct
Rated luminous flux: 10230 lm
Connected load: 68 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 150 lm/W
Colour temperature: 4000 K
Colour rendering index: > 80
Glare limitation: 5.9 UGR_C0
29.8 UGR_C90

TOC: 9917340
Luminaire colour: RAL9016 Traffic white
Light distribution curve: Gangzone (GZ)
Light emission: direct
Rated luminous flux: 10230 lm
Connected load: 68 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 150 lm/W
Colour temperature: 4000 K
Colour rendering index: > 80
Glare limitation: 5.9 UGR_C0
29.8 UGR_C90
Ingress Protection (IP) rating: IP20
Protection rating on room side: IP20
Protection class: I
Impact resistance (IK): IK00
Shape: rectangular
Dimensions: 486 x 90 x 140 mm
Weight: 2,7 kg
Emergency light available: No
Light management system: -
