Rail
Invisible Connection. Visible Impact.
Flexible elegance for the office
With its optimised design, the track conquers the office: Rail bundles flexible power supply and control lines for luminaires in a slim aluminium profile. Flush Invisible Adapters and inserts as well as the high-quality fine surface structure emphasise the elegant effect in the space.
Flexible elegance for the office
With its optimised design, the track conquers the office: Rail bundles flexible power supply and control lines for luminaires in a slim aluminium profile. Flush Invisible Adapters and inserts as well as the high-quality fine surface structure emphasise the elegant effect in the space.
Smart and powerful

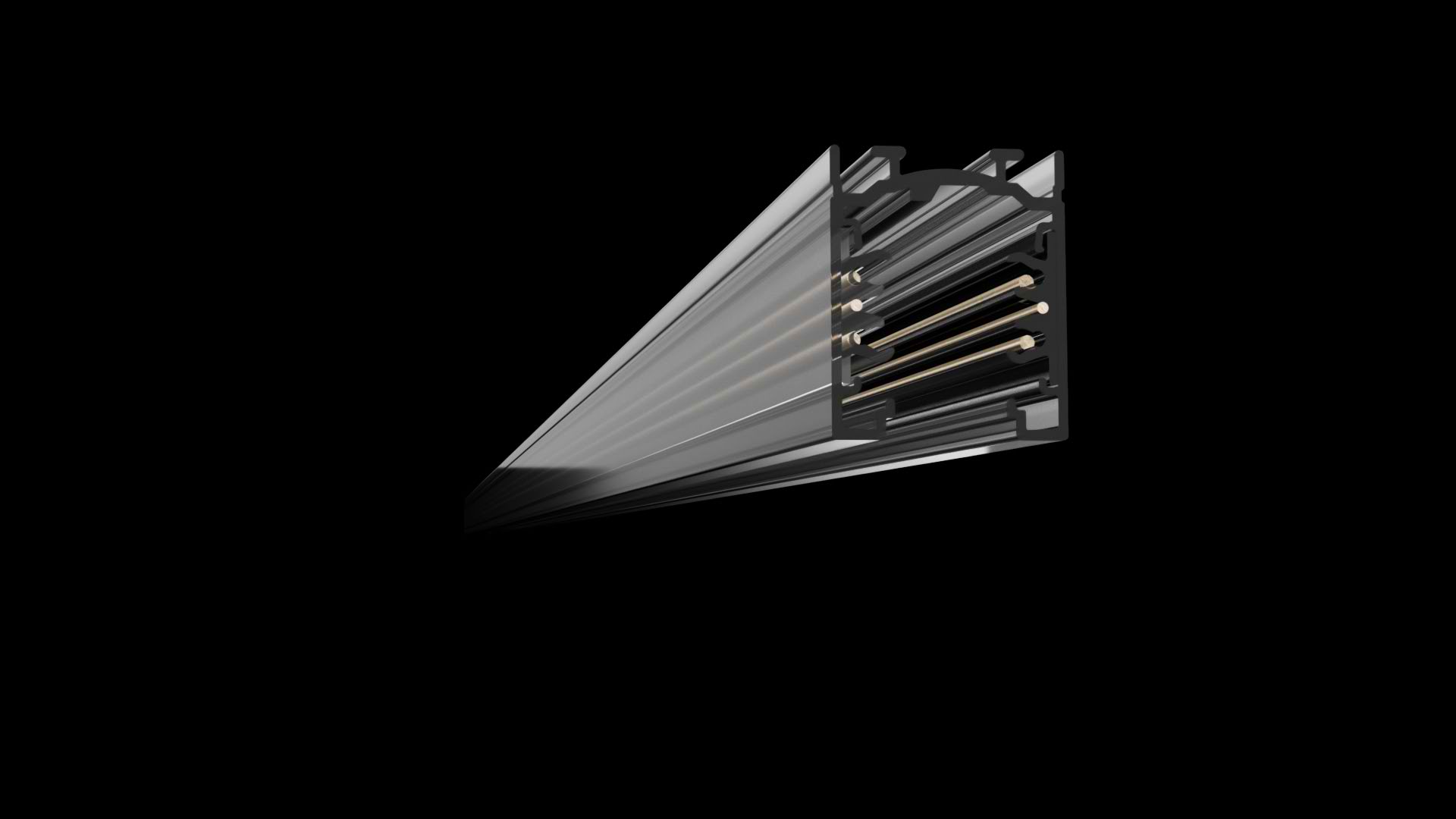

As a 230V track, Rail does not require a separate converter, enables long distances without voltage losses and always has enough power reserve for the higher luminous fluxes in office applications. The profile contains 6 conductors for 3 separately switched luminaire groups and DALI control lines for light management, for example with LiveLink. Alternatively: wireless control with Casambi.
Smart and powerful
As a 230V track, Rail does not require a separate converter, enables long distances without voltage losses and always has enough power reserve for the higher luminous fluxes in office applications. The profile contains 6 conductors for 3 separately switched luminaire groups and DALI control lines for light management, for example with LiveLink. Alternatively: wireless control with Casambi.
In line with the spatial concept and architecture

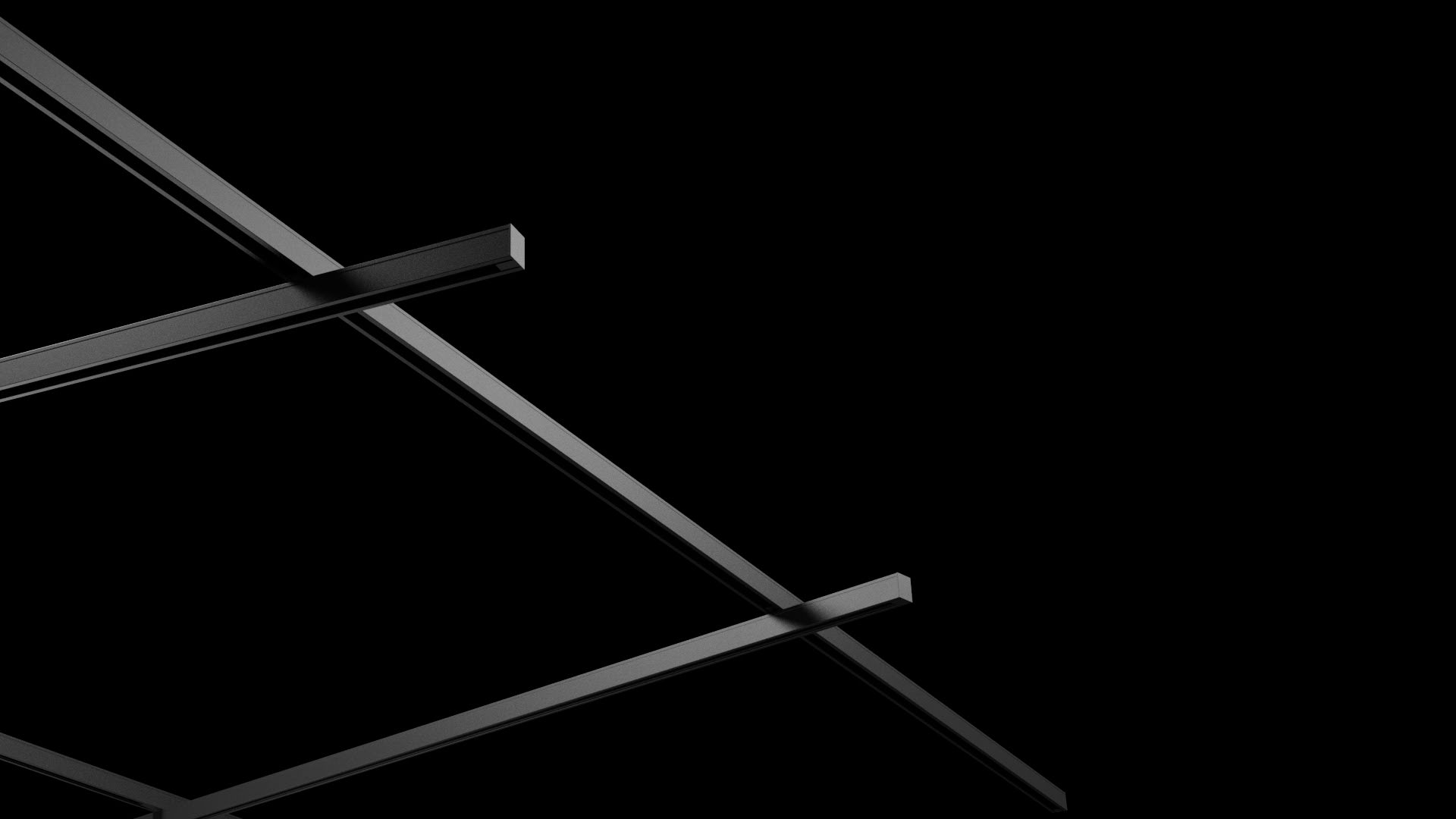

The Rail is extremely versatile and easy to plan: it can be mounted on ceilings or walls, installed in suspended ceilings or plastered in. If suspended, it can also illuminate indirectly. Rail is available in black and white or, on request, in individual colours and curved – for complete design flexibility.
In line with the spatial concept and architecture
The Rail is extremely versatile and easy to plan: it can be mounted on ceilings or walls, installed in suspended ceilings or plastered in. If suspended, it can also illuminate indirectly. Rail is available in black and white or, on request, in individual colours and curved – for complete design flexibility.
Emotional accents for multi-space offices

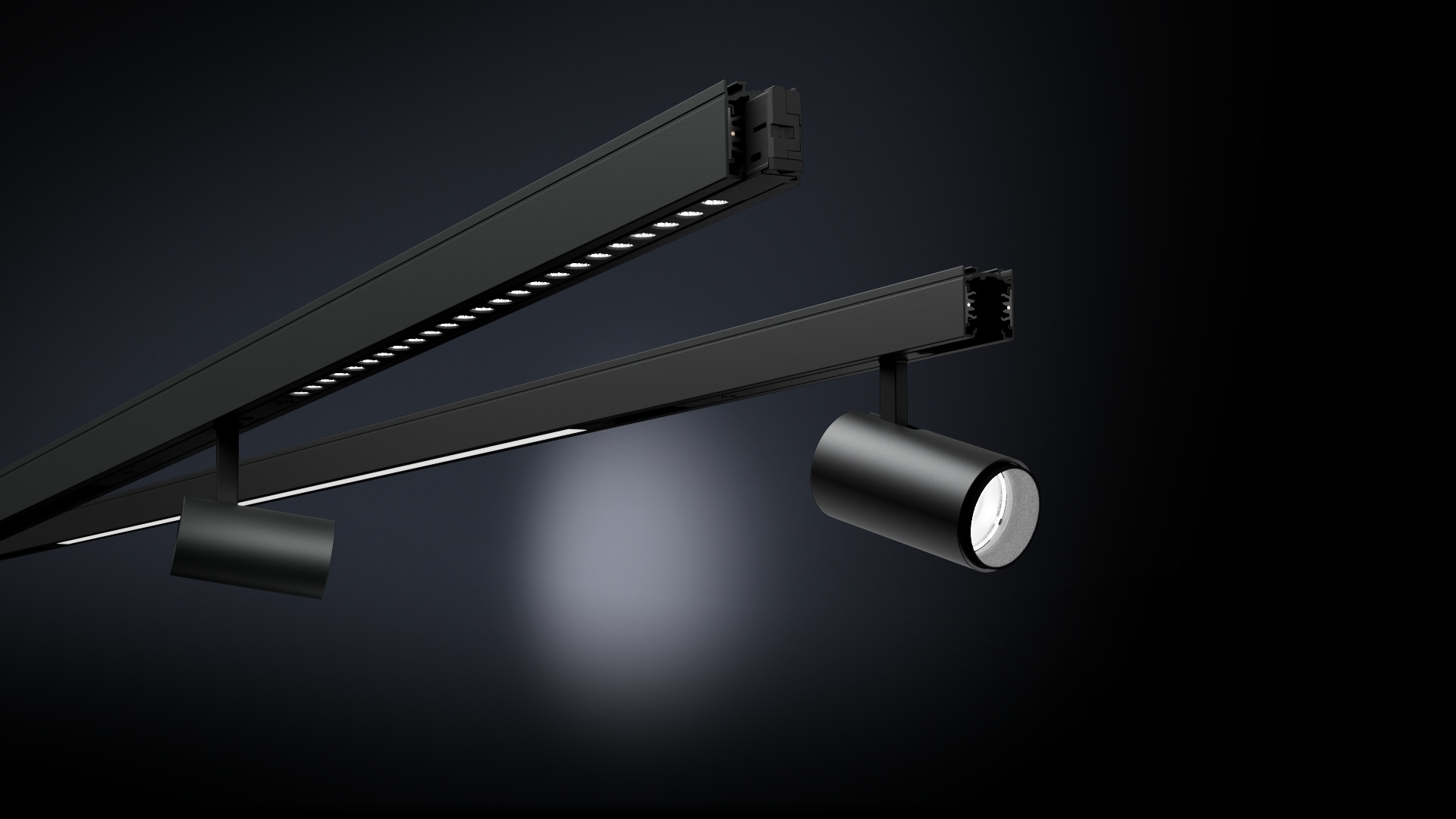

Use spotlights, flush-mounted linear inserts and pendant luminaires to create high-contrast, atmospheric lighting moods wherever relaxation or informal encounters are important, and if the room is to be optimally displayed.
Emotional accents for multi-space offices
Use spotlights, flush-mounted linear inserts and pendant luminaires to create high-contrast, atmospheric lighting moods wherever relaxation or informal encounters are important, and if the room is to be optimally displayed.
Design
With flush-mounted inserts and Invisible Adapters, the Rail as a 230V track is as elegant and minimalist as only low voltage track systems can be. High-quality design down to the last detail: the profile with powder-coated, finely textured surface, the matching TRILUX luminaires and the design-coordinated accessories.
Rail is available in black and white or, on request, in individual colours and curved – for complete design flexibility.
| Rail | Linell (flush-mounted linear inserts) | |
| Mounting methods | Recessed, plastered, surface-mounted, suspended | 3-circuit track |
| Lengths | Recessed, plastered, surface-mounted: 1,000 mm, 2,000 mm, 3,000 mm, 4,000 mmSuspended: 1,405/1,500 mm, 2,810/2,905 mm | 500 mm, 1,000 mm, 1,500 mm |
| Colours | white (RAL 9016), black (RAL 9005), Track available in other RAL colors on request, accessories such as feeders and connectors not | white (RAL 9016), black (RAL 9005), other colours on request |
| Electrical version | ETDD | ETDD |
| Optics | - | Opal, lens, wallwasher |
| Glare reduction | - | Lens: UGR <19 |
| Energy efficiency | - | up to 130 lm/W |
| Lumen packages | - | Opal: 1,000 lm, 2,000 lm, 3,000 lm Lens: 1,200 lm, 2,500 lm, 3,700 lmWallwasher: 600 lm, 1,200 lm, 2,500 lm |
| Service life | - | L90 50,000 h |
| Colour rendering | - | CRI 80, CRI 90 |
| Colour temperatures | - | 2,700 K, 3,000 K, 4,000 K |
