FaciellaS

Faciella Slim 40 RB20R/7600-840 6G1 ETDD

TOC: 7396551
Luminaire colour: DB703 micaceous iron oxide

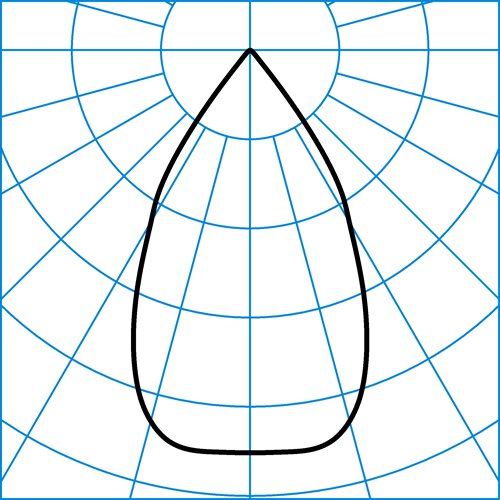

Light distribution curve: rotationally sym. wide (RB)
Light emission: direct
Rated luminous flux: 7600 lm
Connected load: 80 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 95 lm/W
Colour temperature: 4000 K
Colour rendering index: > 80
Ingress Protection (IP) rating: IP65

TOC: 7396551
Luminaire colour: DB703 micaceous iron oxide
Light distribution curve: rotationally sym. wide (RB)
Light emission: direct
Rated luminous flux: 7600 lm
Connected load: 80 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 95 lm/W
Colour temperature: 4000 K
Colour rendering index: > 80
Ingress Protection (IP) rating: IP65
Protection class: I
Impact resistance (IK): IK10
Hot wire resistance: 850 °C
Shape: around
Mounting type: Surface-mounting, Directional mounting
Dimensions: 95 x 368 x 355 mm
Weight: 5,3 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Name	Description	Weight
Faciella 15/20 ES 6332300	Faciella 15/20 Ground stake.	0,4 kg	Add to watchlist Add to product comparison Downloads
Altigo G2 Mini Connector IP68 6968300	Rapid connection system IP68,	0,03 kg	Add to watchlist Add to product comparison Downloads
Faciella Slim 40 ZRGE 8509800	Ribbed glass of hardened glass. For luminaire type Faciella Slim 40. Colour black.	0,8 kg	Add to watchlist Add to product comparison Downloads

3 from 6 accessories
