Juno PL

JNPL 3P L-OVL 30-830 M41 ETDD L1,5 01

TOC: 9812551
Luminaire colour: RAL9016 Traffic white

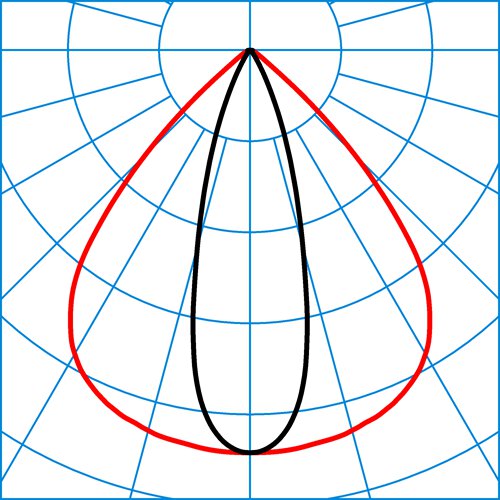

Light distribution curve: Folding reflector oval (FHRSO)
Light emission: direct
Rated luminous flux: 2810 lm
Connected load: 19 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 148 lm/W
Colour temperature: 3000 K
Colour rendering index: > 80
Glare limitation: 15.7 UGR_C0
26.8 UGR_C90

TOC: 9812551
Luminaire colour: RAL9016 Traffic white
Light distribution curve: Folding reflector oval (FHRSO)
Light emission: direct
Rated luminous flux: 2810 lm
Connected load: 19 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 148 lm/W
Colour temperature: 3000 K
Colour rendering index: > 80
Glare limitation: 15.7 UGR_C0
26.8 UGR_C90
Ingress Protection (IP) rating: IP20
Protection rating on room side: IP20
Protection class: I
Impact resistance (IK): IK00
Shape: other
Dimensions: 178 x 115 x 74 mm
Weight: 4 kg
Emergency light available: No
Light management system: -
