Faster. Safer. Smarter.

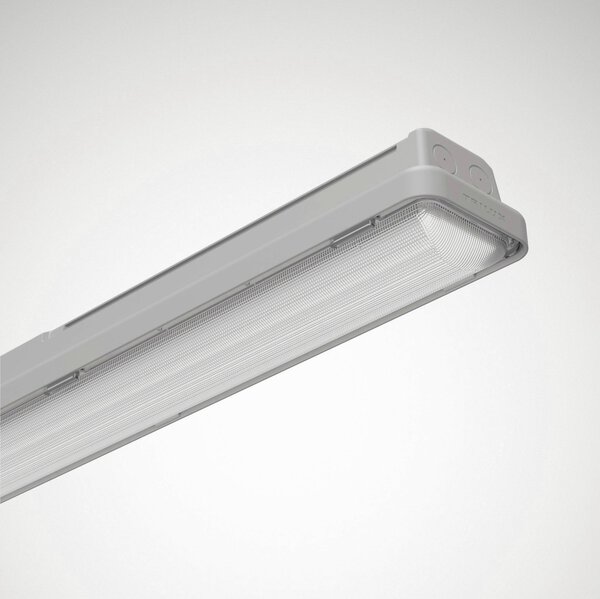

Extremely innovative for extreme conditions – that’s what the ‘X’ stands for in the X-Range of weather-proof luminaires with IP66 protection rating. Extremely intuitive to use: the catch system sets the standard in terms of easy installation and operational safety. Extremely versatile with high quality of light: thanks to its consistently modular design.
The technology is revolutionary but the product series are familiar: in the X-Range, Oleveon X is the cost-effective solution for a wide range of standard applications. With additional light distributions and materials as well as enhanced performance, Aragon X is the solution for demanding applications.
The completely redesigned catch system revolutionises the entire installation process. The intuitive, time-saving installation saves on costs, minimises errors and thus enhances operational safety – particularly in the case of weather-proof luminaires.
The light from X-Range luminaires is particularly uniform and high-quality: this is due to the newly developed prismatic optic, which also effectively reduces glare and yellow fringing. Practical light distributions enable efficient and nuanced lighting design for a wide range of applications.
The UPG versions of the X-Range luminaires combine the modular design with pre-wired plug-in connections between the driver and the light module. This makes it easier to do later upgrades to adapt the luminaires to changing conditions, thus extending their service life: a contribution to conserving resources.
Its modular design means the X-Range is flexible and future-proof. A rotatable gear tray integrates components such as LED module, driver, sensor technology or emergency light – either factory-fitted or for retrofitting. Sensors, light distribution or connection terminals can be adjusted as required by rotating the gear tray.
Protection against moisture and dust (IP66), ambient temperatures up to 60°C

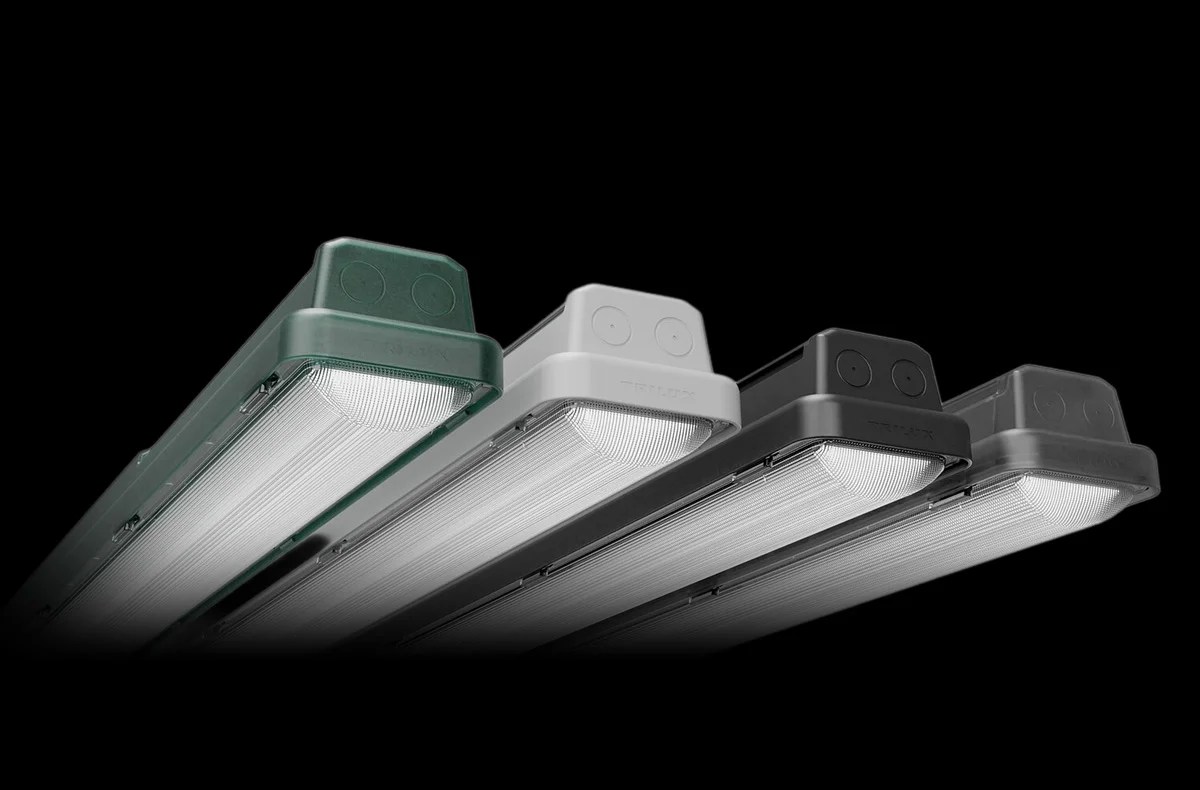

X-Range luminaires are available in three lengths (600, 1200 and 1500 mm) and in four housing colours (grey, green, black and clear)

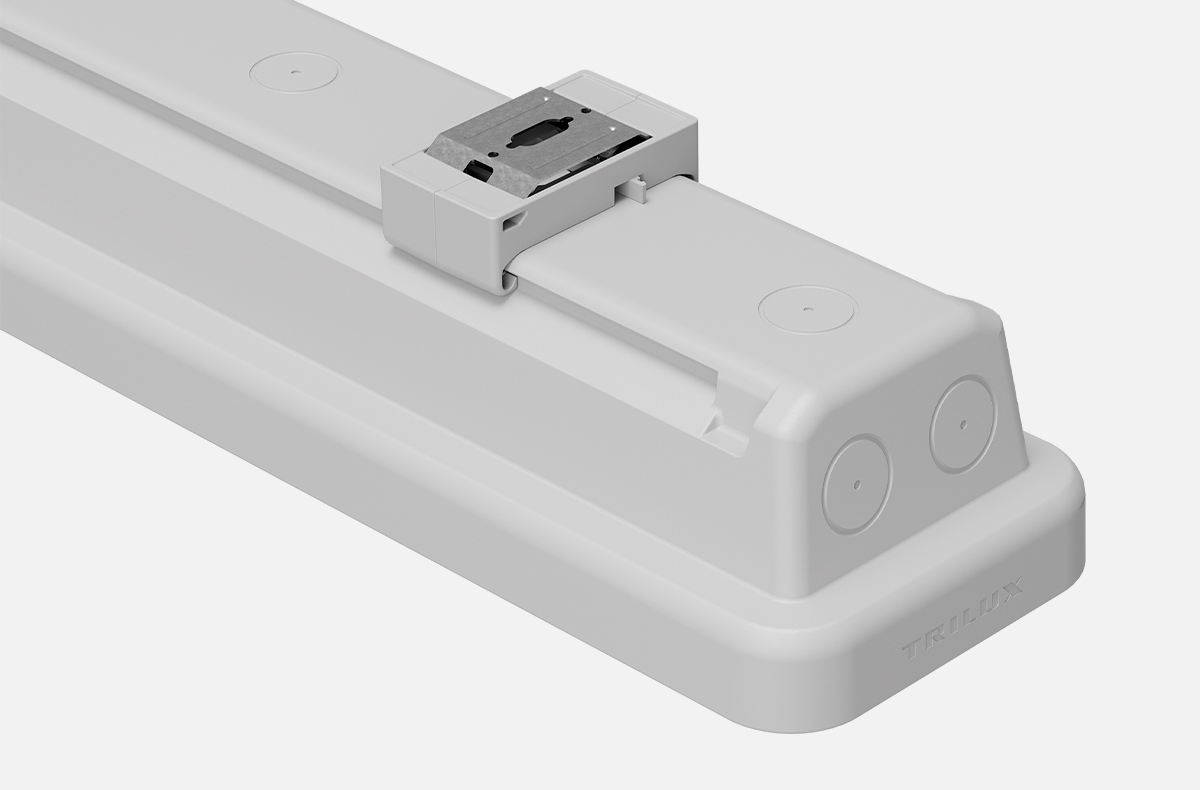

High impact resistance up to IK08; anti-theft protection for ceiling clips or catches available as an accessory

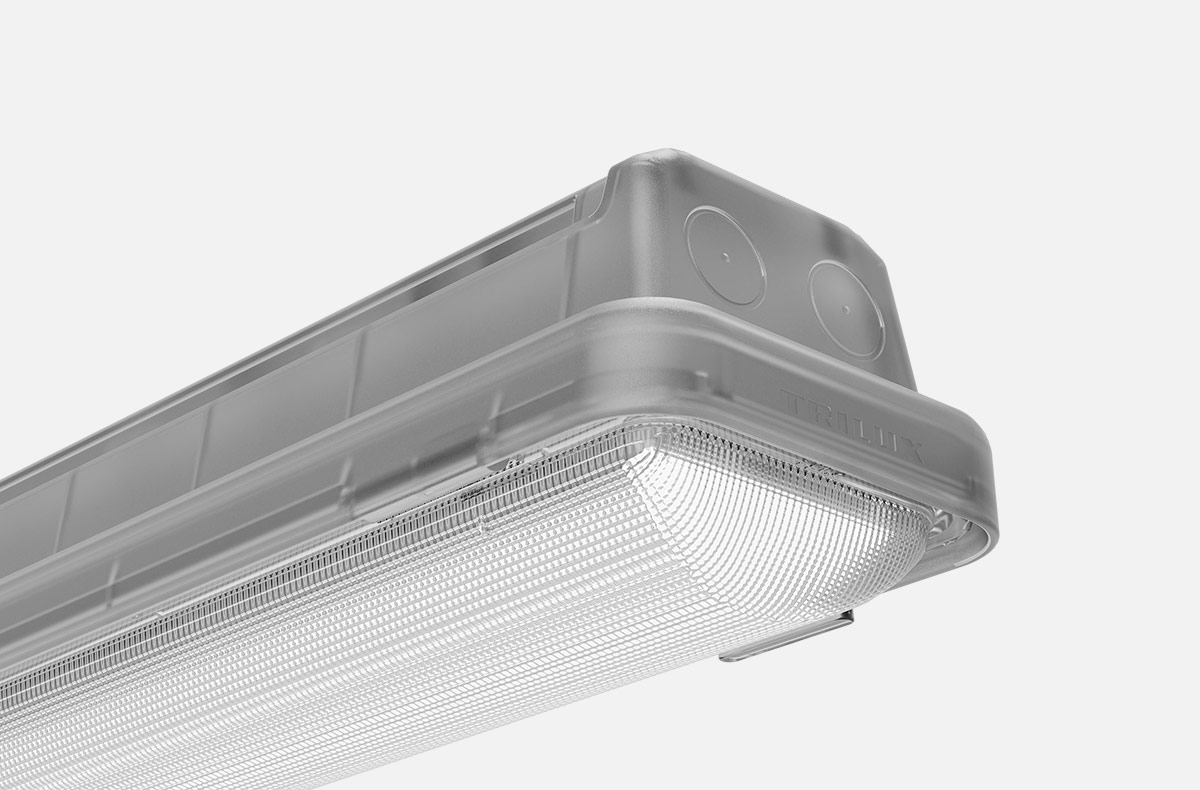

PC for mechanical protection, PMMA for high light transmission, PA for chemical resistance
With flexible mounting points, a variety of cable entry points and through-wiring, X-Range luminaires are ideal for refurbishment projects
