Lightpanel Convision

LPCV 3P2-ST L-AN 01 40-940 K06 ETBLE 01

TOC: 9442563
Luminaire colour: RAL9016 Traffic white

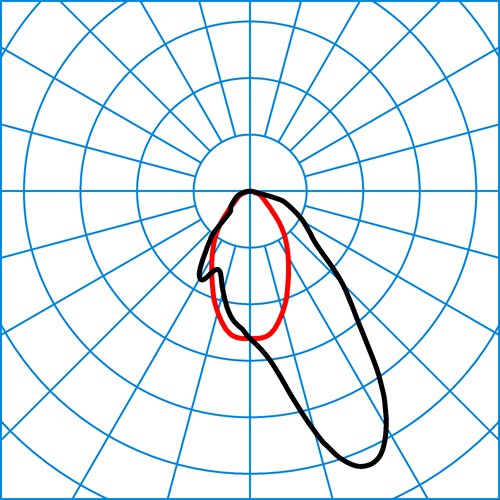

Light distribution curve: asymmetric Narrow (AN)
Light emission: direct
Rated luminous flux: 4180 lm
Connected load: 42 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 100 lm/W
Colour temperature: 4000 K
Colour rendering index: > 90
Ingress Protection (IP) rating: IP20

TOC: 9442563
Luminaire colour: RAL9016 Traffic white
Light distribution curve: asymmetric Narrow (AN)
Light emission: direct
Rated luminous flux: 4180 lm
Connected load: 42 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 100 lm/W
Colour temperature: 4000 K
Colour rendering index: > 90
Ingress Protection (IP) rating: IP20
Protection rating on room side: IP20
Protection class: I
Impact resistance (IK): IK00
Hot wire resistance: 650 °C
Shape: rectangular
Dimensions: 616 x 137 x 88 mm
Weight: 2,8 kg
Emergency light available: No
Light management system: Casambi
