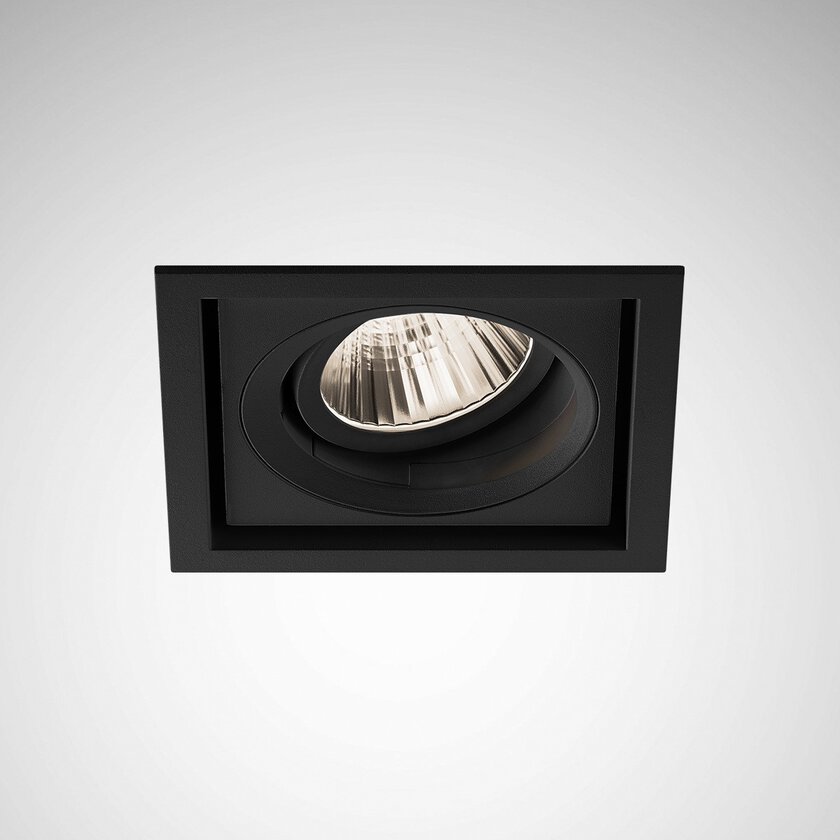

Sistema Compact Cardan

SisC 1Z RF-MF 40-BC M49 ETDD 05

TOC: 9979151
Luminaire colour: RAL9005 Jet black
Light distribution curve: Medium Flood (MF)
Light emission: direct
Rated luminous flux: 3375 lm
Connected load: 40 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 84 lm/W
Colour temperature: 3100 K
Colour rendering index: > 95
Glare limitation: 18.1 UGR_C0
18.1 UGR_C90

TOC: 9979151
Luminaire colour: RAL9005 Jet black
Light distribution curve: Medium Flood (MF)
Light emission: direct
Rated luminous flux: 3375 lm
Connected load: 40 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 84 lm/W
Colour temperature: 3100 K
Colour rendering index: > 95
Glare limitation: 18.1 UGR_C0
18.1 UGR_C90
Ingress Protection (IP) rating: IP20
Protection rating on room side: IP20
Protection class: II
Impact resistance (IK): IK00
Shape: square

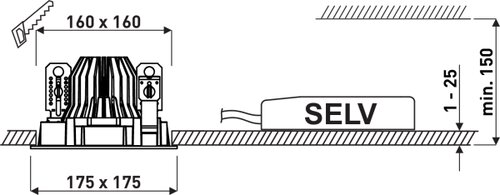

Installation dimensions: 160 x 160 x 150 mm
Dimensions: 175 x 175 x 110 mm
Weight: 1,2 kg
Emergency light available: No
