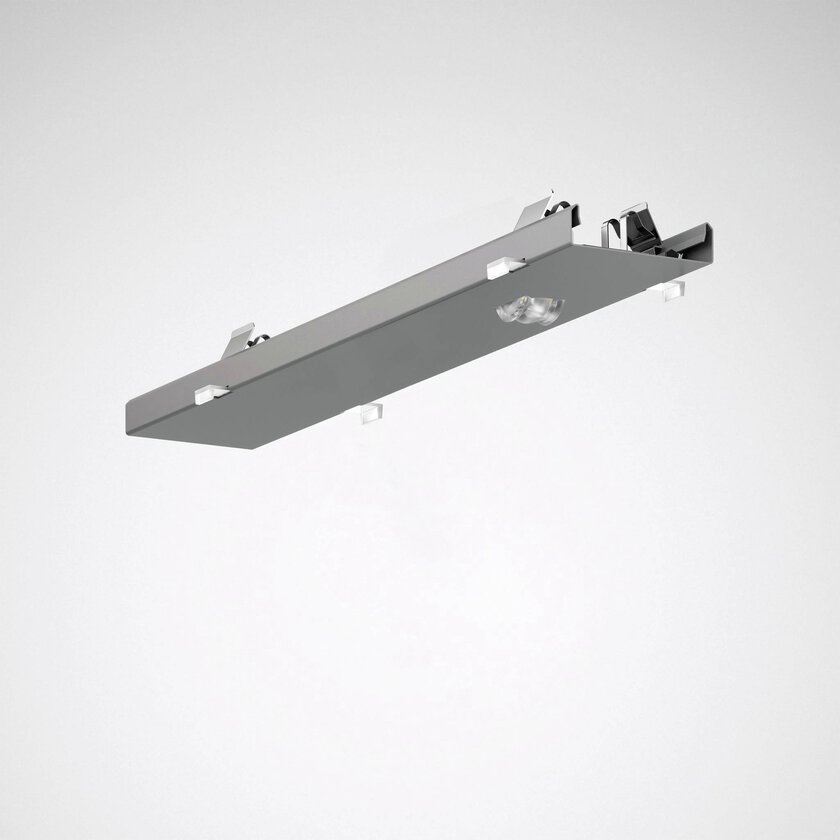

    • 7650 L-AHB 230V CEAG L37 03
    • 7650 L-AHB 230V CEAG L37 03 | Dimensional sketch of the product
    • 7650 L-AHB 230V CEAG L37 03 | Light distribution curve of the product
    ceSymbol
    protectionClassSymbol

    765... E-Line

    7650 L-AHB 230V CEAG L37 03

    TOC
    7378500
    Luminaire colour
    RAL9006 White aluminium
    Light distribution curve
    Narrow (N)
    Light emission
    direct
    Rated luminous flux
    285 lm
    Connected load
    3,9 W
    Luminous efficacy
    73 lm/W
    Colour temperature
    4000 K
    Colour rendering index
    > 70
    Glare limitation
    17.6 UGRC0
    25.9 UGRC90
    Protection rating
    IP20

    Product features

    TOC
    7378500
    Luminaire colour
    RAL9006 White aluminium
    Light distribution curve
    Narrow (N)
    Light emission
    direct
    Rated luminous flux
    285 lm
    Connected load
    3,9 W
    Luminous efficacy
    73 lm/W
    Colour temperature
    4000 K
    Colour rendering index
    > 70
    Glare limitation
    17.6 UGRC0
    25.9 UGRC90
    Protection rating
    IP20
    Protection class
    I
    Impact resistance (IK)
    IK02
    Hot wire resistance
    650 °C
    Mounting type
    Surface-mounting, Suspension
    Dimensions
    368 x 62 x 50 mm
    Weight
    0,5 kg
    Emergency light available
    Yes
    Material housing
    Steel

    • Product description
    • Tender text with leading brand
    • Tender text
    • Downloads

    Downloads

    No downloads available for this product

    Tender text

    Product description

    Lighting technology

    Select light distribution
    • 7650 L-AHB 230V CEAG L37 03

    Widget Sidebar

    Light calculator

    Call up settings

    Mounting methodSuspended / hanging
    7650 L-AHB 230V CEAG L37 03
    7650 L-AHB 230V CEAG L37 03

    x
    x
    0.7 / 0.5 / 0.2
    0.8 / 0.7 / 0.3
    0.8 / 0.7 / 0.2
    0.8 / 0.5 / 0.3
    0.8 / 0.5 / 0.2
    0.8 / 0.5 / 0.1
    0.8 / 0.3 / 0.2
    0.8 / 0.3 / 0.1
    0.7 / 0.7 / 0.2
    0.7 / 0.5 / 0.2
    0.7 / 0.3 / 0.2
    0.5 / 0.7 / 0.2
    0.5 / 0.5 / 0.3
    0.5 / 0.5 / 0.2
    0.5 / 0.5 / 0.1
    0.5 / 0.3 / 0.3
    0.5 / 0.3 / 0.2
    0.5 / 0.3 / 0.1
    0.3 / 0.3 / 0.1
    0.3 / 0.1 / 0.1
    0.0 / 0.0 / 0.0

    Light calculator

    lightCalculator.image.alt

    Light calculator

    Mounting methodSuspended / hanging
    7650 L-AHB 230V CEAG L37 03
    7650 L-AHB 230V CEAG L37 03

    x
    x
    0.7 / 0.5 / 0.2
    0.8 / 0.7 / 0.3
    0.8 / 0.7 / 0.2
    0.8 / 0.5 / 0.3
    0.8 / 0.5 / 0.2
    0.8 / 0.5 / 0.1
    0.8 / 0.3 / 0.2
    0.8 / 0.3 / 0.1
    0.7 / 0.7 / 0.2
    0.7 / 0.5 / 0.2
    0.7 / 0.3 / 0.2
    0.5 / 0.7 / 0.2
    0.5 / 0.5 / 0.3
    0.5 / 0.5 / 0.2
    0.5 / 0.5 / 0.1
    0.5 / 0.3 / 0.3
    0.5 / 0.3 / 0.2
    0.5 / 0.3 / 0.1
    0.3 / 0.3 / 0.1
    0.3 / 0.1 / 0.1
    0.0 / 0.0 / 0.0

    Downloads

    No downloads available for this product

    Accessories list

    NameDescriptionWeight
    07650 L150 7+7LV E 150 01
    07650 L150 7+7LV E 150 01
    7274200
    		Trunking for E-Line 7651 continuous line single luminaires or continuous line terminations. Length of the trunking: 1475 mm. Surface coated white. With 7-core through-wiring for segmenting circuits and supplementary 7-core through-wiring for additional emergency light or light management uses.2,14 kgAdd to watchlistAdd to product comparisonDownloads
    07650 L300 7+7LV 150 01
    07650 L300 7+7LV 150 01
    7274300
    		Trunking for E-Line 7651 continuous line applications. To simplify installation, a pre-assembled continuous line coupler is included in the scope of delivery for connection to a further trunking unit. Length of the trunking: 2950 mm. Surface coated white. With 7-core through-wiring for segmenting circuits and supplementary 7-core through-wiring for additional emergency light or light management uses.4,27 kgAdd to watchlistAdd to product comparisonDownloads
    07650 L450 7+7LV 150 01
    07650 L450 7+7LV 150 01
    7274400
    		Trunking for E-Line 7651 continuous line applications. To simplify installation, a pre-assembled continuous line coupler is included in the scope of delivery for connection to a further trunking unit. Length of the trunking: 4425 mm. Surface coated white. With 7-core through-wiring for segmenting circuits and supplementary 7-core through-wiring for additional emergency light or light management uses.6,42 kgAdd to watchlistAdd to product comparisonDownloads
    3 from 6 accessories
