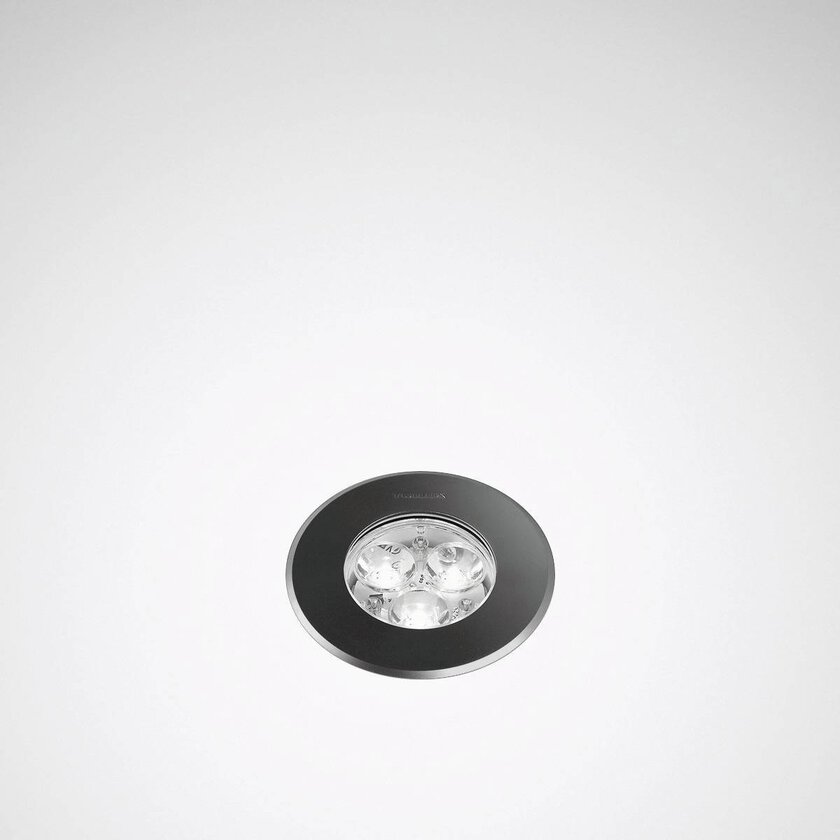

Lutera 90

8501RB2L/400-green 1G1 ETD 05

TOC: 6489157
Luminaire colour: RAL9005 Jet black

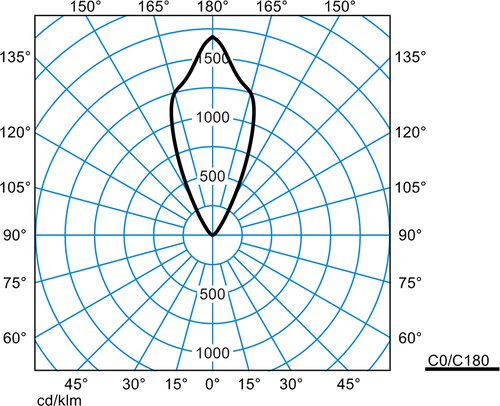

Light distribution curve: rotationally sym. wide (RB)
Light emission: direct
Rated luminous flux: 400 lm
Connected load: 8 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 50 lm/W
Colour rendering index: > 0
Ingress Protection (IP) rating: IP68
Protection class: II

TOC: 6489157
Luminaire colour: RAL9005 Jet black
Light distribution curve: rotationally sym. wide (RB)
Light emission: direct
Rated luminous flux: 400 lm
Connected load: 8 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 50 lm/W
Colour rendering index: > 0
Ingress Protection (IP) rating: IP68
Protection class: II
Impact resistance (IK): IK10
Hot wire resistance: 650 °C
Mounting type: Ground recessed
Installation dimensions: Ø 80 x 90 mm
Dimensions: Ø 95 x 93 mm
Weight: 0,6 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Ground recess housings

Name	Description	Weight
08501 ET 6323600	Ground recessing bowl of weather-resistant PVC tube.	0,121 kg	Add to watchlist Add to product comparison Downloads
08501 ETE 6378200	Ground recessing bowl of weather-resistant PVC tube. Expanded construction for simple cable routing.	0,5 kg	Add to watchlist Add to product comparison Downloads

Filter

Name	Description	Weight
Lutera 90 ZFM 7005300	Filter of hardened glass, matt.	0,1 kg	Add to watchlist Add to product comparison Downloads

Lighting technology

Select light distribution

No downloads available for this product
