8841LS

8841LS-Ü 260-RB6L/2200-740 3G2 ET

TOC: 8108040
Luminaire colour: DB703 micaceous iron oxide

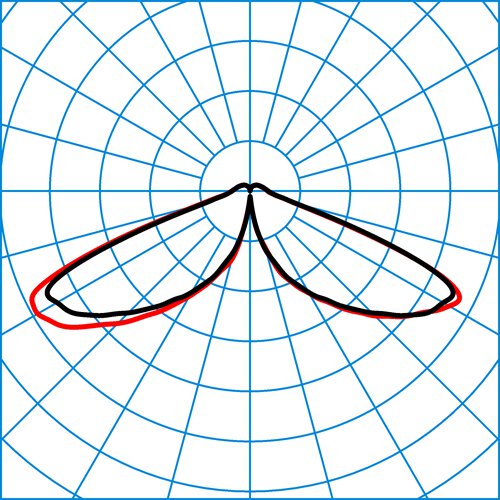

Light distribution curve: rotationally sym. wide (RB6L)
Light emission: direct
Rated luminous flux: 2200 lm
Connected load: 16,5 - 17,5 W
Service life: LCLO (25 °C) = 100,000 h
Luminous efficacy: 133 - 126 lm/W
Colour temperature: 4000 K
Colour rendering index: > 70
Protection rating: IP65

TOC: 8108040
Luminaire colour: DB703 micaceous iron oxide
Light distribution curve: rotationally sym. wide (RB6L)
Light emission: direct
Rated luminous flux: 2200 lm
Connected load: 16,5 - 17,5 W
Service life: LCLO (25 °C) = 100,000 h
Luminous efficacy: 133 - 126 lm/W
Colour temperature: 4000 K
Colour rendering index: > 70
Protection rating: IP65
Protection class: II
Impact resistance (IK): IK04
Hot wire resistance: 650 °C
Mounting type: Vertical mounted
Dimensions: Ø 170 x 2600 mm
Weight: 25,9 kg
Emergency light available: No
Mounting height H1: 2500 mm
Surface treatment: Powder coating
Material housing: Aluminium

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Underground supports

Name	Description	Weight
08800LS Earthing Unit f. Pillars 2221500	Underground support of steel, hot-dip galvanised.	20,2 kg	Add to watchlist Add to product comparison Downloads

Lighting technology

Select light distribution
