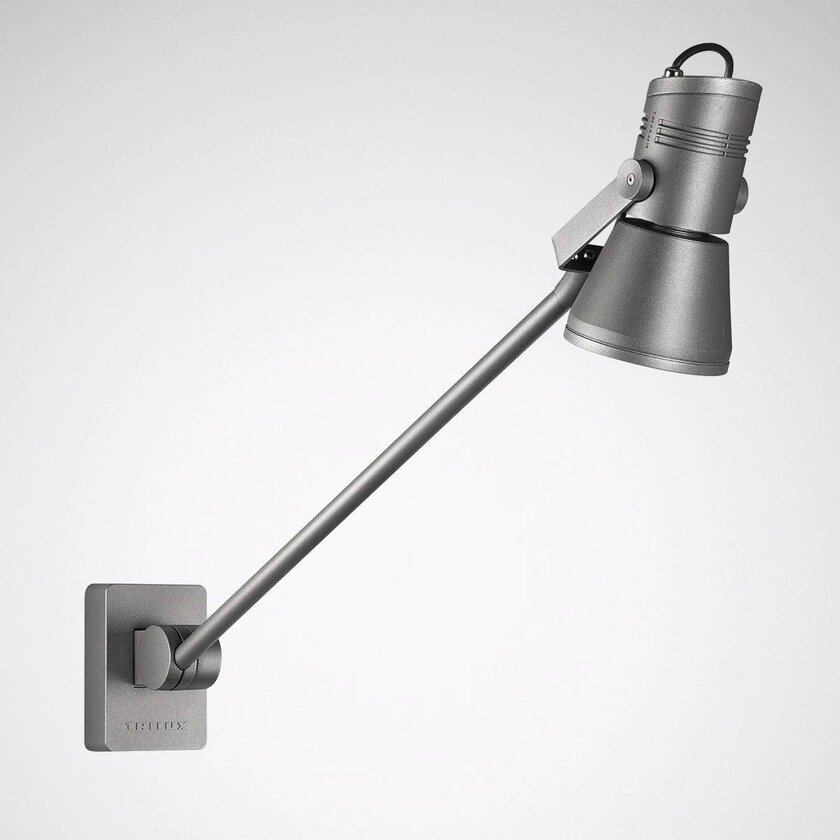

Faciella 20

Faciella 15-A RM1L/2000-830 1G1 ET

TOC: 7114840
Luminaire colour: DB703 micaceous iron oxide

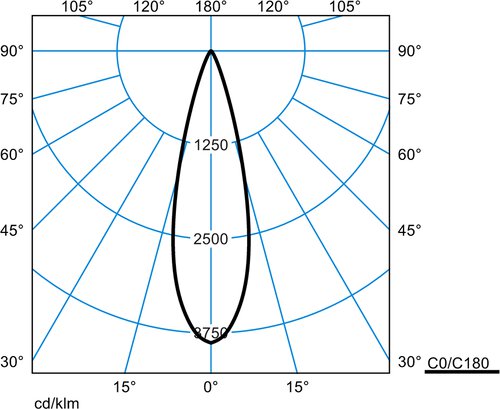

Light distribution curve: rota.asym. medium wide (RM)
Light emission: direct
Rated luminous flux: 2000 lm
Connected load: 21 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 95 lm/W
Colour temperature: 3000 K
Colour rendering index: > 80
Ingress Protection (IP) rating: IP65

TOC: 7114840
Luminaire colour: DB703 micaceous iron oxide
Light distribution curve: rota.asym. medium wide (RM)
Light emission: direct
Rated luminous flux: 2000 lm
Connected load: 21 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 95 lm/W
Colour temperature: 3000 K
Colour rendering index: > 80
Ingress Protection (IP) rating: IP65
Protection class: I
Impact resistance (IK): IK06
Hot wire resistance: 850 °C
Shape: around
Mounting type: Mastanbau, Directional mounting
Dimensions: 269 x 155 x 985 mm
Weight: 4,6 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Connectors

Name	Description	Weight
Altigo G2 Mini Connector IP68 6968300	Rapid connection system IP68,	0,03 kg	Add to watchlist Add to product comparison Downloads

Post connections

Name	Description	Weight
Faciella MB 76 7322400	Post fixing for compact projector Faciella, Ø 76 mm.	1,3 kg	Add to watchlist Add to product comparison Downloads
