Inveria

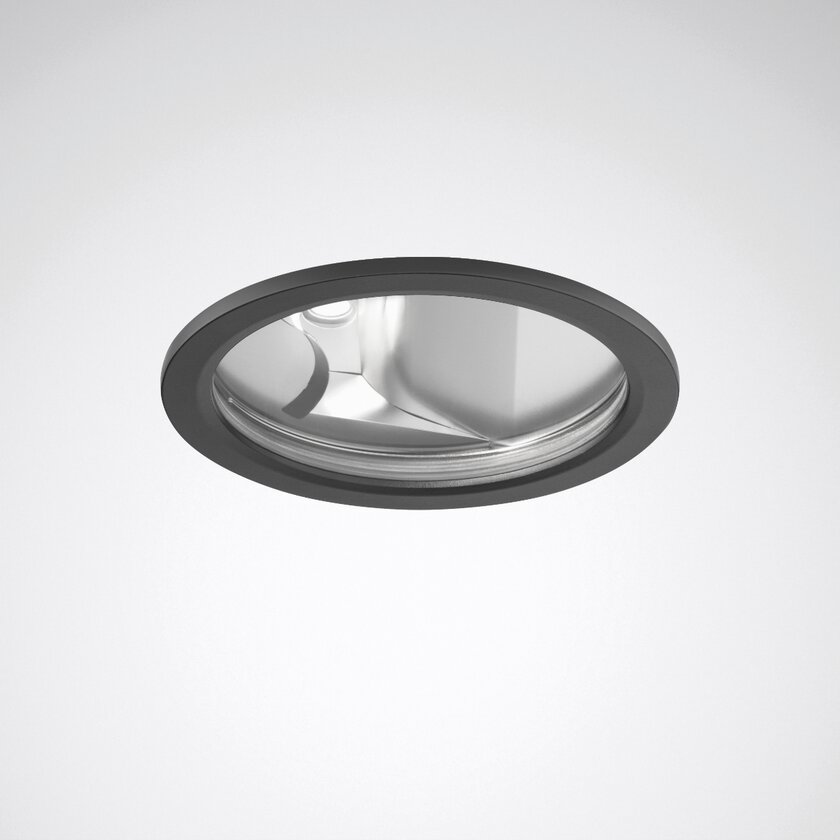

Inveria C 210 AM21R/3700-830 1G1P ETDD

TOC: 8339251
Luminaire colour: RAL9005 Jet black

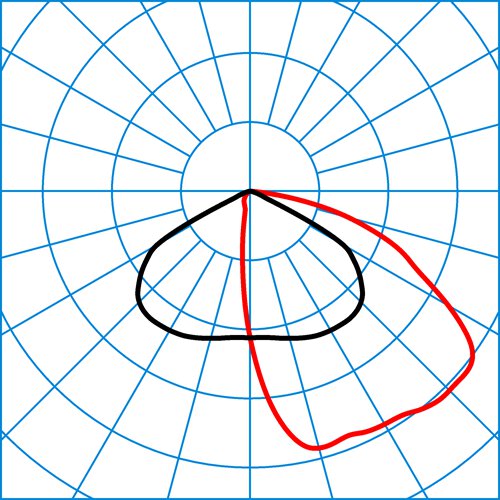

Light distribution curve: asymmetric medium wide (AM)
Light emission: direct
Rated luminous flux: 3700 lm
Connected load: 42 W
Service life: L80 (25 °C) = 60,000 h
Luminous efficacy: 88 lm/W
Colour temperature: 3000 K
Colour rendering index: > 80
Ingress Protection (IP) rating: IP65

TOC: 8339251
Luminaire colour: RAL9005 Jet black
Light distribution curve: asymmetric medium wide (AM)
Light emission: direct
Rated luminous flux: 3700 lm
Connected load: 42 W
Service life: L80 (25 °C) = 60,000 h
Luminous efficacy: 88 lm/W
Colour temperature: 3000 K
Colour rendering index: > 80
Ingress Protection (IP) rating: IP65
Protection class: II
Impact resistance (IK): IK07
Hot wire resistance: 960 °C
Shape: around
Mounting type: Recessed
Installation dimensions: Ø 191 x 115 mm
Dimensions: Ø 210 x 118 mm
Weight: 1,7 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Name	Description	Weight
VE Box IP66 600mA ET 7770340	Control gear unit as spare part. For luminaires from series Invera C 150 / C210... .	0,33 kg	Add to watchlist Add to product comparison Downloads
VE Box IP66 600mA ETDD 7770551	Control gear unit as spare part. For luminaires from series Invera C 150 / C210... .	0,33 kg	Add to watchlist Add to product comparison Downloads
Inveria C 210 BE 8362200	Concrete casting box of plastic. For luminaires from series Inveria C 210... .	1,2 kg	Add to watchlist Add to product comparison Downloads

3 from 9 accessories

Lighting technology

Select light distribution
