Jovie 70

Jovie 70I-AM3L-MLLR/75-150-730 12G1 ETDD

TOC: 7658251
Luminaire colour: DB703 micaceous iron oxide

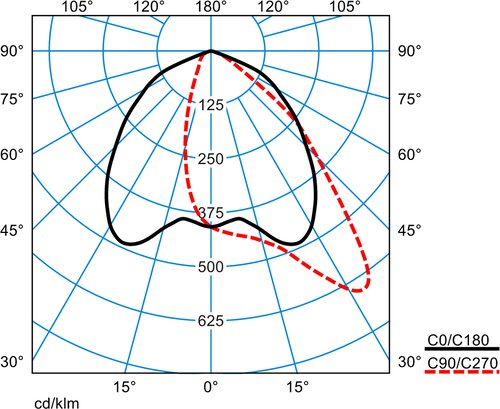

Light distribution curve: asymmetric medium wide (AM3L)
Light emission: direct
Rated luminous flux: 15000 lm
Connected load: 144 - 151 W
Service life: L80 (25 °C) = 100,000 h
Luminous efficacy: 104 - 99 lm/W
Colour temperature: 3000 K
Colour rendering index: > 70
Ingress Protection (IP) rating: IP66

TOC: 7658251
Luminaire colour: DB703 micaceous iron oxide
Light distribution curve: asymmetric medium wide (AM3L)
Light emission: direct
Rated luminous flux: 15000 lm
Connected load: 144 - 151 W
Service life: L80 (25 °C) = 100,000 h
Luminous efficacy: 104 - 99 lm/W
Colour temperature: 3000 K
Colour rendering index: > 70
Ingress Protection (IP) rating: IP66
Protection class: II
Impact resistance (IK): IK09
Hot wire resistance: 650 °C
Mounting type: Mastansatz, Mounting bracket
Dimensions: 680 x 316 x 84 mm
Weight: 9,2 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Name	Description	Weight
0970/60 Reduction Piece 2223400	Reduction piece of stainless steel. For post spigot Ø 60 mm.	0,102 kg	Add to watchlist Add to product comparison Downloads
MLT ZAH p4 6818500	Rear shielding for MLT IQ lens systems.	0,005 kg	Add to watchlist Add to product comparison Downloads
0803/2/76-200-42/180° N5° 6824200	Bracket of welded, galvanised steel tube for mounting 2 bracket-mounted luminaires. For posts with post spigot Ø 76 mm.	3,5 kg	Add to watchlist Add to product comparison Downloads

3 from 16 accessories

Lighting technology

Select light distribution
