Osido 2Q

Osido2QW-SB1L-10-827ET-GS-26

TOC: 6000538540
Luminaire colour: DB703 micaceous iron oxide

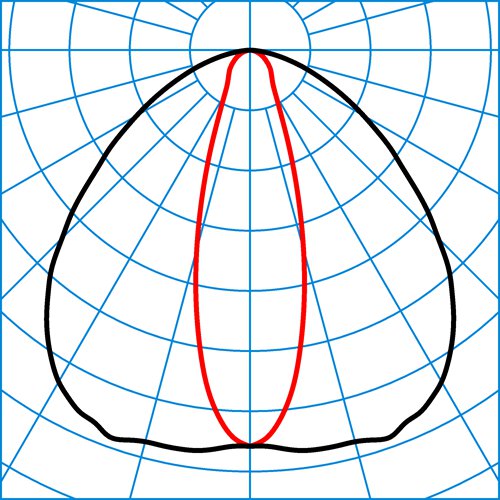

Light distribution curve: symmetric wide (SB1L)
Light emission: direct
Rated luminous flux: 1000 lm
Connected load: 8,5 W
Service life: L90 (25 °C) = 50,000 h
Luminous efficacy: 118 lm/W
Colour temperature: 2700 K
Colour rendering index: > 80
Ingress Protection (IP) rating: IP65

TOC: 6000538540
Luminaire colour: DB703 micaceous iron oxide
Light distribution curve: symmetric wide (SB1L)
Light emission: direct
Rated luminous flux: 1000 lm
Connected load: 8,5 W
Service life: L90 (25 °C) = 50,000 h
Luminous efficacy: 118 lm/W
Colour temperature: 2700 K
Colour rendering index: > 80
Ingress Protection (IP) rating: IP65
Protection class: I
Impact resistance (IK): IK06
Hot wire resistance: 960 °C
Mounting type: Surface-mounting
Dimensions: 154 x 260 x 117 mm
Weight: 3,3 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Wall mountings

Name	Description	Weight
Teleskop-Geräteträger Kaiser 1159-60 6000501900	Telescopic gear tray for wall mounting of luminaires on insulated facades. Manufacturer: Kaiser (Article number: 1159-60). Can be individually shortened to the appropriate insulation thickness via dimensional specifications on the base support. Suitable for insulation thicknesses of 80 mm - 200 mm.	0,5 kg	Add to watchlist Add to product comparison Downloads
