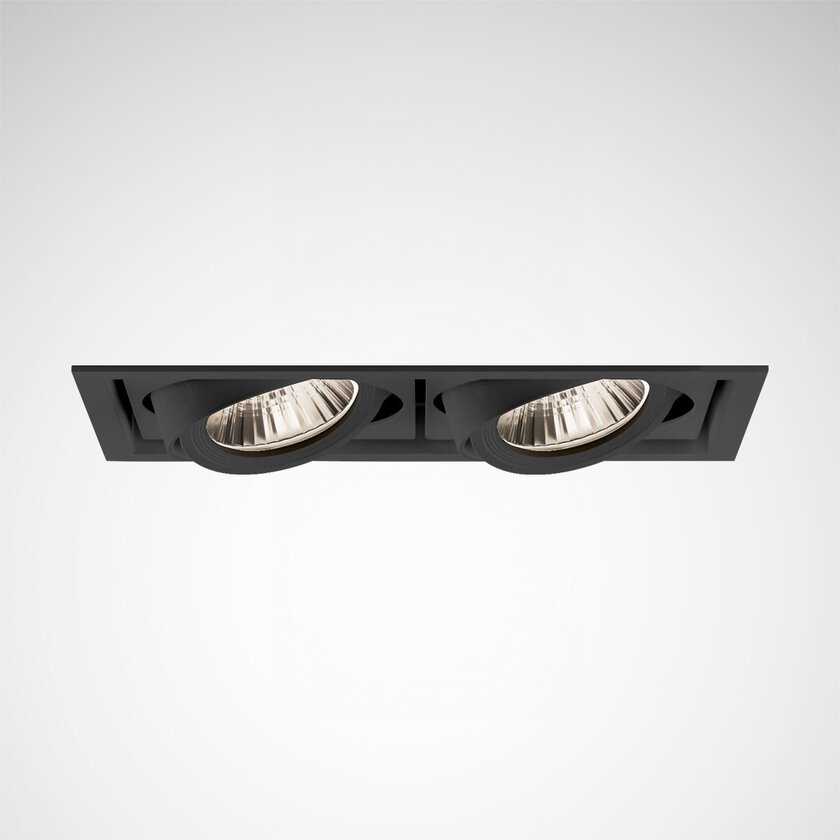

Sistema Compact Cardan

SisC 2Z RF-FL 2x30-EW M48 ET 05

TOC: 9973640
Luminaire colour: RAL9005 Jet black
Light distribution curve: Flood (FL)
Light emission: direct
Rated luminous flux: 2700 lm
Connected load: 22 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 123 lm/W
Colour temperature: 3200 K
Colour rendering index: > 90
Glare limitation: 18.3 UGR_C0
18.3 UGR_C90

TOC: 9973640
Luminaire colour: RAL9005 Jet black
Light distribution curve: Flood (FL)
Light emission: direct
Rated luminous flux: 2700 lm
Connected load: 22 W
Service life: L80 (25 °C) = 50,000 h
Luminous efficacy: 123 lm/W
Colour temperature: 3200 K
Colour rendering index: > 90
Glare limitation: 18.3 UGR_C0
18.3 UGR_C90
Ingress Protection (IP) rating: IP20
Protection rating on room side: IP20
Protection class: II
Impact resistance (IK): IK00
Shape: rectangular

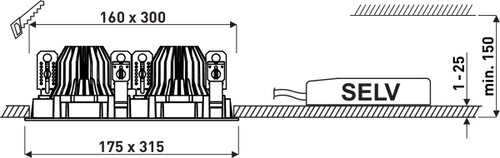

Installation dimensions: 300 x 160 x 150 mm
Dimensions: 315 x 175 x 110 mm
Weight: 2,2 kg
Emergency light available: No
