Yonos D/H

YNSx2SNS 7x65 RH1-01/01 WRFL 8-930 DD 01

TOC: 6000018251
Luminaire colour: RAL9016 Traffic white
Light distribution curve: Flood (FL)
Light emission: direct
Rated luminous flux: 1600 lm
Connected load: 22 W
Service life: L80 (25 °C) = 70,000 h
Luminous efficacy: 73 lm/W
Colour temperature: 3000 K
Colour rendering index: > 90
Glare limitation: 11.6 UGR_C0
11.6 UGR_C90

TOC: 6000018251
Luminaire colour: RAL9016 Traffic white
Light distribution curve: Flood (FL)
Light emission: direct
Rated luminous flux: 1600 lm
Connected load: 22 W
Service life: L80 (25 °C) = 70,000 h
Luminous efficacy: 73 lm/W
Colour temperature: 3000 K
Colour rendering index: > 90
Glare limitation: 11.6 UGR_C0
11.6 UGR_C90
Ingress Protection (IP) rating: IP20
Protection rating on room side: -
Protection class: I
Impact resistance (IK): IK06
Hot wire resistance: 650 °C
Shape: rectangular
Mounting type: Suspension, Surface-mounting

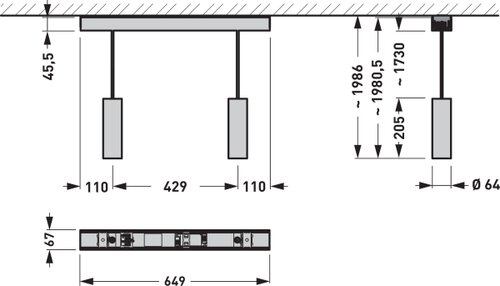

Dimensions: 649 x 67 x 683 mm
Weight: 2,5 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Lighting technology

Select light distribution

Light calculator

Light calculator

lightCalculator.image.alt

Light calculator

No downloads available for this product

Accessories list

Name	Description	Weight
YNS BE H 195 7LV-65 9002406917	Slender base element for suspended mounting. Length of base element 2310 mm.	2,132 kg	Add to watchlist Add to product comparison Downloads
YNS BE H 195 5LV-65 9002406903	Slender base element for suspended mounting. Length of base element 2310 mm.	2,066 kg	Add to watchlist Add to product comparison Downloads
YNS BE D 260 5LV-32 9002406947	Slender base element for ceiling surface-mounting. Length of base element 2660 mm.	2,872 kg	Add to watchlist Add to product comparison Downloads

3 from 83 accessories
