Lumantix Laterne (LTX L)

LTX LT-RB6L-LR/2600-730 3G1 ET

TOC: 7305040
Luminaire colour: DB703 micaceous iron oxide

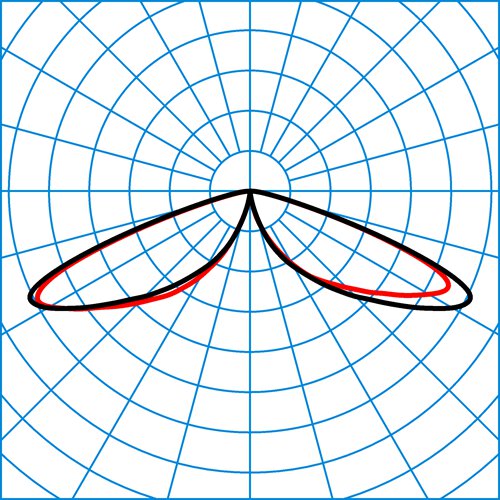

Light distribution curve: rotationally sym. wide (RB6L)
Light emission: direct
Rated luminous flux: 2600 lm
Connected load: 22 - 23 W
Service life: L80 (35 °C) = 100,000 h
Luminous efficacy: 118 - 113 lm/W
Colour temperature: 3000 K
Colour rendering index: > 70
Protection rating: IP65

TOC: 7305040
Luminaire colour: DB703 micaceous iron oxide
Light distribution curve: rotationally sym. wide (RB6L)
Light emission: direct
Rated luminous flux: 2600 lm
Connected load: 22 - 23 W
Service life: L80 (35 °C) = 100,000 h
Luminous efficacy: 118 - 113 lm/W
Colour temperature: 3000 K
Colour rendering index: > 70
Protection rating: IP65
Protection class: II
Impact resistance (IK): IK10
Hot wire resistance: 0 °C
Mounting type: Mounting bracket
Dimensions: Ø 600 x 605 mm
Weight: 8 kg
Emergency light available: No
Mounting height H1: 5000 mm
Surface treatment: Powder coating
Material housing: Aluminium

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Name	Description	Weight
0980/60 Reduction piece 2223500	Reduction piece of die-cast aluminium.	0,5 kg	Add to watchlist Add to product comparison Downloads
0802KÜ/2 junction box 2218100	Junction box.	0,5 kg	Add to watchlist Add to product comparison Downloads
0802KÜ/3 junction box 2218200	Junction box.	0,8 kg	Add to watchlist Add to product comparison Downloads

3 from 8 accessories

Lighting technology

Select light distribution
