Lumantix Pilz (LTX P)

LTX P-RB6C-LRA/2600-730 4G1 ETDD

TOC: 9448451
Luminaire colour: DB703 micaceous iron oxide

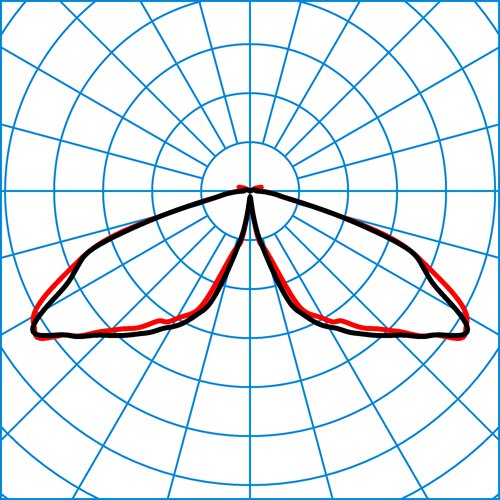

Light distribution curve: rota.sym. wide beam(RB6C)
Light emission: direct
Rated luminous flux: 2600 lm
Connected load: 19,5 - 20 W
Service life: L80 (35 °C) = 100,000 h
Luminous efficacy: 133 - 130 lm/W
Colour temperature: 3000 K
Colour rendering index: > 70
Ingress Protection (IP) rating: IP65

TOC: 9448451
Luminaire colour: DB703 micaceous iron oxide
Light distribution curve: rota.sym. wide beam(RB6C)
Light emission: direct
Rated luminous flux: 2600 lm
Connected load: 19,5 - 20 W
Service life: L80 (35 °C) = 100,000 h
Luminous efficacy: 133 - 130 lm/W
Colour temperature: 3000 K
Colour rendering index: > 70
Ingress Protection (IP) rating: IP65
Protection class: II
Impact resistance (IK): IK07
Hot wire resistance: 650 °C
Mounting type: Mounting bracket
Dimensions: Ø 570 x 605 mm
Weight: 7,5 kg
Emergency light available: No
Light management system: -

Product description
Tender text with leading brand
Tender text
Downloads

No downloads available for this product

Accessories list

Name	Description	Weight
0980/60 Reduction piece 2223500	Reduction piece of die-cast aluminium.	0,5 kg	Add to watchlist Add to product comparison Downloads
MLT ZAH p4 6818500	Rear shielding for MLT IQ lens systems.	0,005 kg	Add to watchlist Add to product comparison Downloads
0802KÜ/4 DALI 7918600	Junction box of glass fibre-reinforced polycarbonate. Length 180 mm, Width 82 mm, height 66 mm.	0,2 kg	Add to watchlist Add to product comparison Downloads

3 from 6 accessories

Lighting technology

Select light distribution
