When intelligence comes to light

The LiveLink Premium system is optionally available in the form of prefabricated packages – the Server Kits as a basic system and the Extension Kits for expanding the system. Server and Extension Kits are installed in a housing ready for connection. All components are already mounted and wired on a DIN rail. In addition to connecting the control cables (DALI bus) of the DALI lines to the gateways, only the power supply and, if necessary, a higher-level Ethernet need to be connected to the server.

Clever sensor technology enables daylight-dependent control and presence-based control, thus enabling high energy-saving potential. Automatic switch-off and an adjustable general light level also contribute to a sustainable lighting system.

With suitable luminaires, a change in colour temperature according to the time of day can simulate natural daylight in the building, improving performance and concentration. The HCL curve required for this is pre-installed.

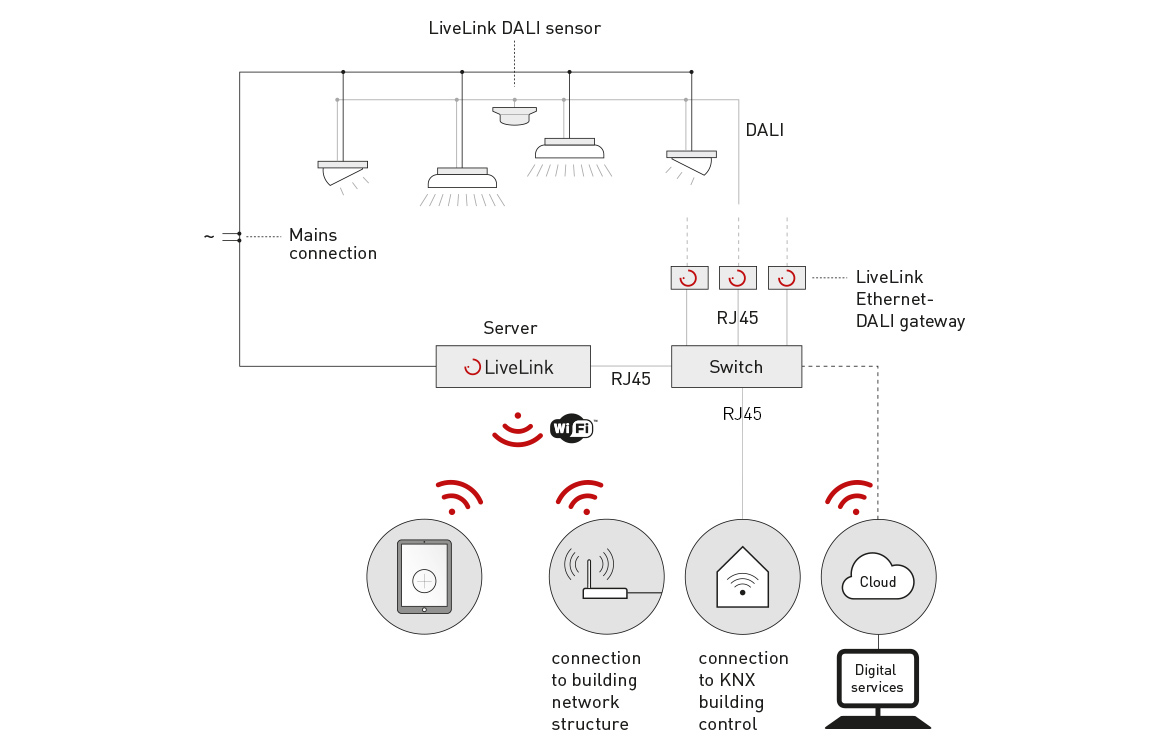

LiveLink Premium is based on the combination of a network server with one or more DALI/Ethernet gateways. A gateway has connections for 2 DALI lines, each of which can be used to connect 64 DALI devices. Additional Ethernet switches can be cascaded so that installations with an unlimited number of DALI devices can be realised. In addition to the DALI luminaires, control and operating elements such as LiveLink DALI PB4 push-button couplers and LiveLink DALI sensors can also be connected. For the given installation, the server acts as a central control device that combines the DALI devices on the DALI lines of all gateways in a higher-level system. Depending on the performance of the server, an almost unlimited number of luminaires can be controlled.

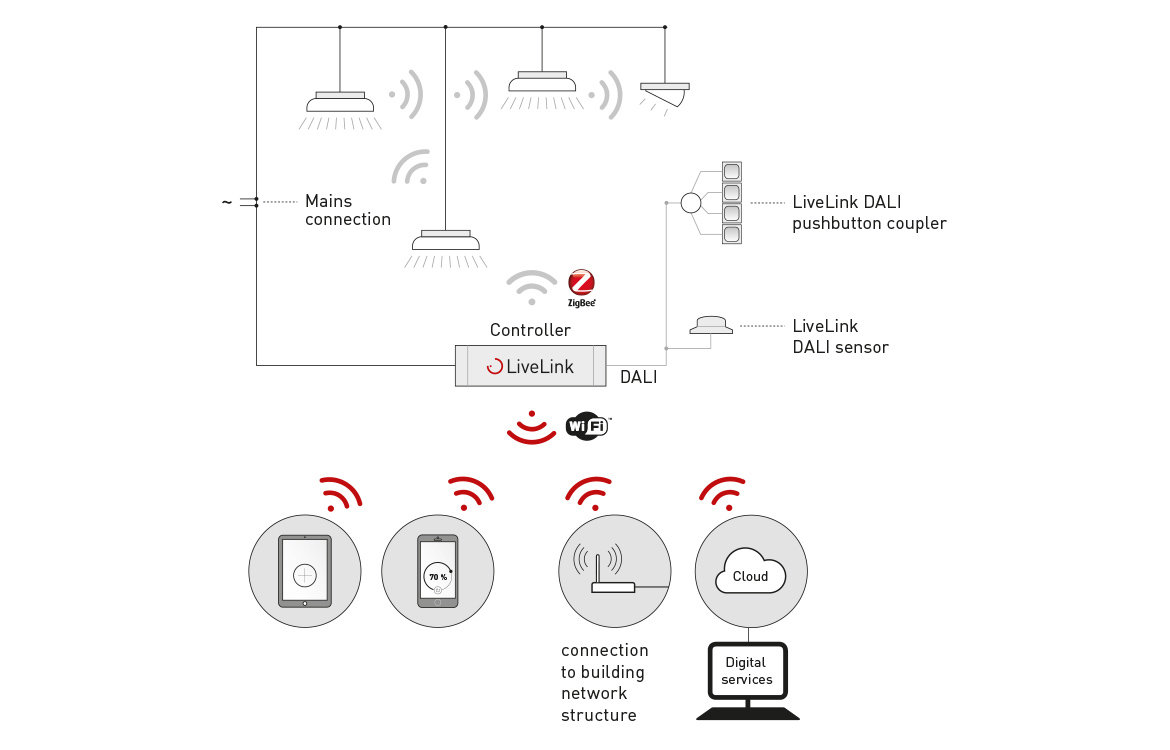

LiveLink WiFi | LAN DR only requires 5-core wiring to control luminaires. Sensors and push-buttons are integrated exclusively via DALI; an additional mains connection is not required. In the LiveLink ONE app, the lighting can be divided into luminaire groups and the assignment of sensors and push-buttons can be modified and adapted to the specific situations.

LiveLink WiFi | LAN DR is ready for operation and fully functional from the very first start. All system devices are automatically recognised and sensor functions such as motion detection and constant light control are preconfigured and active. The lighting can be switched and dimmed via connected push-buttons. If HCL-capable luminaires are present in the installation, the TRILUX HCL curve is also already activated. This means the system saves energy from the first time it is switched on and is ready to use by all users.

With suitable luminaires, a change in colour temperature according to the time of day can simulate natural daylight in the room and thus increase well-being, performance and concentration. The HCL curve needed for this is already pre-installed in LiveLink WiFi | LAN DR. The colour temperature can also be adjusted manually with the LiveLink ONE app.

The LiveLink ONE app opens up the whole world of light management with a single click. The entire system is automatically fully functional – and can then be easily adapted to the individual project using the app. Even complex lighting systems can be configured and controlled especially easily.

With the LiveLink ONE app, LiveLink WiFi | LAN DR can be set up for control across several rooms. This not only enables individual control of single rooms, groups and zones within the system, but also central control commands across all rooms. This optimised utilisation of the DALI line saves costs and optimises the commissioning time.

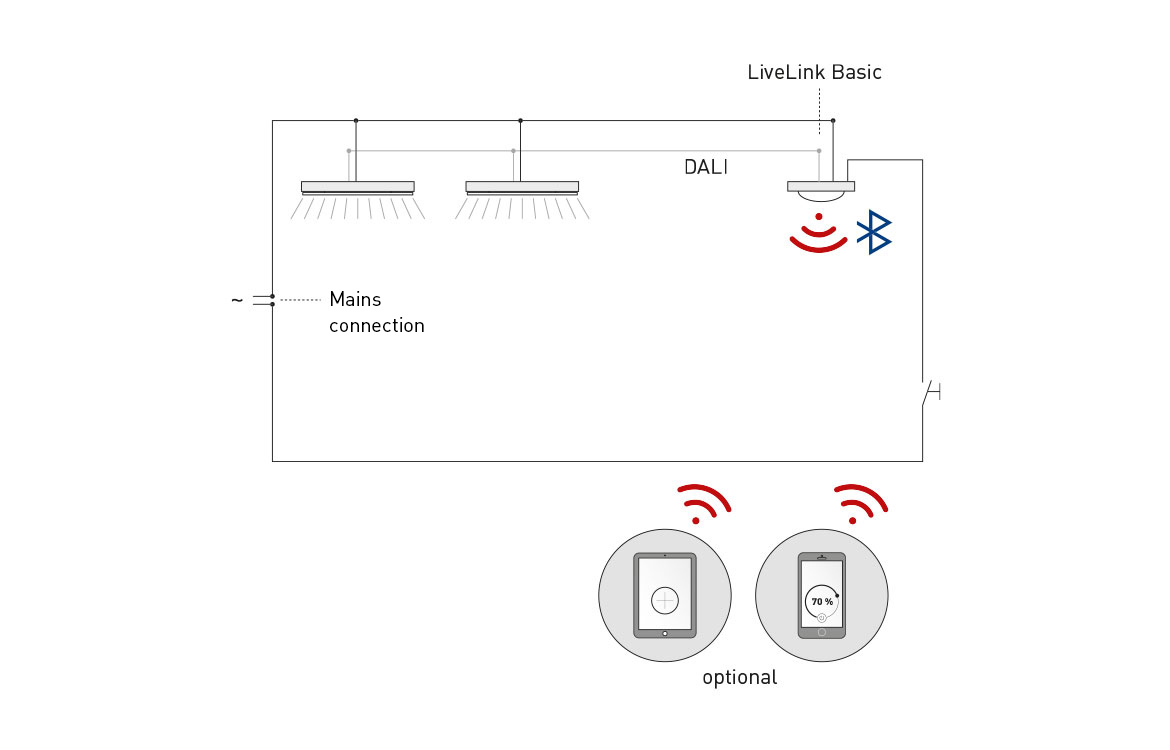

LiveLink Basic is a DALI-based light management system that combines control unit and sensors in a single device in very compact spaces. It only requires 5-core wiring (mains connection and DALI) to control the luminaires. Only one cable harness is needed for the entire installation. This makes planning and installation simple, fast and reliable.

LiveLink Basic is ready for operation and fully functional from the very first start. An automatic calibration process couples, configures and activates daylight-dependent control and motion detection. This means the system saves energy from the very first time it is switched on.

The lighting can be controlled either fully automatically via presence / daylight control and a standard push-button or conveniently via Bluetooth® and the LiveLink Basic app on a smartphone or tablet PC.

The sensors integrated into the luminaires communicate with each other and, with the pre-running light, offer the ideal solution for stairwells, corridors, hallways or parking garages. At the same time, the swarm function ensures efficiency and high energy savings because it only provides light where needed.

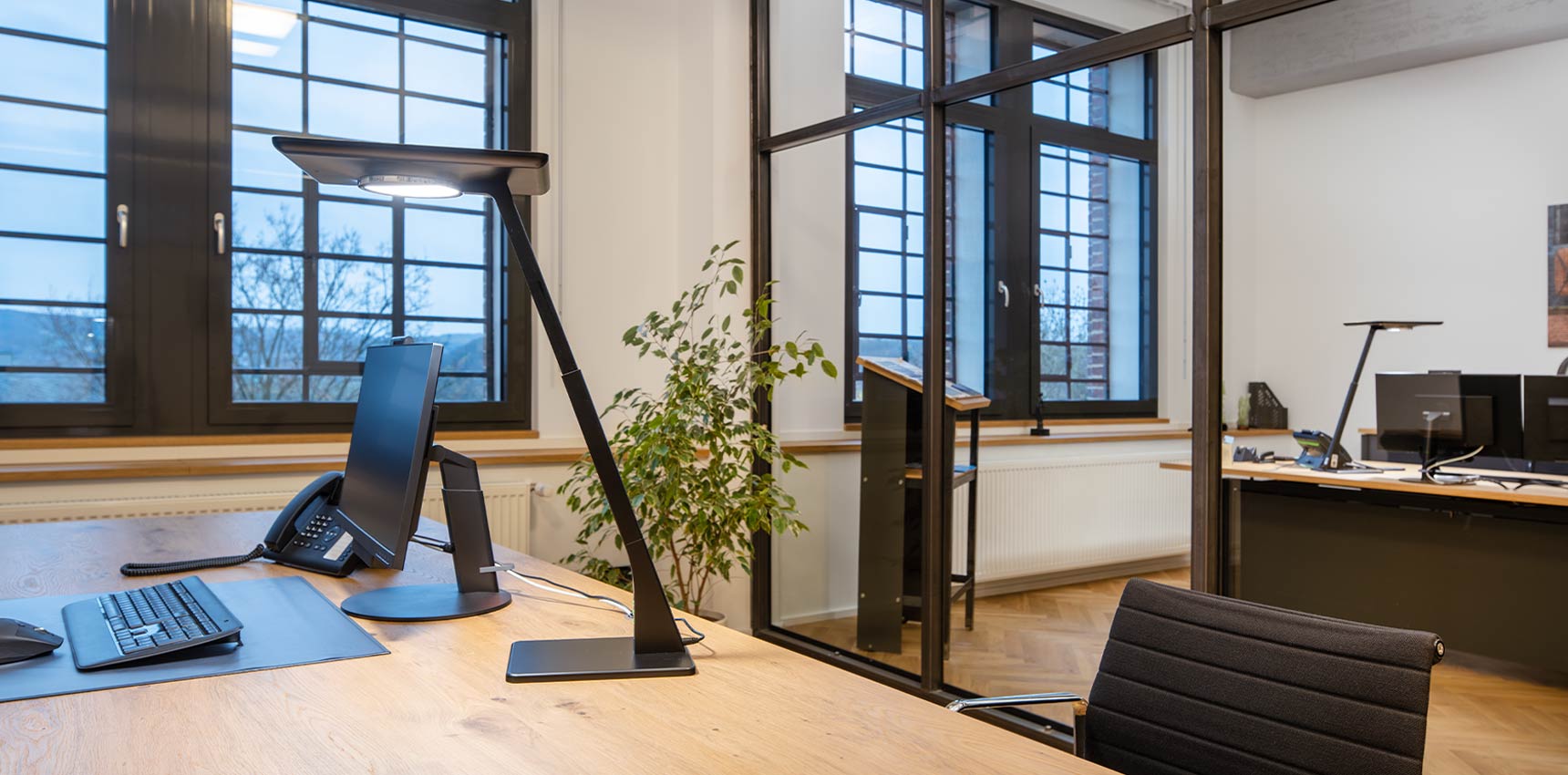

TRILUX desktop and standing luminaires with integrated LiveLink Workplace control can be wirelessly networked and grouped together. The required illuminance is distributed among the group devices. The networking option thus reduces the required lumen output of the individual luminaires while maintaining the same lighting level – this saves energy and also increases the service life of the luminaires.

The integrated sensor system controls the direct and indirect lighting components independently of each other. If the luminaires are networked with each other, when a person enters a room the general lighting can first be switched on via the indirect components before the individual workstation is illuminated: an example of how sustainable lighting concepts can be conveniently implemented with LiveLink Workplace.
