> Indoor lighting / Specific lighting requirements / Lighting of public areas / Photometric requirements according to EN 12464-1

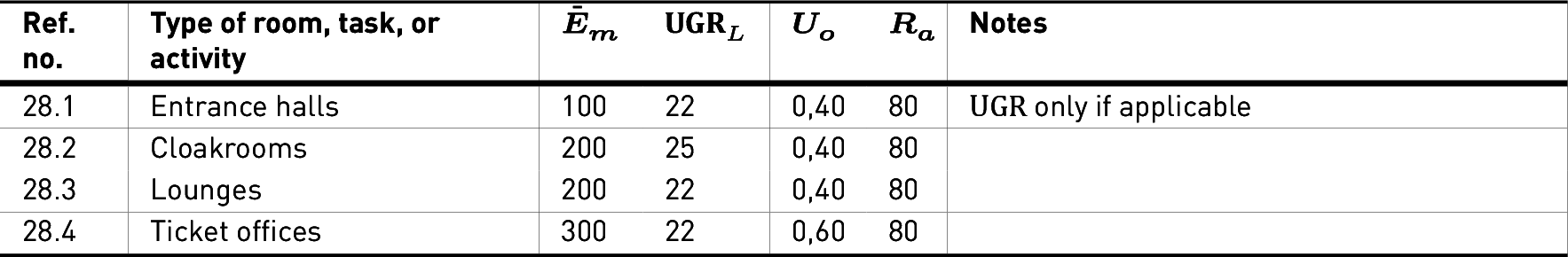

Table 3.113: Photometric requirements for general areas processing according to EN 12464-1

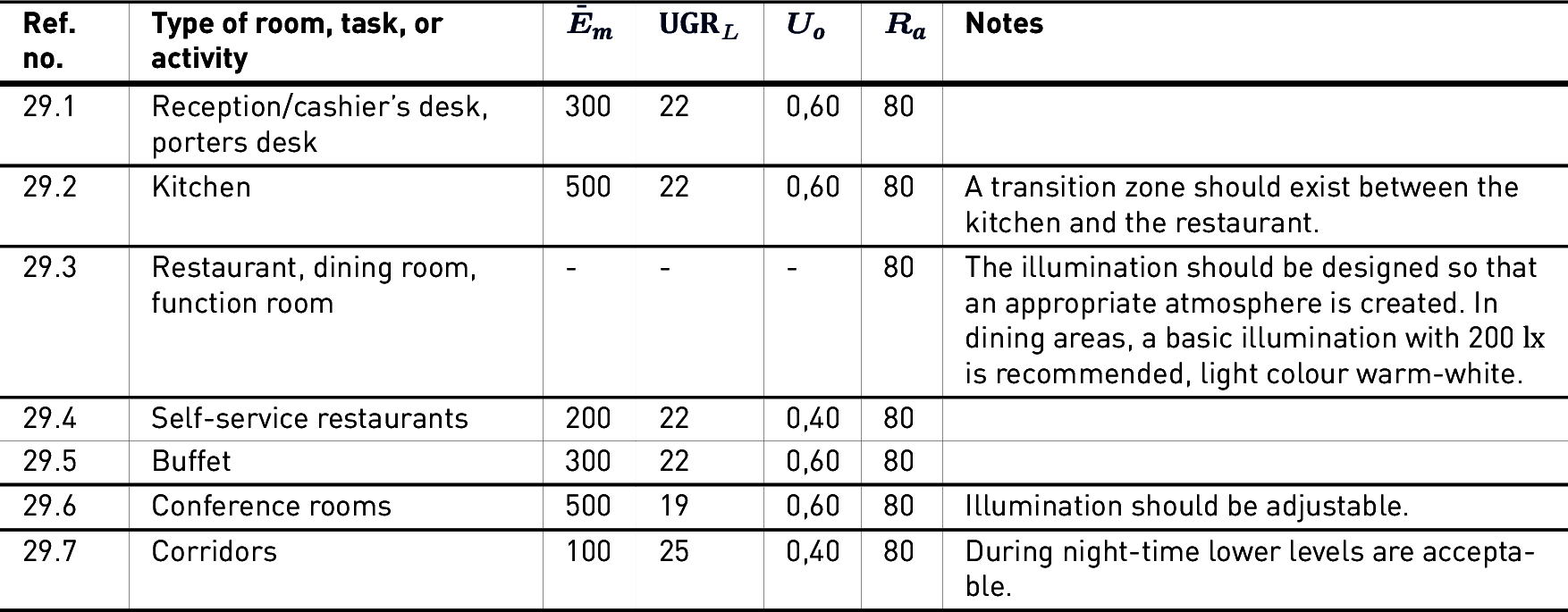

Table 3.114: Photometric requirements for restaurants according to EN 12464-1

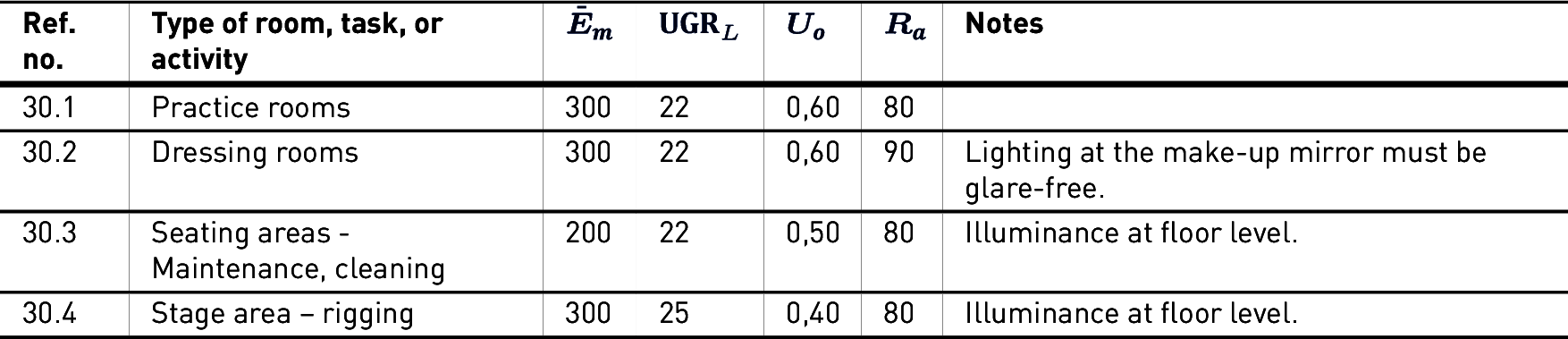

<meta charset="UTF-8" />Table 3.115: Photometric requirements for theatres according to EN 12464-1

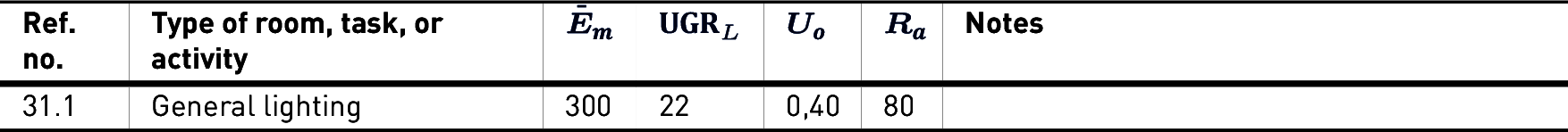

Table 3.116: Photometric requirements for trade fairs according to EN 12464-1

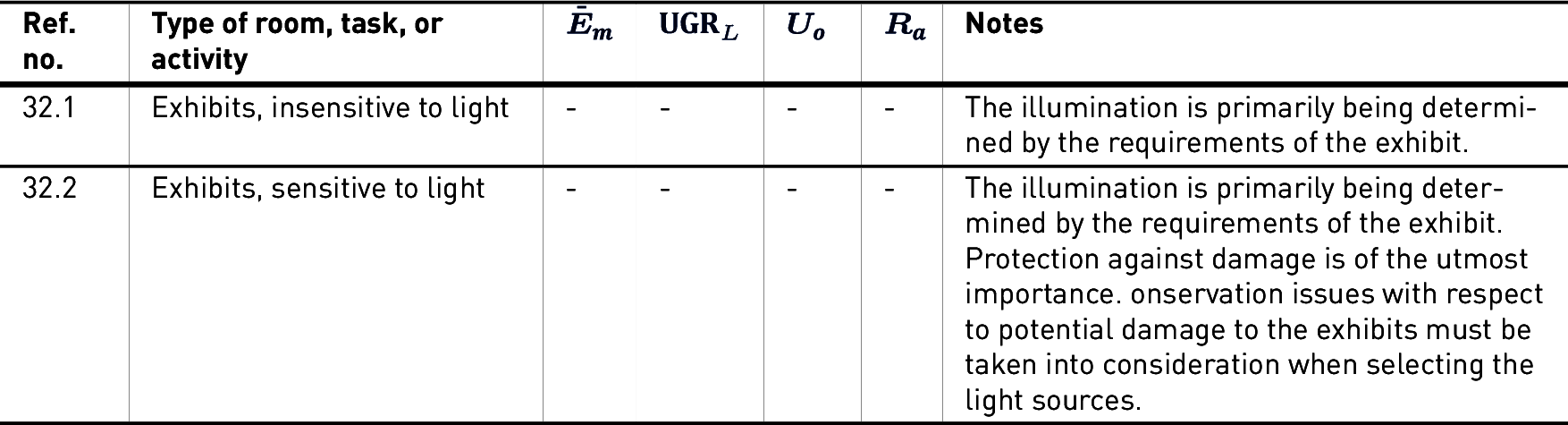

Table 3.117: Photometric requirements for museums according to EN 12464-1

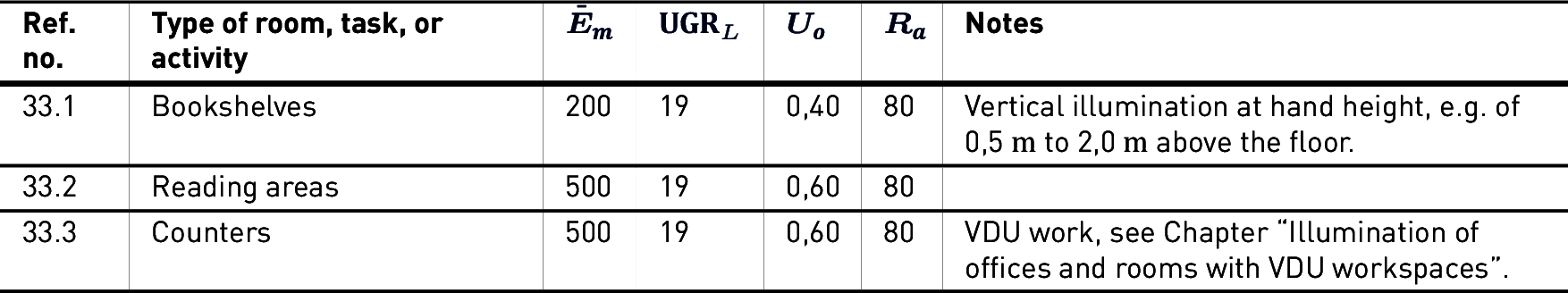

Table 3.118: Photometric requirements for libraries according to EN 12464-1
See also chapter "Luminaire selection tables".
