> Indoor lighting / Specific lighting requirements / Lighting of further indoor spaces / Photometric requirements according to EN 12464-1

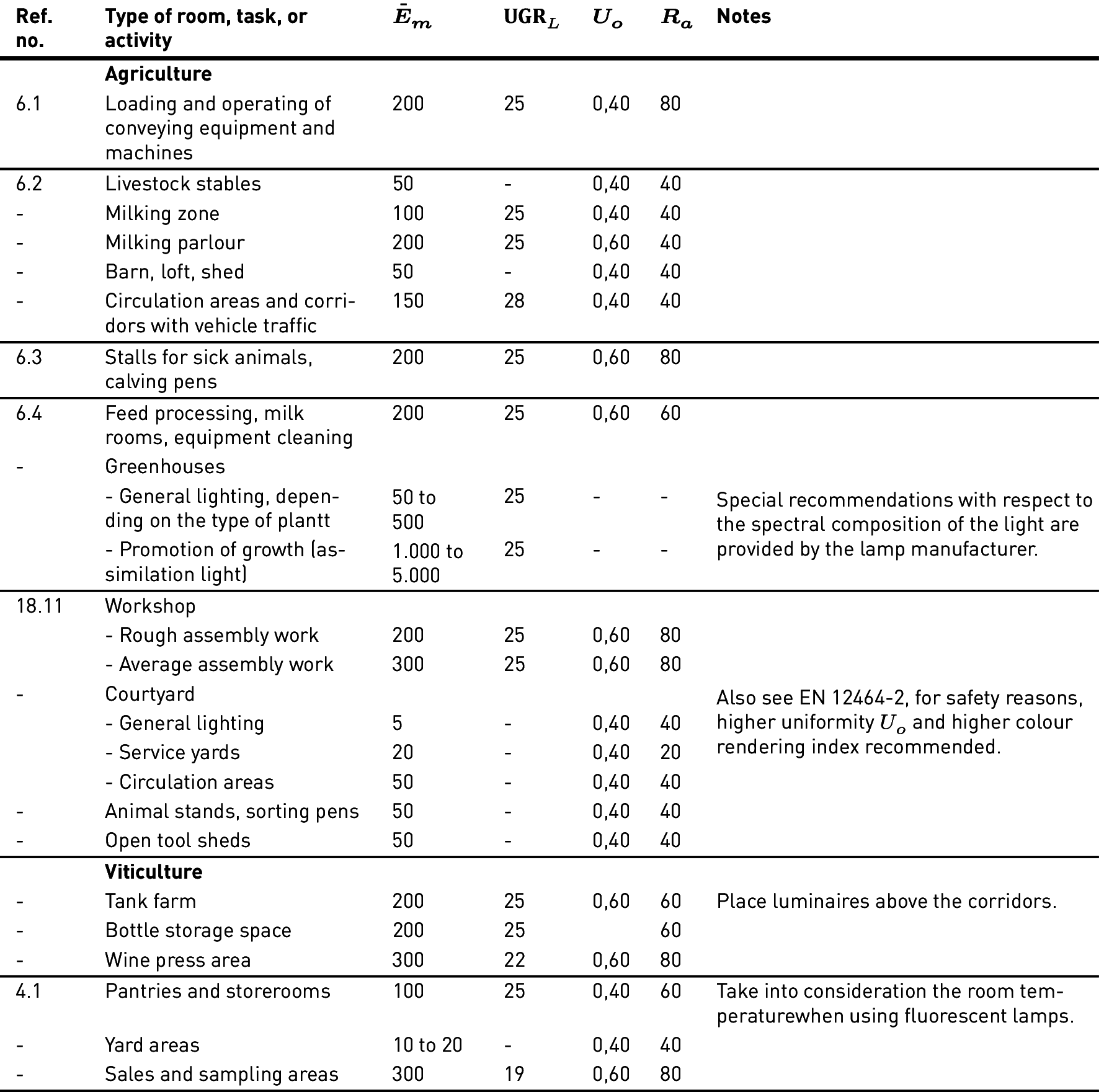

Table 3.131: Photometric requirements for agricultural manufacturing plants according to EN 12464-1
(see also chapter "Luminaire selection tables")

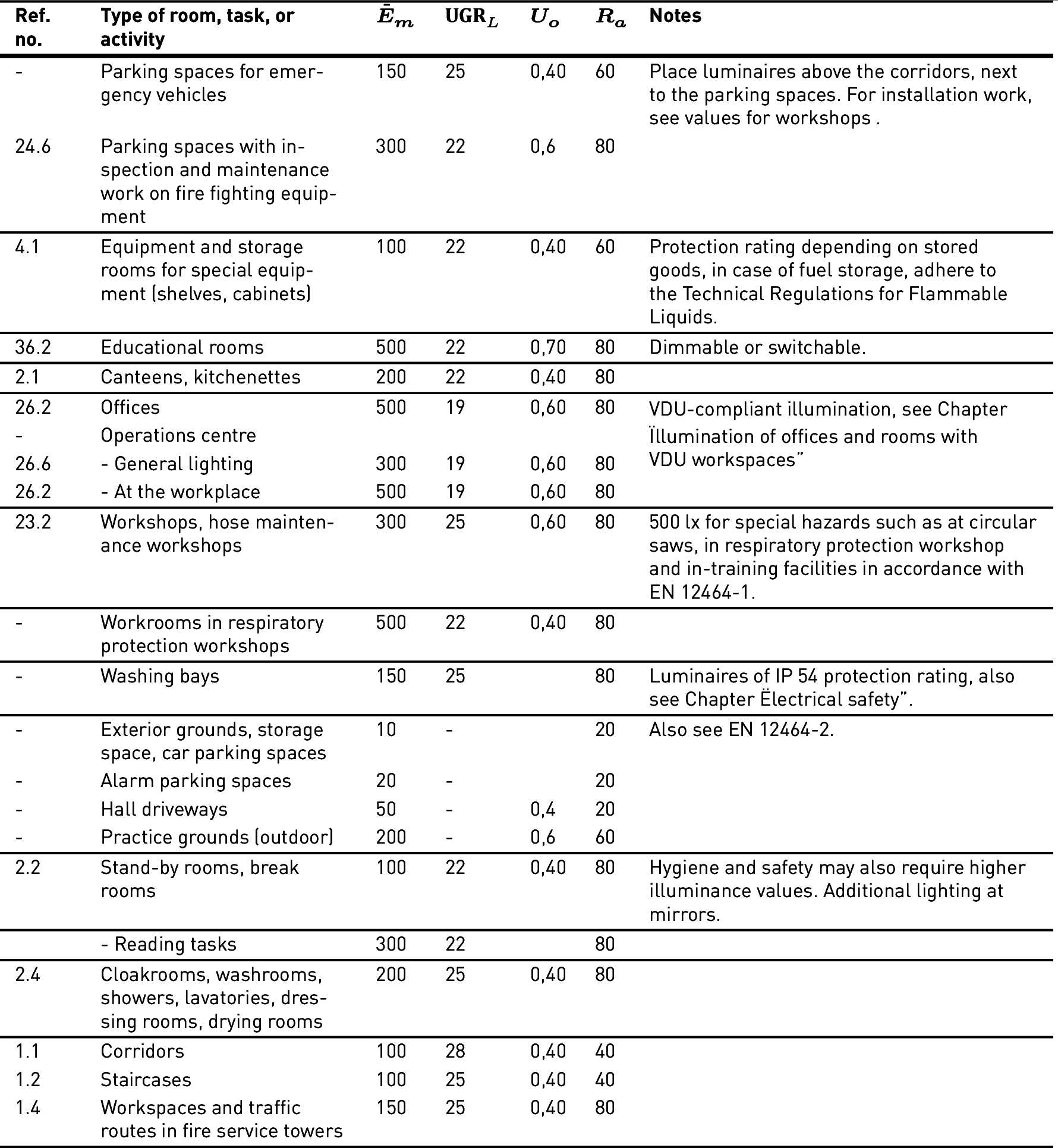

Table 3.132: Photometric requirements for fire stations according to DIN EN 12464-1
