> Indoor lighting / Specific lighting requirements / Lighting of traffic zones and general areas in buildings / Photometric requirements according to EN 12464-1
Traffic zones inside buildings Rest, sanitation and first aid rooms Control rooms Store rooms, cold stores (High bay/) Storage rack areas

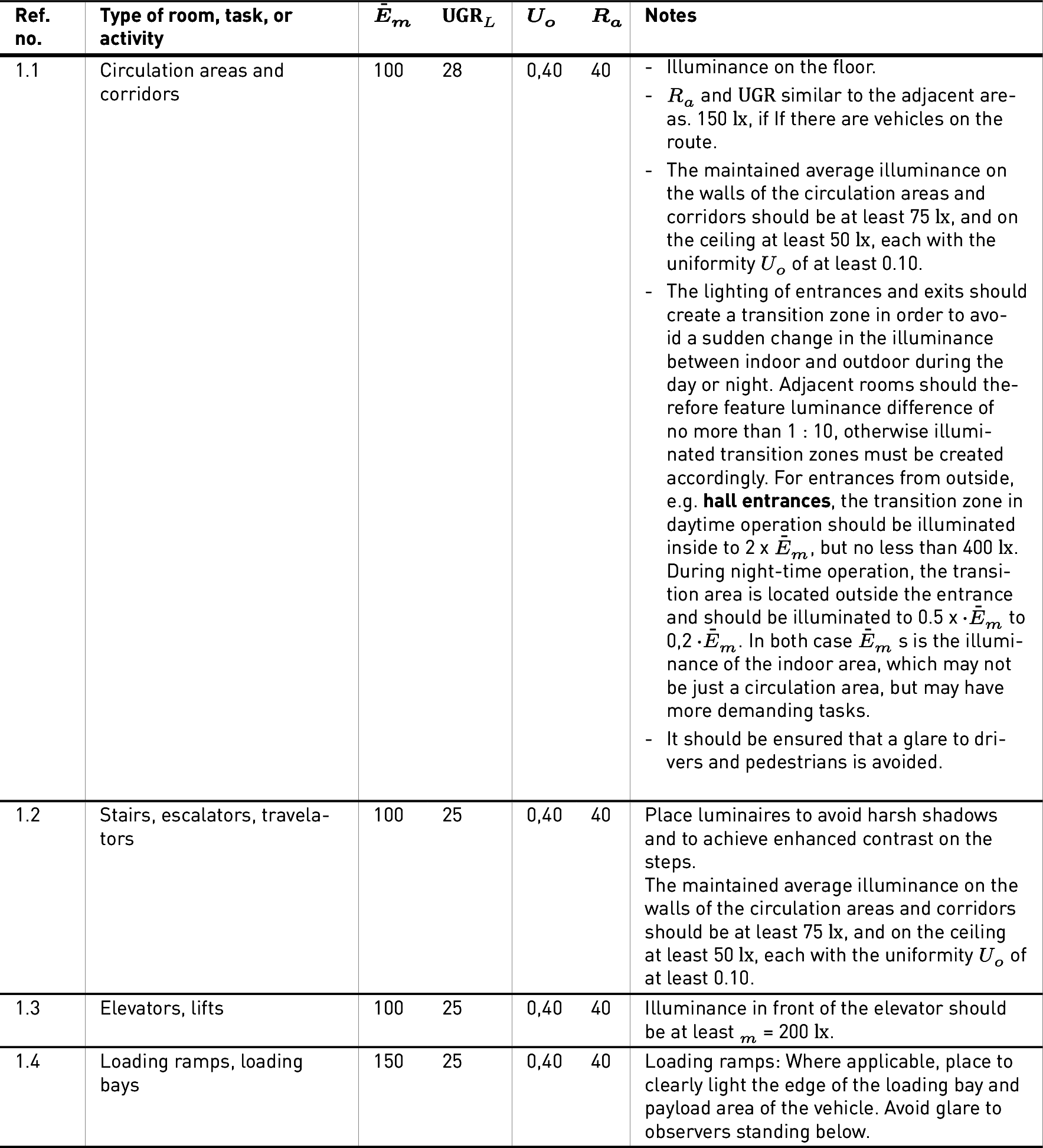

Table 3.44: Photometric requirements for traffic zones according to EN 12464 (see also chapter "Luminaire selection tables")

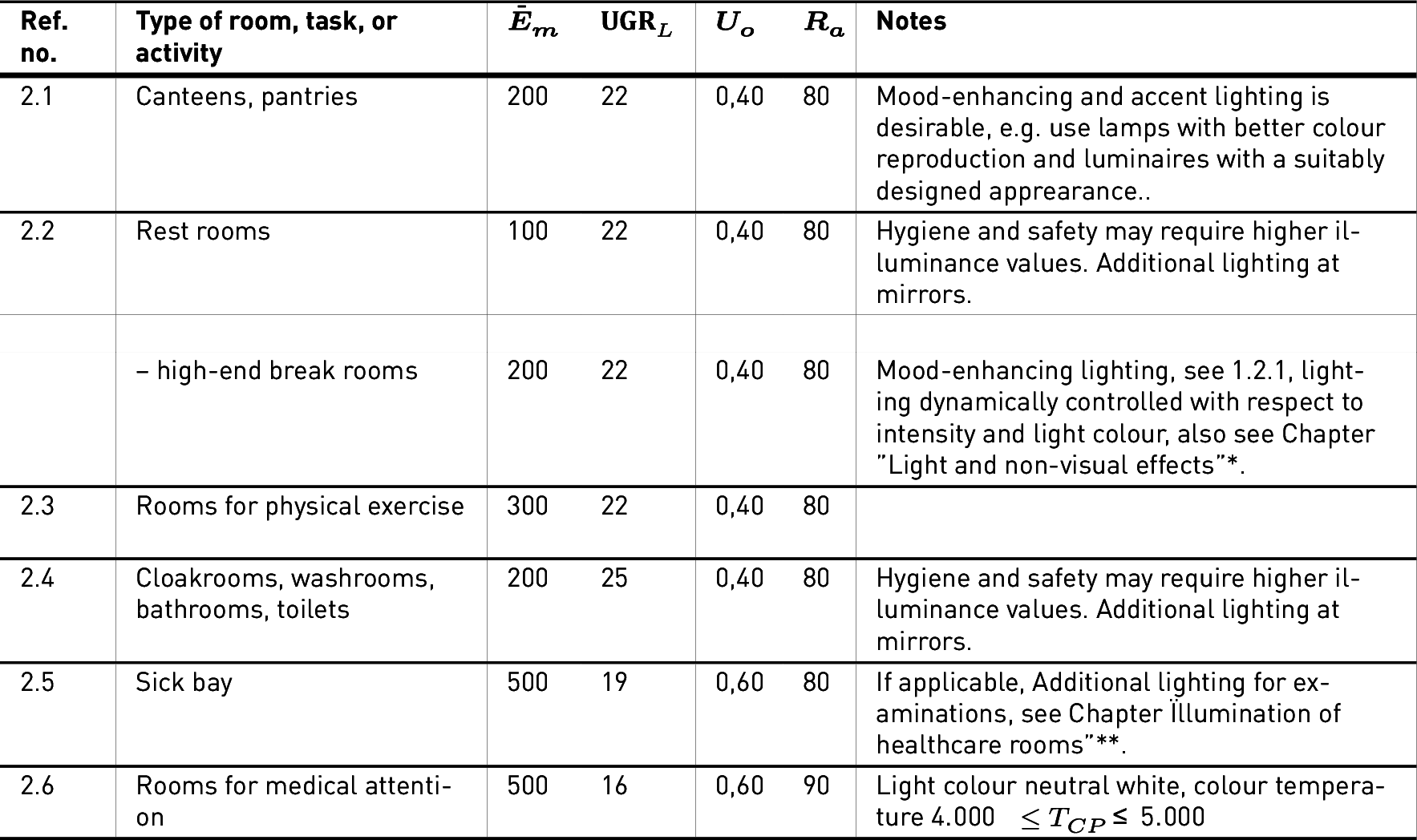

Table 3.45: Photometric requirements for rest rooms, sanitation and first aid rooms according to EN 12464 (see also chapter "Luminaire selection tables")

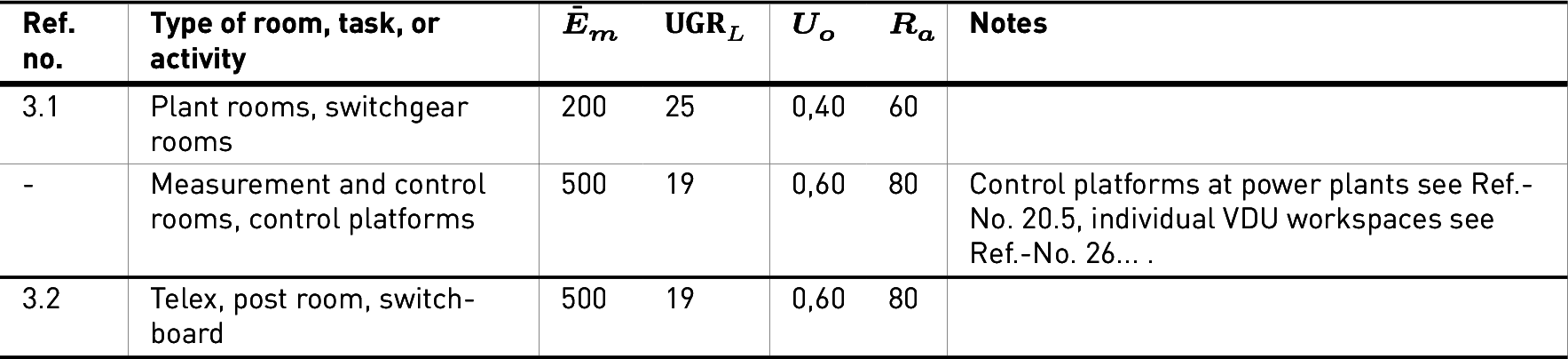

Table 3.46: Photometric requirements for control rooms according to EN 12464 (see also chapter "Luminaire selection tables")
Table 3.47: Photometric requirements for Store rooms and cold stores according to EN 12464 (see also chapter "Luminaire selection tables")

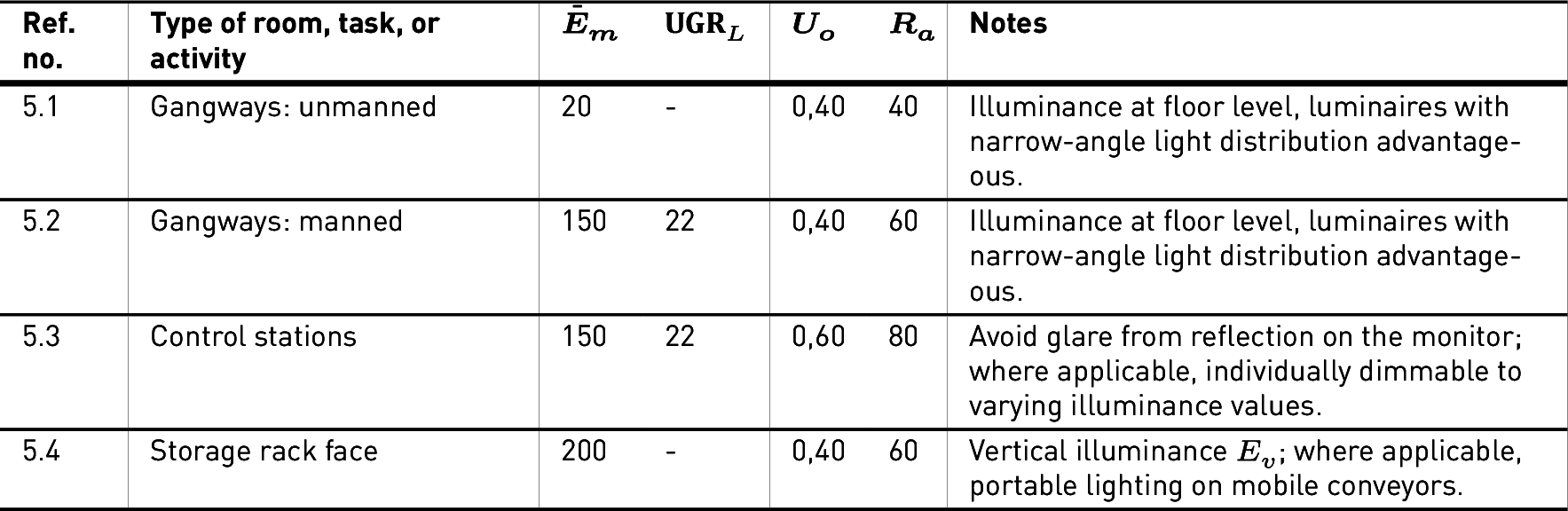

Table 3.48: Photometric requirements for (highbay) racking according to EN 12464-1
Storage rooms and cold stores Lighting of industrial activities and crafts
Traffic zones Break rooms, sanitary rooms and first-aid rooms Control rooms Storage rooms and cold stores Photometric requirements according to EN 12464-1
